Powering On the Switch
80
Powering On an AC Switch
To power on an AC switch, connect the power cords to the connectors on
the back panels and to appropriate power sources. The AT-FS970M/
24PS, AT-FS970M/24F, AT-FS970M/48PS, AT-FS970M/16F8-LC, and
AT-FS970M/16F8-SC Switches have two power supplies with separate
connectors. The AT-FS970M/24C, AT-FS970M/24LPS, AT-FS970M/48,
and 8-port switches have one power supply. Refer to Figure 33.

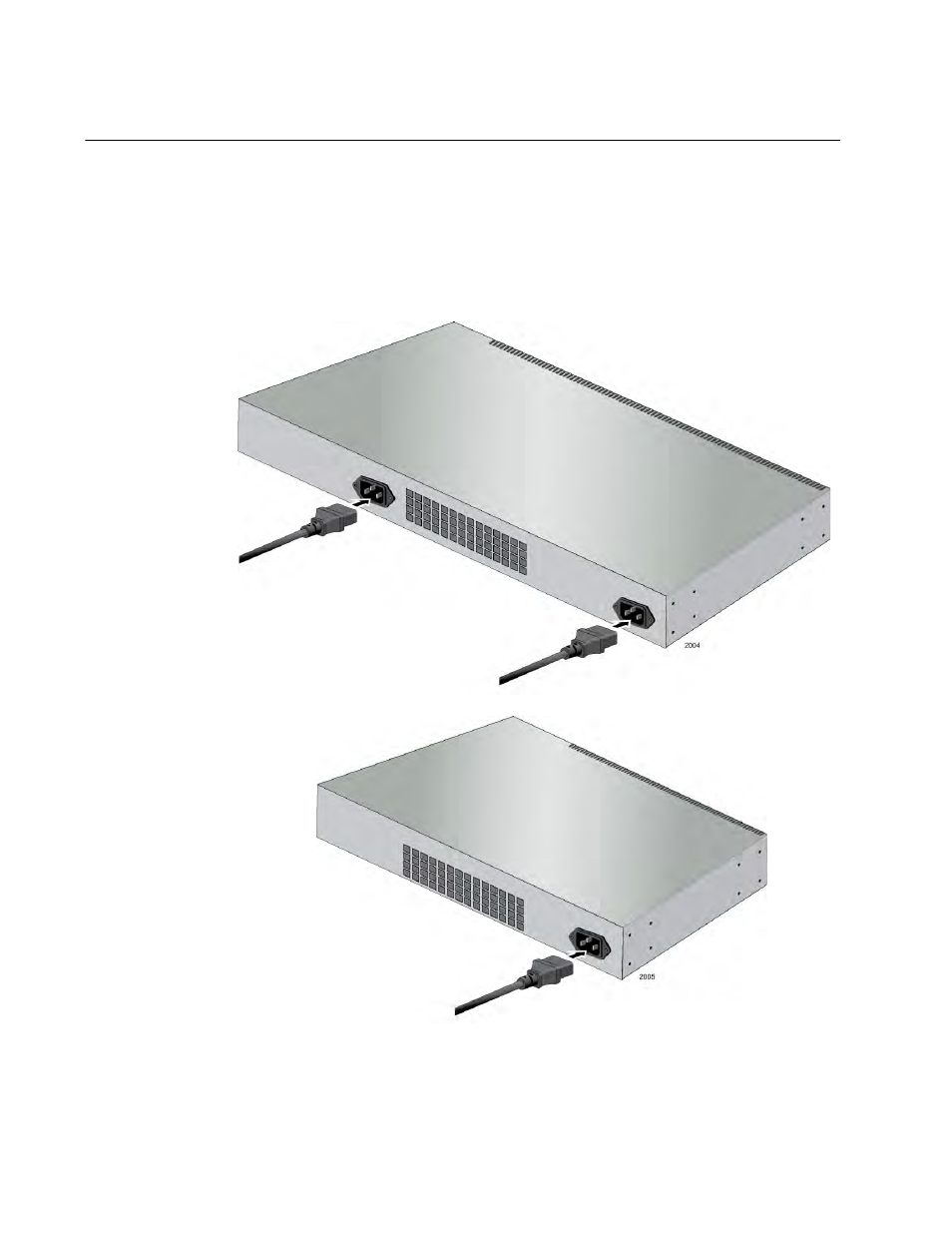

Figure 33. Plugging in the AC Power Cord
