Page 75
FS970M Series Installation Guide
75

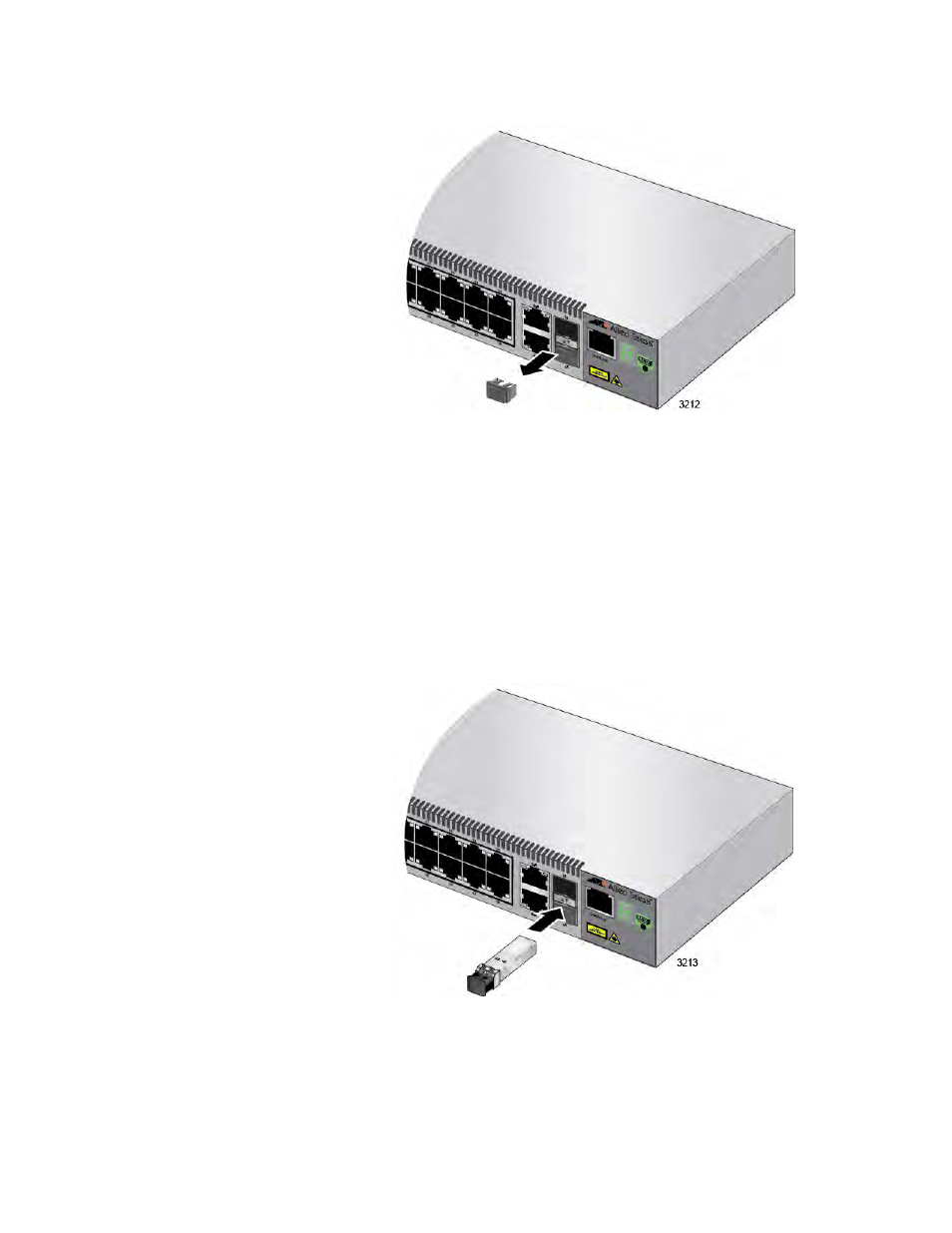

Figure 28. Removing the Dust Plug from an SFP Slot
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. If you are installing the transceiver in the top SFP slot, position the
transceiver with the Allied Telesis label facing up. If you are installing
the transceiver in the bottom slot, position the transceiver with the label
facing down.
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 29. Installing an SFP Transceiver
5. Remove the dust cover from the module, as shown in Figure 30 on
