Attaching the equipment rack brackets – Allied Telesis FS970M Series User Manual
Page 66
Installing the Switch on a Table or in an Equipment Rack
66
3. Turn the switch over.
4. For all switches except the AT-FS970M/8, AT-FS970M/8PS,
AT-FS970M/8PS-E, and AT-FS970M/24C Switches, secure the two
rack mount brackets to the sides of the switch using the eight bracket
screws included with the unit. Figure 23 here and Figure 24 on page
67 illustrate the four possible bracket positions.

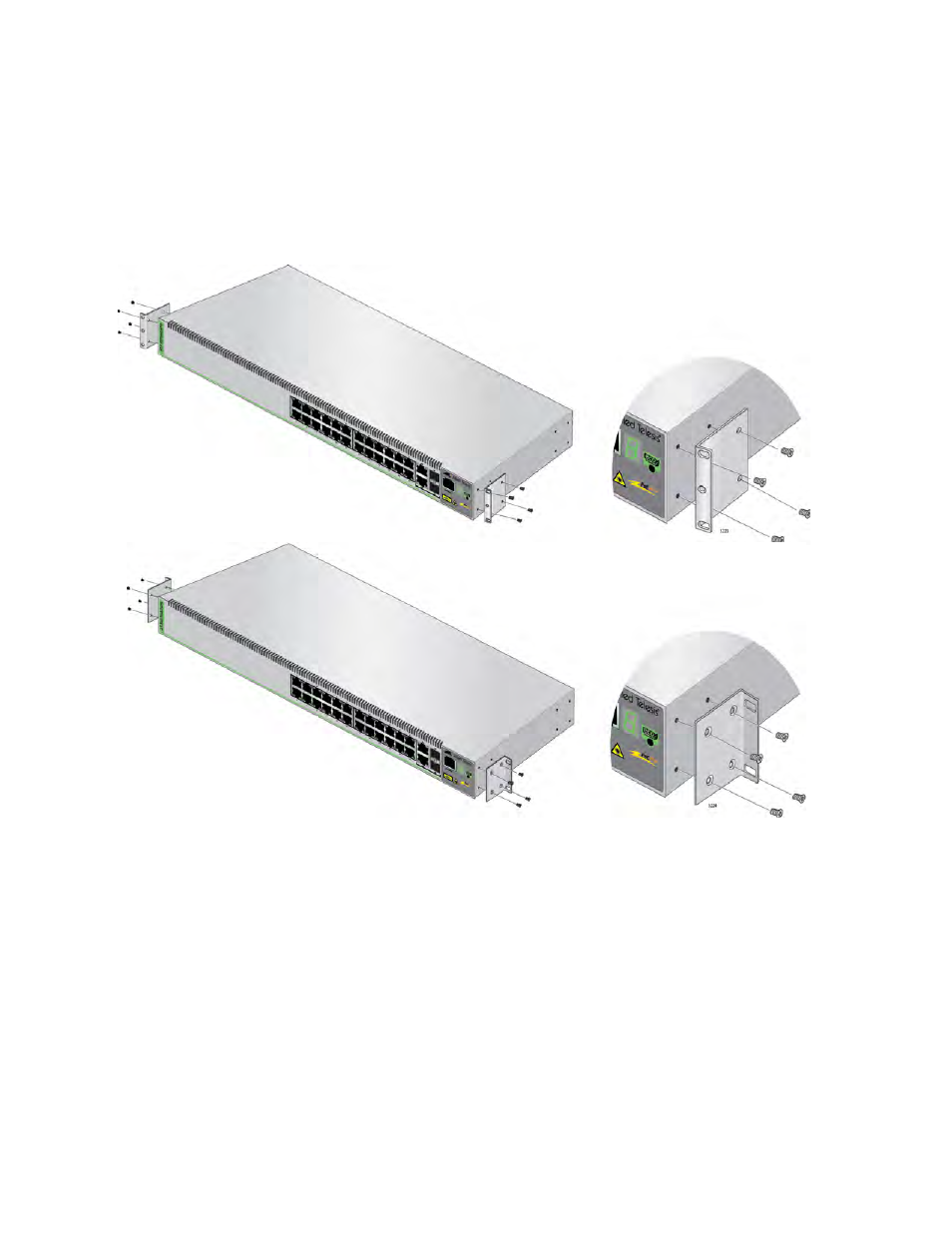

Figure 23. Attaching the Equipment Rack Brackets
