Attaching the equipment rack brackets (continued), Mounting the switch in an equipment rack – Allied Telesis FS970M Series User Manual
Page 69
FS970M Series Installation Guide
69

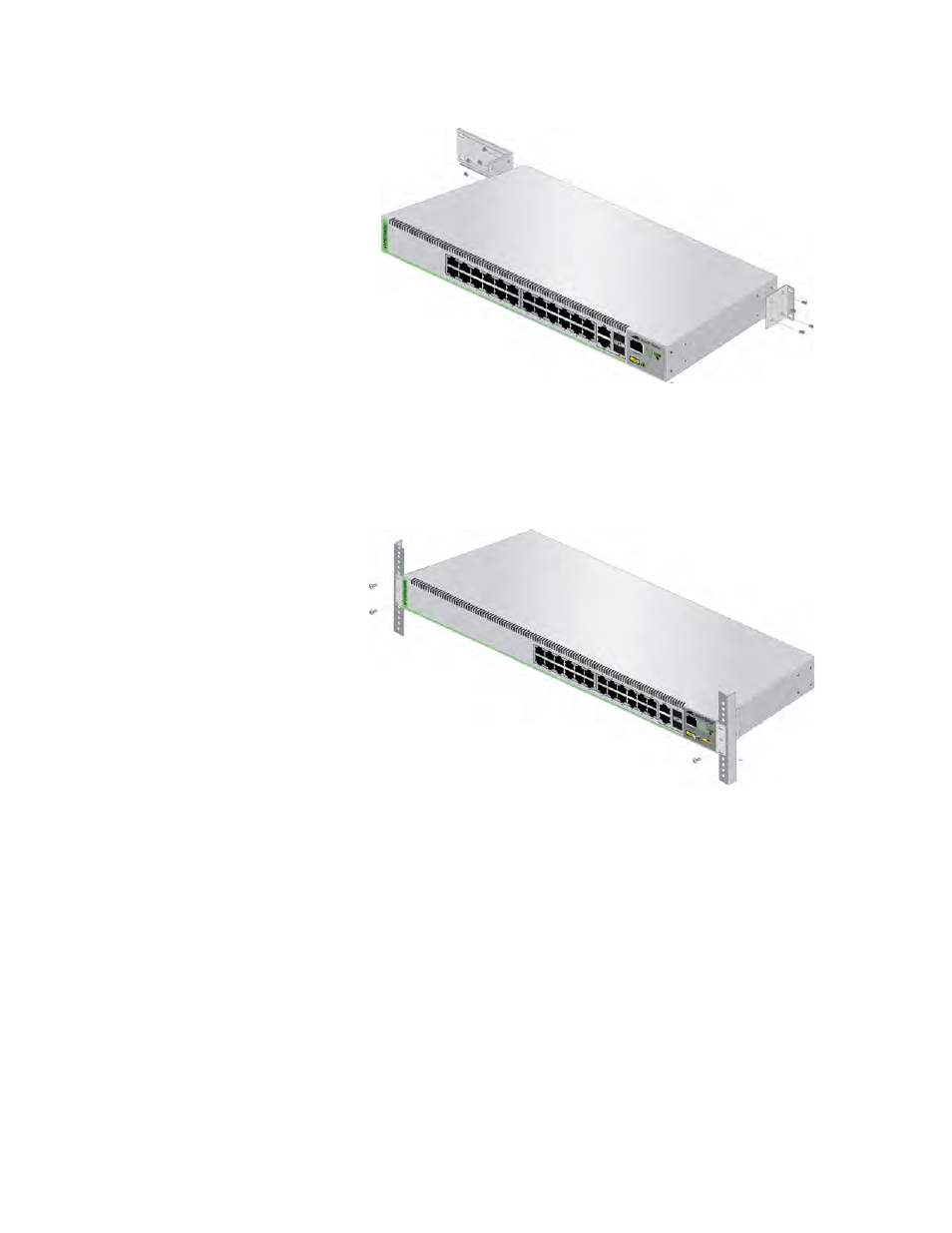

Figure 26. Attaching the Equipment Rack Brackets (Continued)
5. While another person holds the switch in the equipment rack, secure it
using standard equipment rack screws (not provided). Refer to
Figure 27.
Figure 27. Mounting the Switch in an Equipment Rack
Go to Chapter 4, “Cabling the Networking Ports” on page 71 to connect the
network cables to the ports on the switch.
