Page 97
Chapter 3
87
LCD Module Reassembly Procedure
Replacing the Antennas

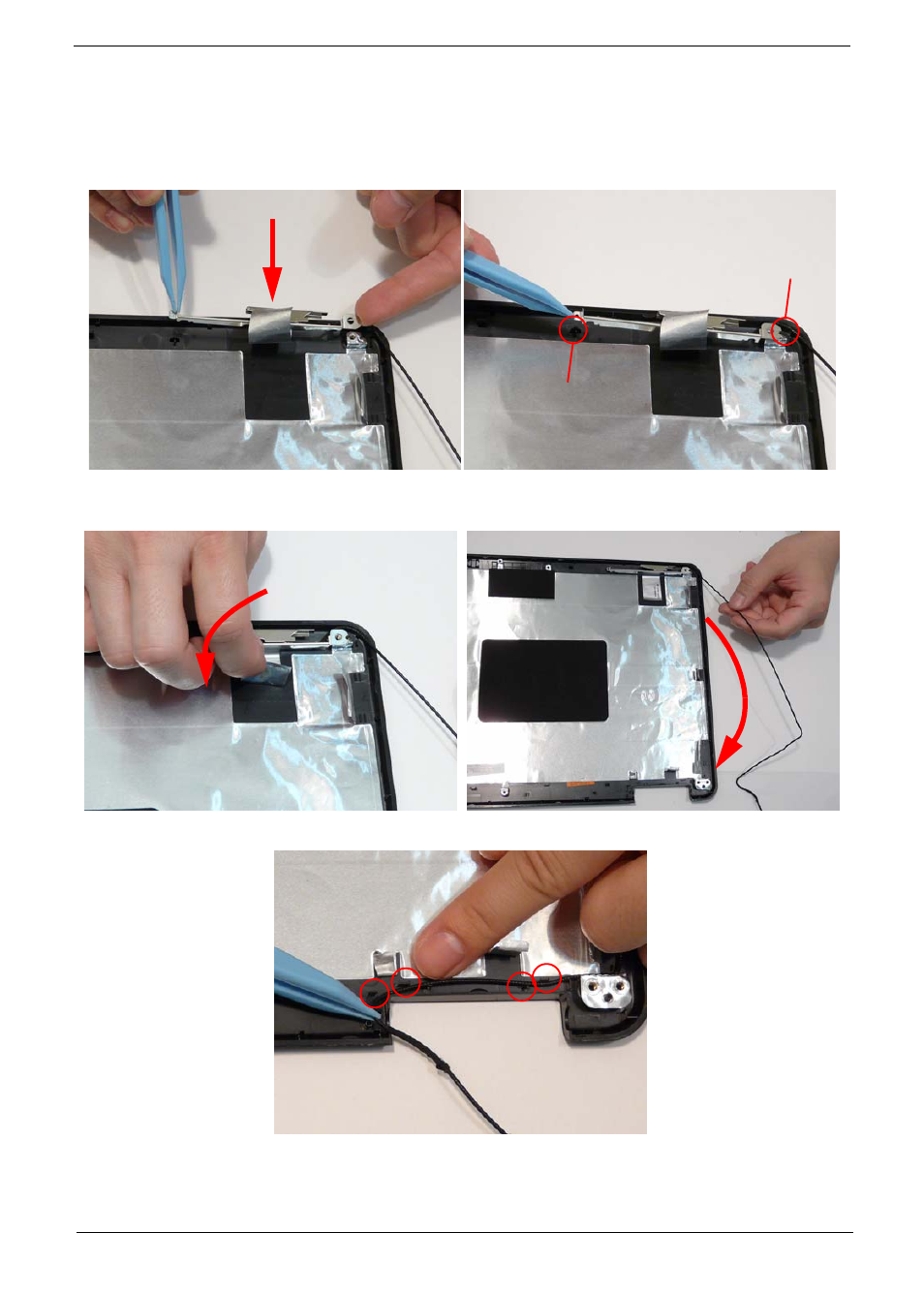

1. Replace the right Antenna as shown. Ensure that the locating pins on the Antenna are correctly seated.
2. Replace the adhesive strip to secure the Antenna
in place.
3. Run the cable down the side of the LCD Module
using all available clips and adhesive.
4. Run the cable along the cable channel as shown, using all available cable clips.
Locating Pin
Locating Pin
