Removing the LCD Module
1. See “Removing the Keyboard” on page 54.

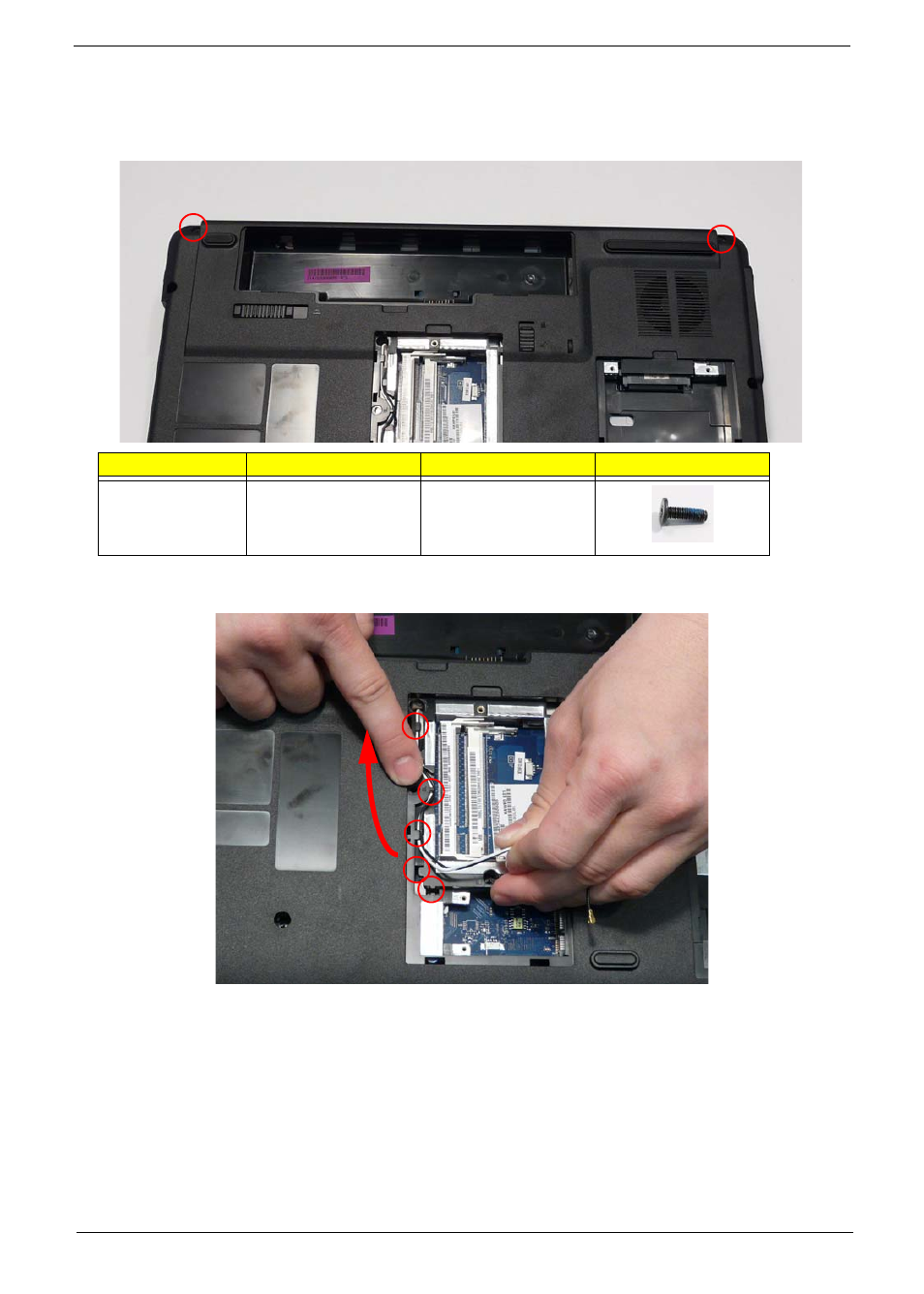

2. Turn the computer over. Remove the two securing screws from the bottom of the chassis.
3. Remove the Antenna Cables from the cable channel as shown. Ensure that the cables are free from all cable
clips.
Step
Size
Quantity
Screw Type
LCD Module
M2.5*8
2
