Acer 5241 User Manual
Page 101
Chapter 3
91

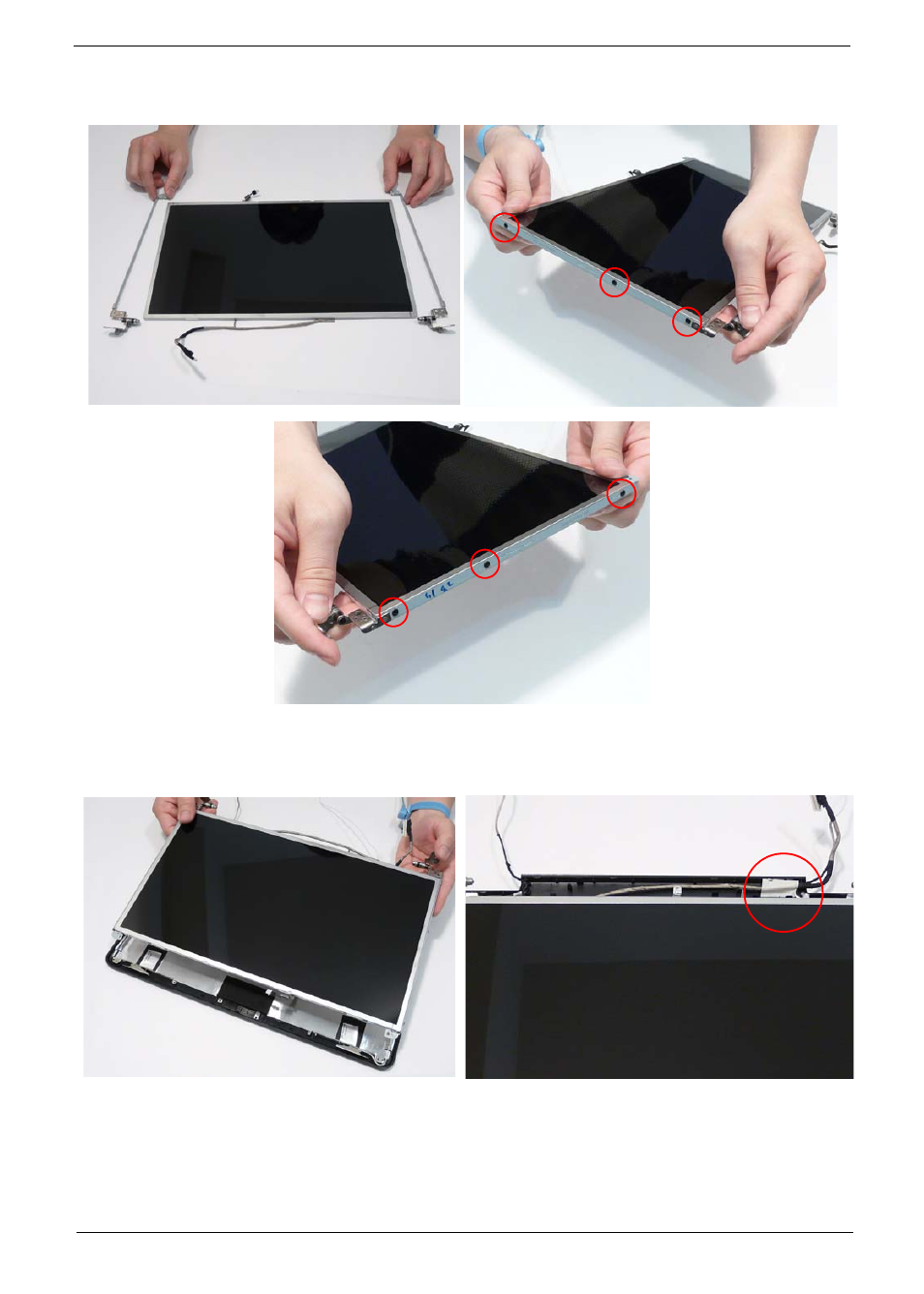

5. Align the LCD brackets with the screw holes on the panel. Replace the six screws (three on each side) in the
brackets as shown.
6. Place the LCD Panel in the LCD Module, top edge first, and secure the LCD cable with adhesive tape.
IMPORTANT: Ensure that the LCD power cable passes through the hinge well and is not trapped under the
panel.
