Removing the Upper Cover
1. See “Removing the LCD Module” on page 55.

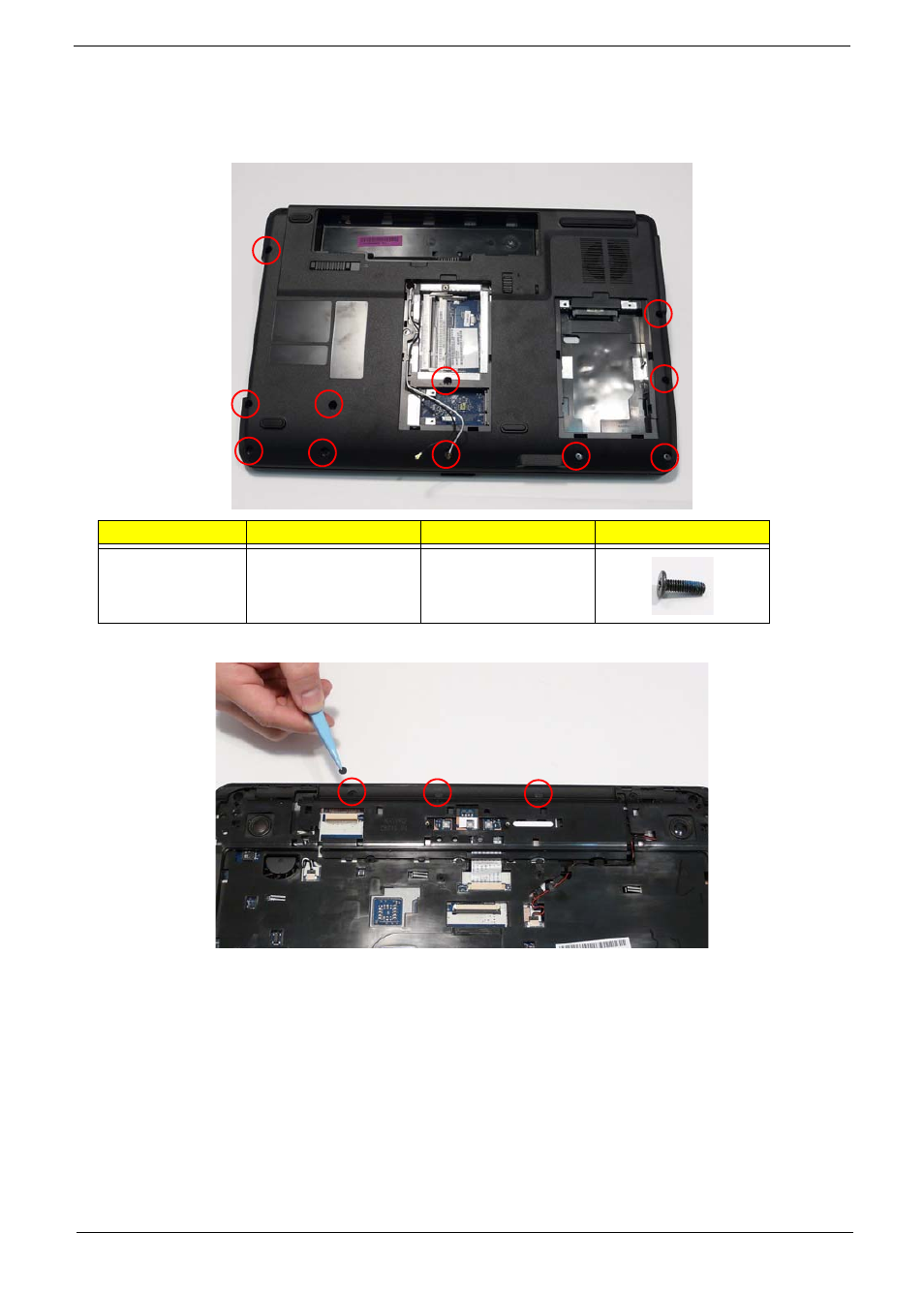

2. Turn the computer over. Remove the eleven screws on the bottom panel.
3. Turn the computer over. Remove the three screw caps at the rear of the Upper Cover as shown.
Step
Size
Quantity
Screw Type
Upper Cover
M2.5*8
11
