Page 124

114

Chapter 3

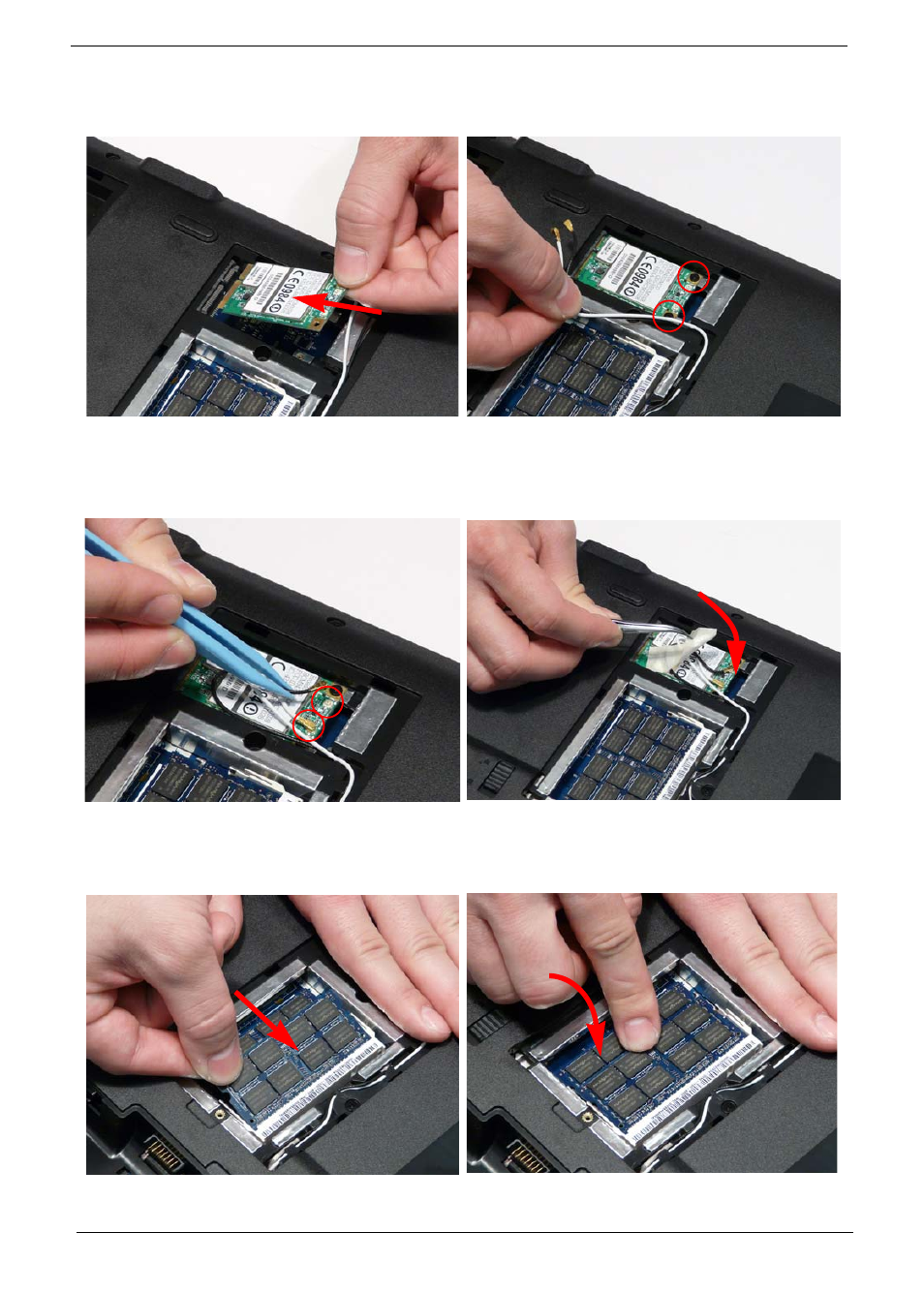

Replacing the WLAN Module

Replacing the DIMM Modules

1. Insert the WLAN Module into the WLAN socket.

2. Replace the two screws to secure the module.

3. Connect the two Antenna cables to the module.

NOTE: The black cable connects to the upper

terminal (MAIN) and the white cable to the

lower terminal (MAIN).

4. After connecting the cables to the terminals,

secure the cables in place with adhesive tape to

avoid trapping.

1. Insert the DIMM Module in place.

2. Press down to lock the DIMM module in place.

3. Repeat steps for the second DIMM module if present.
