Replacing the keyboard – Acer 5241 User Manual
Page 121
Chapter 3
111
Replacing the Keyboard

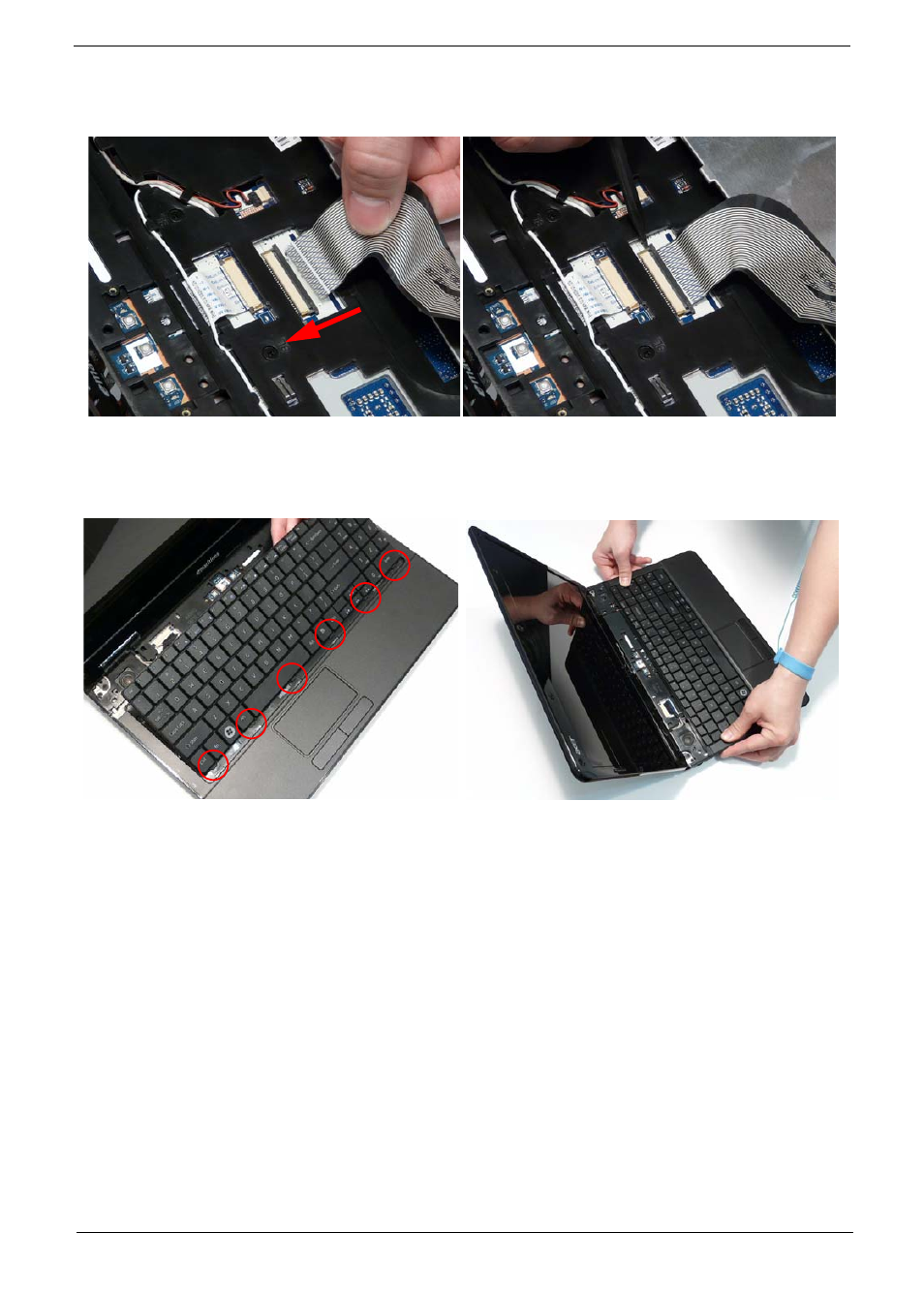

1. Connect the Keyboard FFC to the Mainboard and close the locking latch to secure the cable in place.
2. Turn the Keyboard over and insert it front edge first
into the chassis.
NOTE: Ensure that the six locating tabs are
correctly seated.
3. Press down as indicated to secure the Keyboard in
place.
