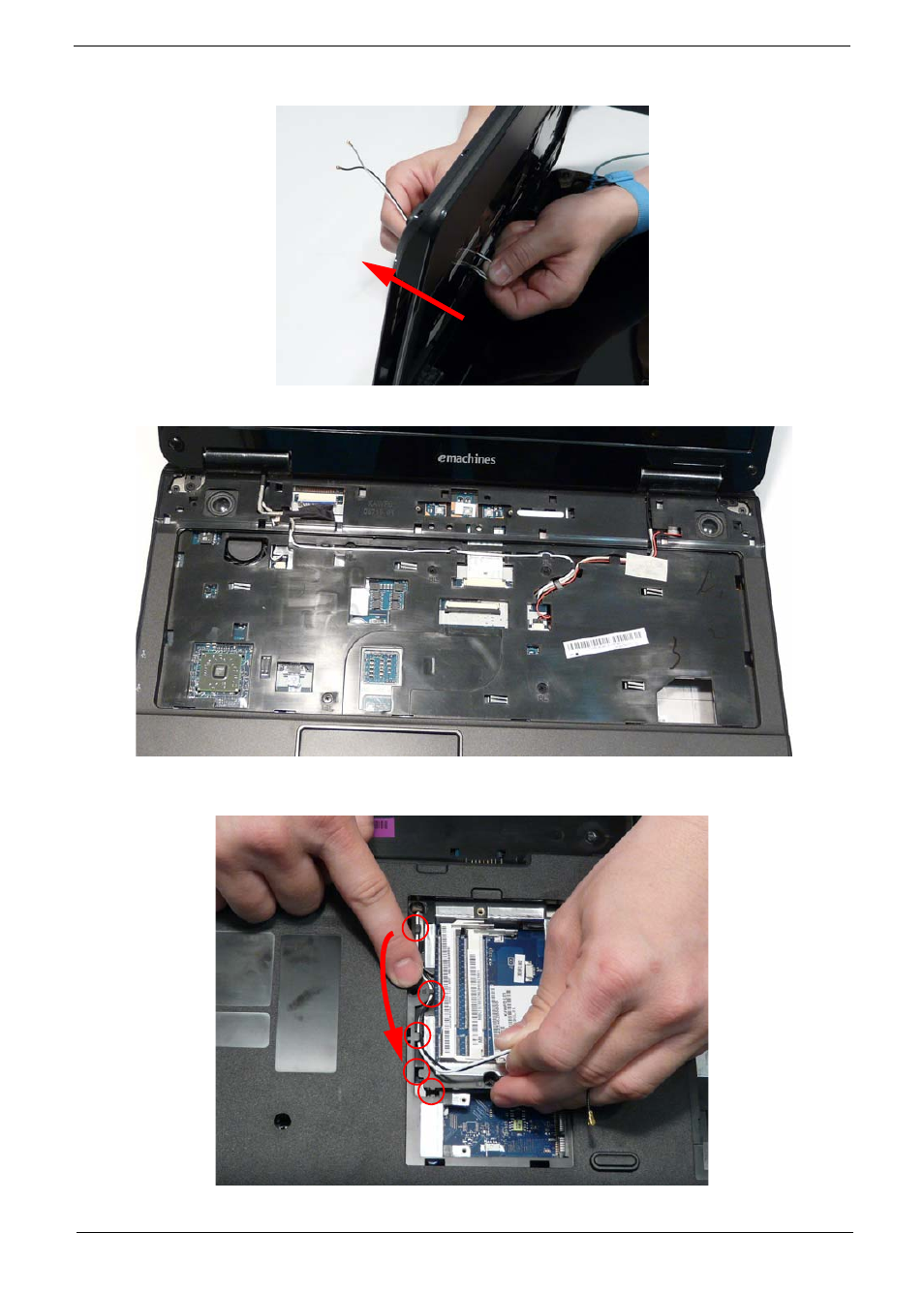

14. Stand the computer on the LCD Panel and pass the Antenna cables through the chassis.
15. The Upper Cover appears as shown when the Antenna and LCD cables are correctly installed.
16. Turn the computer over. Run the Antenna cables along the cable channel as shown, using all available
cable clips.
