Acer 5241 User Manual
Page 117
Chapter 3
107

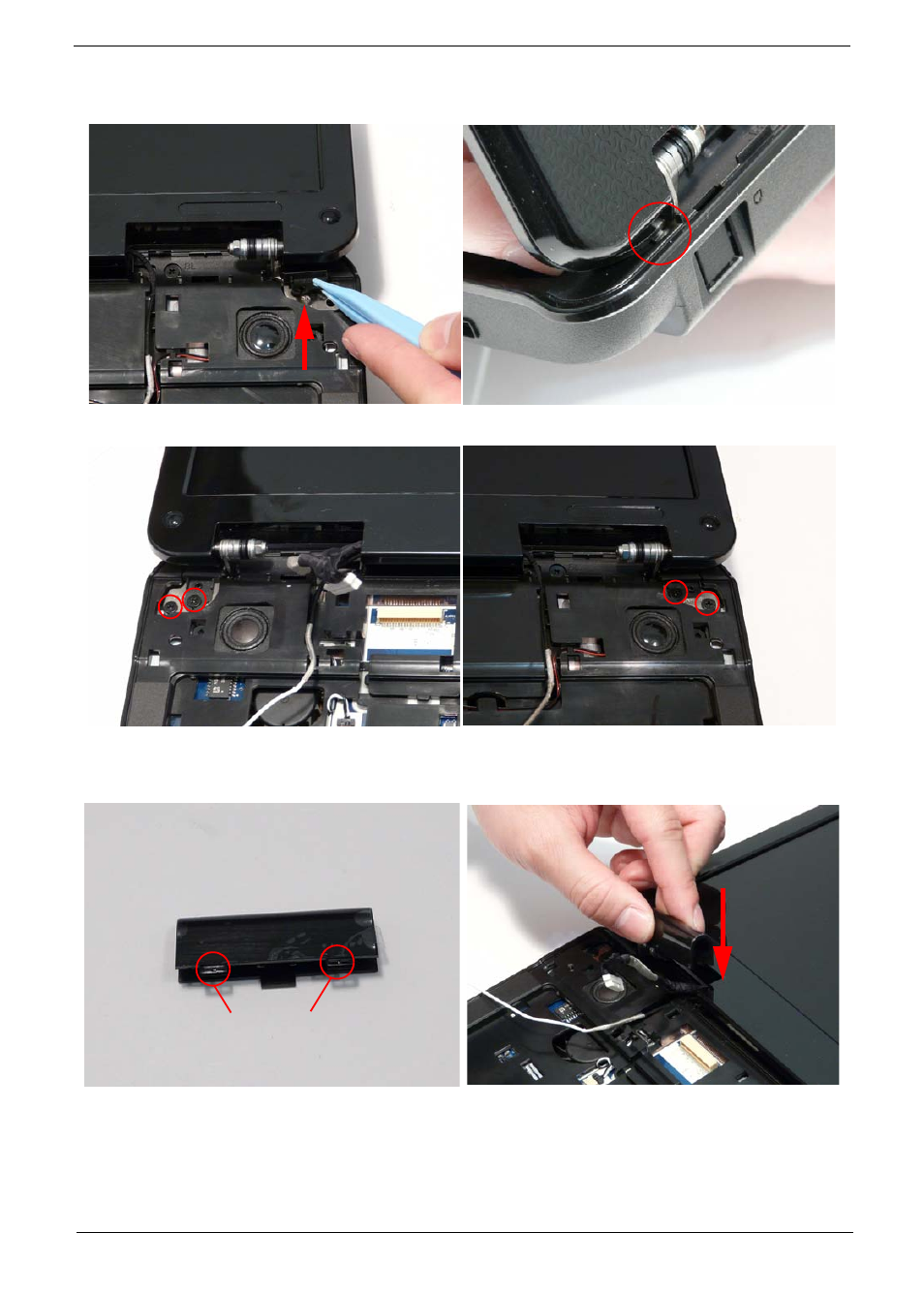

4. Replace the right screw cover as shown. Ensure that the securing tab on the rear of the cover is seated
correctly in the Upper Cover.
5. Replace the four screws securing the LCD Module to the Upper Cover.
6. Ensure that the Hinge Covers are replaced
correctly. Identify the rear edge of the covers by the
two securing clips.
7. Align the left Hinge Cover as shown and press
down to replace the cover.
8. Repeat the process for the right side Hinge Cover.
Rear Securing
Clips
