Appendix B. SDI-12 Sensor Support
The following examples show how to use LoggerNet software to enter
transparent mode and change the SDI-12 address of a CS650 sensor. The same
steps are used to enter transparent mode with PC200W and PC400 software
after accessing the terminal emulator as previously described.
B.2.2 CR200(X) Series Datalogger Example
1. Connect a single CS650 to the datalogger as follows:
• Green to Control Port C1/SDI12
• Black, Orange, Clear to G
• Red to Battery +
2. In the LoggerNet Connect screen navigate to the Datalogger menu and
select Terminal Emulator. The “Terminal Emulator” window will open.
In the Select Device menu, located in the lower left-hand side of the
window, select the CR200Series station.
3. Click on the Open Terminal button.
4. Press the key until the datalogger responds with the “ CR2XX>”
prompt. At the “ CR2XX>” prompt, make sure the All Caps Mode box is
checked and enter the command SDI12 . The response
“SDI12>” indicates that the CS650 is ready to accept SDI-12 commands.
5. To query the CS650 for its current SDI-12 address, key in ?! and
the CS650 will respond with its SDI-12 address. If no characters are typed
within 60 seconds, then the mode is exited. In that case, simply enter the
command SDI12 again and press .

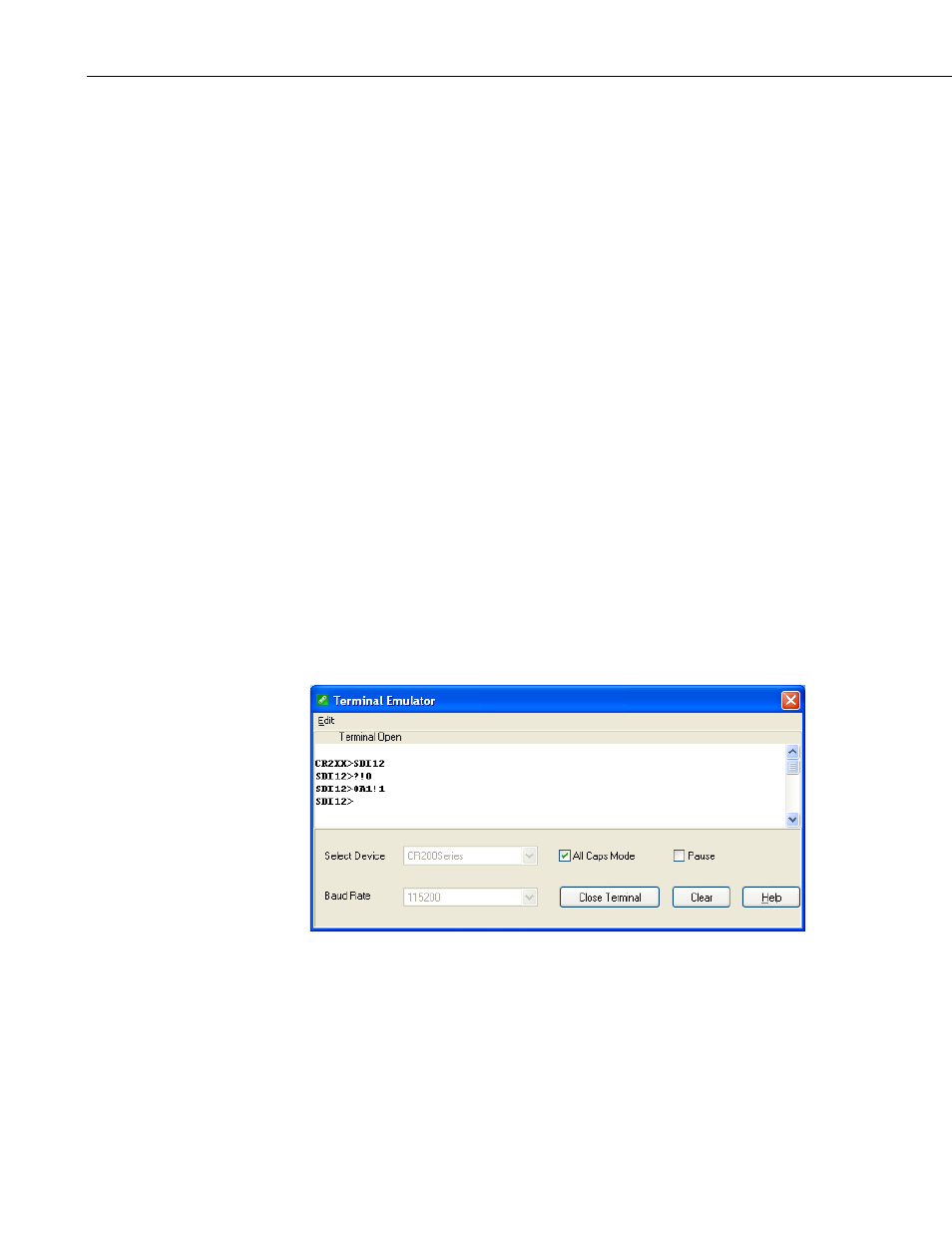

FIGURE B-1. SDI-12 transparent mode on CR200(X)-series datalogger
using control port C1/SDI12 and changing SDI-12 address from 0 to
1
6. To change the SDI-12 address, key in aAb! where a is the
current address from the above step and b is the new address. The CS650
will change its address and the datalogger will respond with the new
B-4
