CS650 and CS655 Water Content Reflectometers

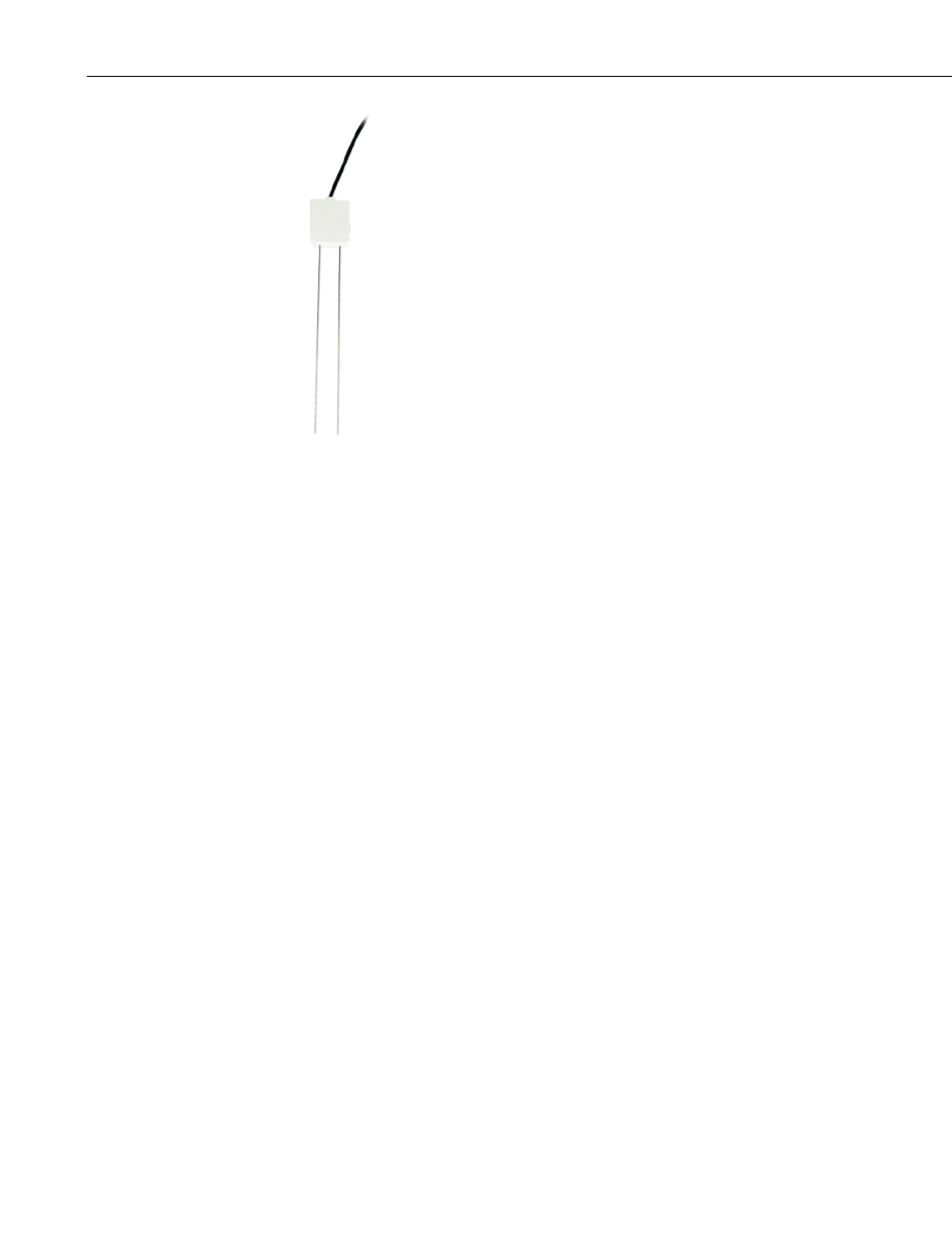

FIGURE 4-1. CS650 Water Content Reflectometer

Volumetric water content information is derived from the probe’s sensitivity to

the dielectric permittivity of the medium surrounding the probe stainless-steel

rods. The CS650 is configured as a water content reflectometer, with the two

parallel rods forming an open-ended transmission line. A differential oscillator

circuit is connected to the rods, with an oscillator state change triggered by the

return of a reflected signal from one of the rods. The two-way travel time of the

electromagnetic waves that are induced by the oscillator on the rod varies with

changing dielectric permittivity. Water is the main contributor to the bulk

dielectric permittivity of the soil or porous media, so the travel time of the

reflected wave increases with increasing water content and decreases with

decreasing water content, hence the name water content reflectometer.

Electrical conductivity is determined by exciting the rods with a known non-

polarizing waveform and measuring the signal attenuation.

Temperature is measured with a thermistor in contact with one of the rods.

It is well known that transmission line oscillators used for water content

measurements suffer from unwanted increases in oscillation period as

increasing electrical conductivity causes transmission line signal attenuation.

The CS650 handles this problem by making an electrical conductivity

measurement and then correcting the oscillator period accordingly. On-board

processing within the sensor head calculates electrical conductivity from the

signal attenuation measurement and combines the result with the oscillation

period measurement to calculate the dielectric permittivity of the media and

finally applies the Topp equation (Topp et al. 1980) to estimate volumetric

water content.

Probe electronics are encapsulated in the rugged epoxy probe head.

A five conductor cable including the drain or shield wire is used to provide

power and ground as well as serial communication with the CS650. The CS650

is intended to communicate with SDI-12 recorders, including Campbell

Scientific dataloggers. The orange Rx wire can be used to communicate by
