MICRbase, Setup Program for MICR Readers
40

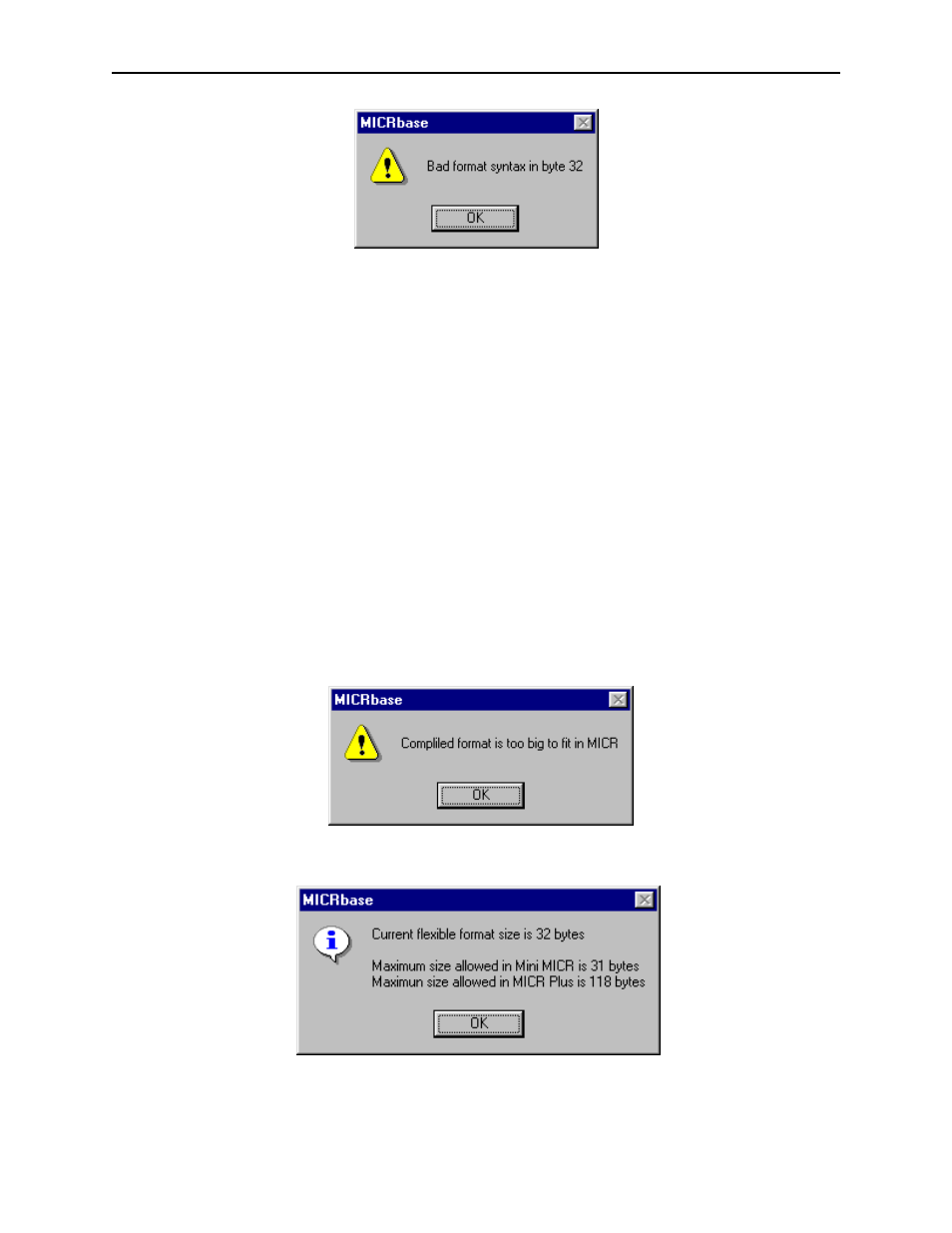

Figure 7-4. Syntax Error
However, editing a numeric string is only recommended for those users with basic programming
skills and a comprehensive knowledge of MagTek's SFL. Furthermore, any numeric commands
entered in this manner will not be reflected in the Design Flexible Format dialog box.
OK
Click this button to keep any changes made.
Cancel
Click this button to discard any changes made.
FLEXIBLE FORMAT SIZE
This box displays the number of memory bytes that the current Flexible Format will occupy in
the memory of the MICR Reader. There is a maximum of 31 bytes available in the Mini MICR
and 118 bytes in the MICR Plus. If the size of the Flexible Format exceeds the limits, the dialog
boxes in Figures 7-5 and 7-6 will appear. Click OK on both and correct the problem.
Figure 7-5. Format Too Large
Figure 7-6. Maximum Sizes For MICR Readers
