Videotec DTRX3 User Manual
Page 44
Page
14
MNVCDTRX301_0850

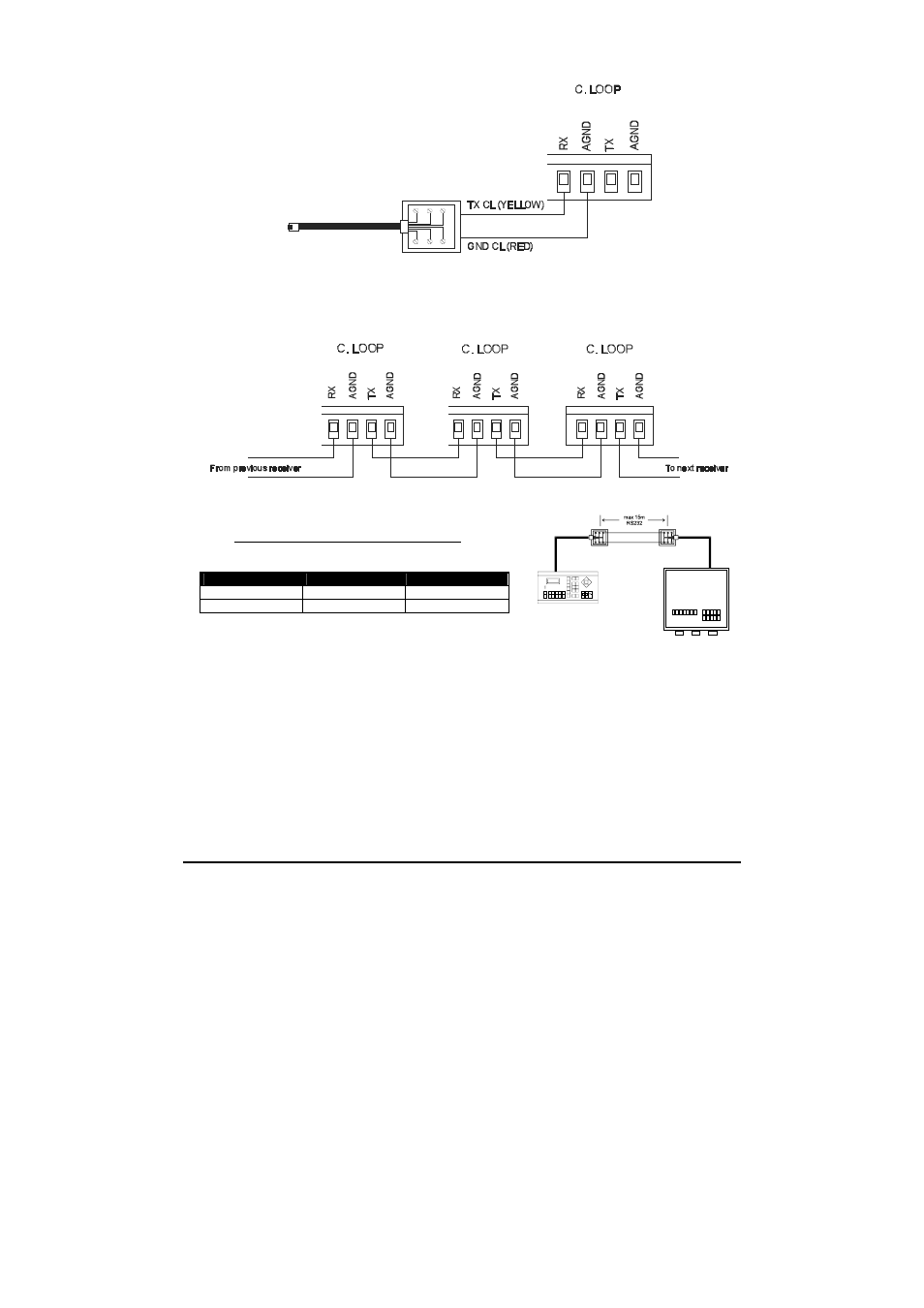

Note: from the Receiver side the connection should be made to terminals RXCL and AGND according to the
following scheme:
• if the receiver is connected in cascade to another DTRX3 unit, the reception mode should be set in Current
Loop with jumpers JP2 and JP3 in position CL.
• terminals RX CL and AGND should be connected to the preceding unit terminals TX CL and AGND
respectively as in the following scheme:
6.11 Connection with the RS232 line
RS232 Connection: max. distance 15 metres.
DCS2/DCMT8
DTRX3
TX RS232 Black
--------
Yellow RX RS232
GND RS232 Green
--------
Red GND RS232
