Page 5 MNVCDTRX301_0850
4.2 Compatible devices for the use with the DTRX3 receiver
WARNING! In case of using the DTRX324, refer to the paragraph 17. Compatible devices for the use
with the DTRX324 receiver.
• Control
keyboards: DCT, DCJ, DCTEL, DCIR, DCS3, DCS2, DCMT8
• Pan & Tilt motors: PTH310/PTH310P, PTH311/PTH311P, PTH910/PTH910P, PTH911/PTH911P,
NXPTH210, NXPTH211C
• DCMX: communications controller
• DCRE485: serial data distributor
Read the instruction manuals for the correct use of the above mentioned devices.

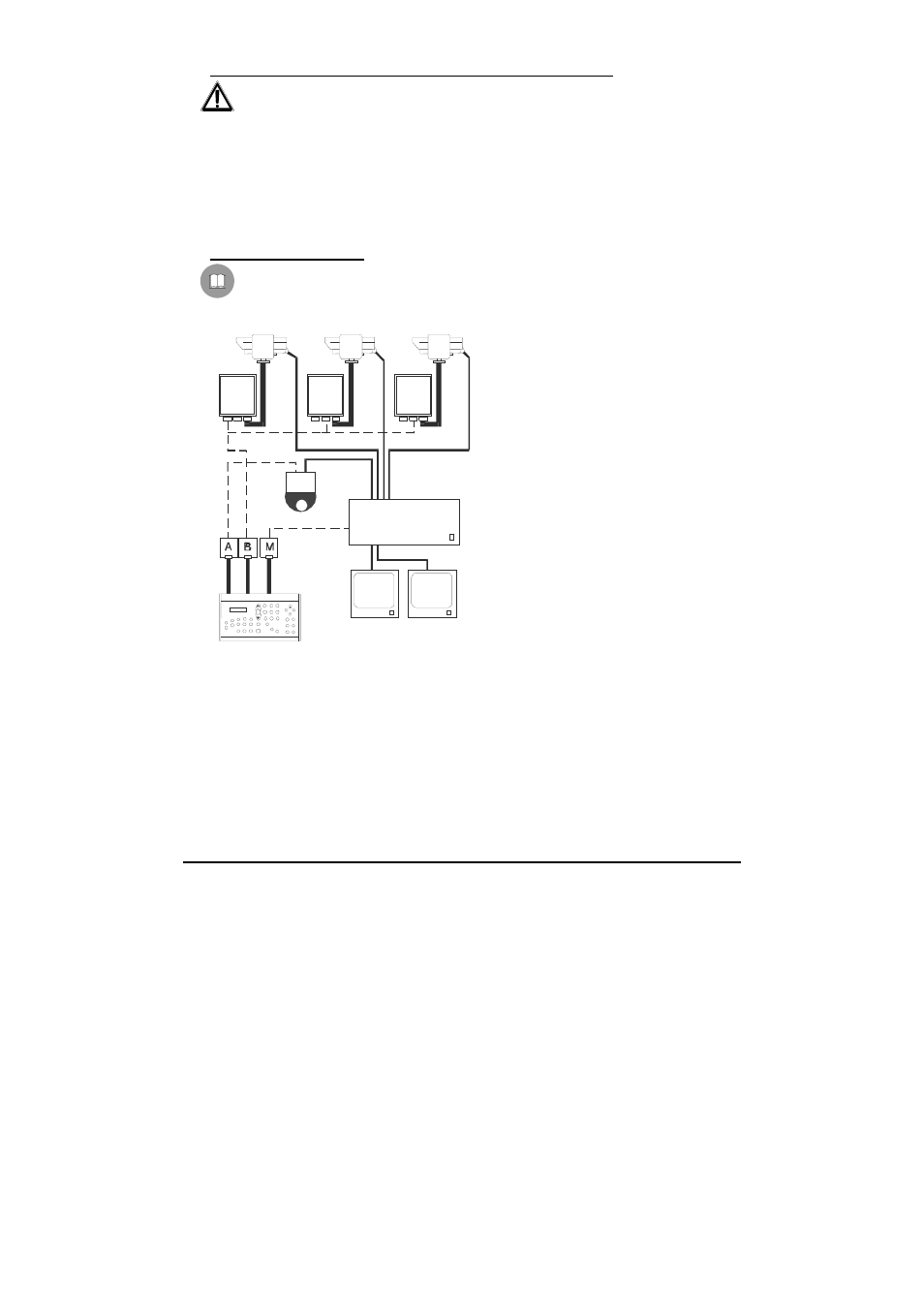

4.3 Installation examples
A single operator with several monitors for the control of a set of positioning devices in mixed
configuration:
DEVICES:
Control keyboard:
• 1 DCS3 control keyboard
Video management:
• 2
monitors
• 3 cameras (+1 OEM receiver)
• 1 video matrix SW328
Telemetry management:
• 3 DTRX3 receivers
• 3 PTH910P P&T motors
(PTH911P with DTRX324
receiver)
• 1 OEM receiver (with camera
included)
R1 R2 R3
M1
OEM
K1
