÷ For turntable with equalizer amplifier, connect it to the
[AUX IN] terminal.
÷ Moving coil (MC) cartridge turntable cannot be used di-
rectly from the unit. Use a dedicated equalizer amplifier
and connect this to the [AUX IN] connectors.

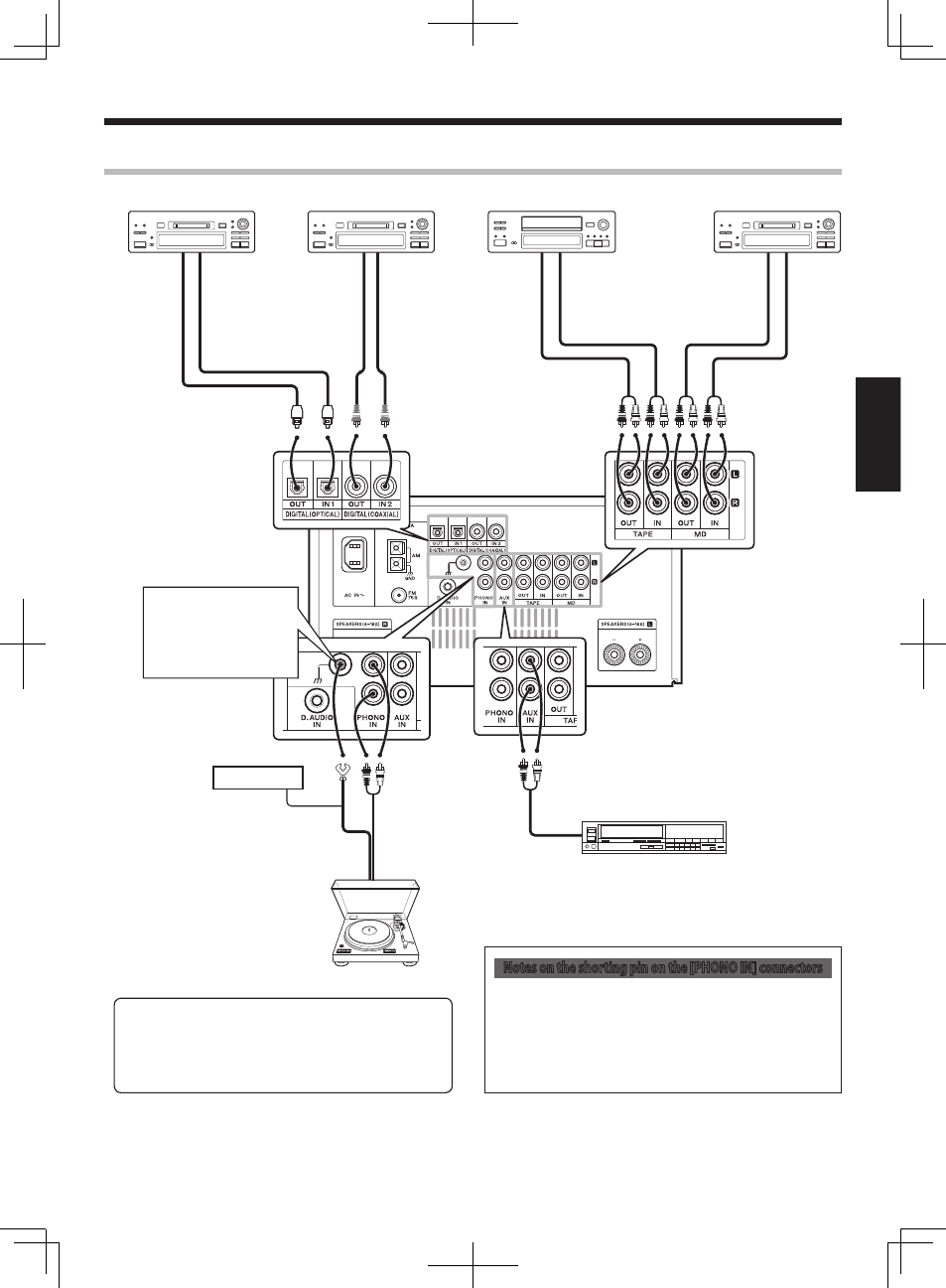

Connections
÷ Before connecting associated system products, be sure to read their instruction manuals.
÷
Connect every connection cord firmly. Incomplete insertion may cause loss of audio output or generation of noise.
÷
If the speaker cord is connected by inverting the + and – polarity, the reproduced audio will be unnatural with unclear positioning of
musical instruments.
Signal GND wire
The earth terminal with
the
H symbol is used
for noise reduction of
turntable. It is not for
safety earth.
Optical Digital
Audio In
Optical Digital
Audio Out
Coaxial Digital Audio In
AUDIO IN AUDIO OUT AUDIO IN AUDIO OUT
AUDIO OUT
AUDIO OUT
Digital component 1 Cassette deck MD recorder
VCR, etc.
Turntable with MM cartridge
Digital component 2
Coaxial Digital Audio Out
Notes on the shorting pin on the [PHONO IN] connectors
÷ The system comes with a shorting pin inserted into the
[PHONO IN] connectors. If you want to connect an analog
disk turntable, remove the shorting pin and store it care-
fully so as not to lose it.
÷ Do not connect the removed shorting pin to output con-
nectors.
Connecting Associated Products (Commercially Available)
