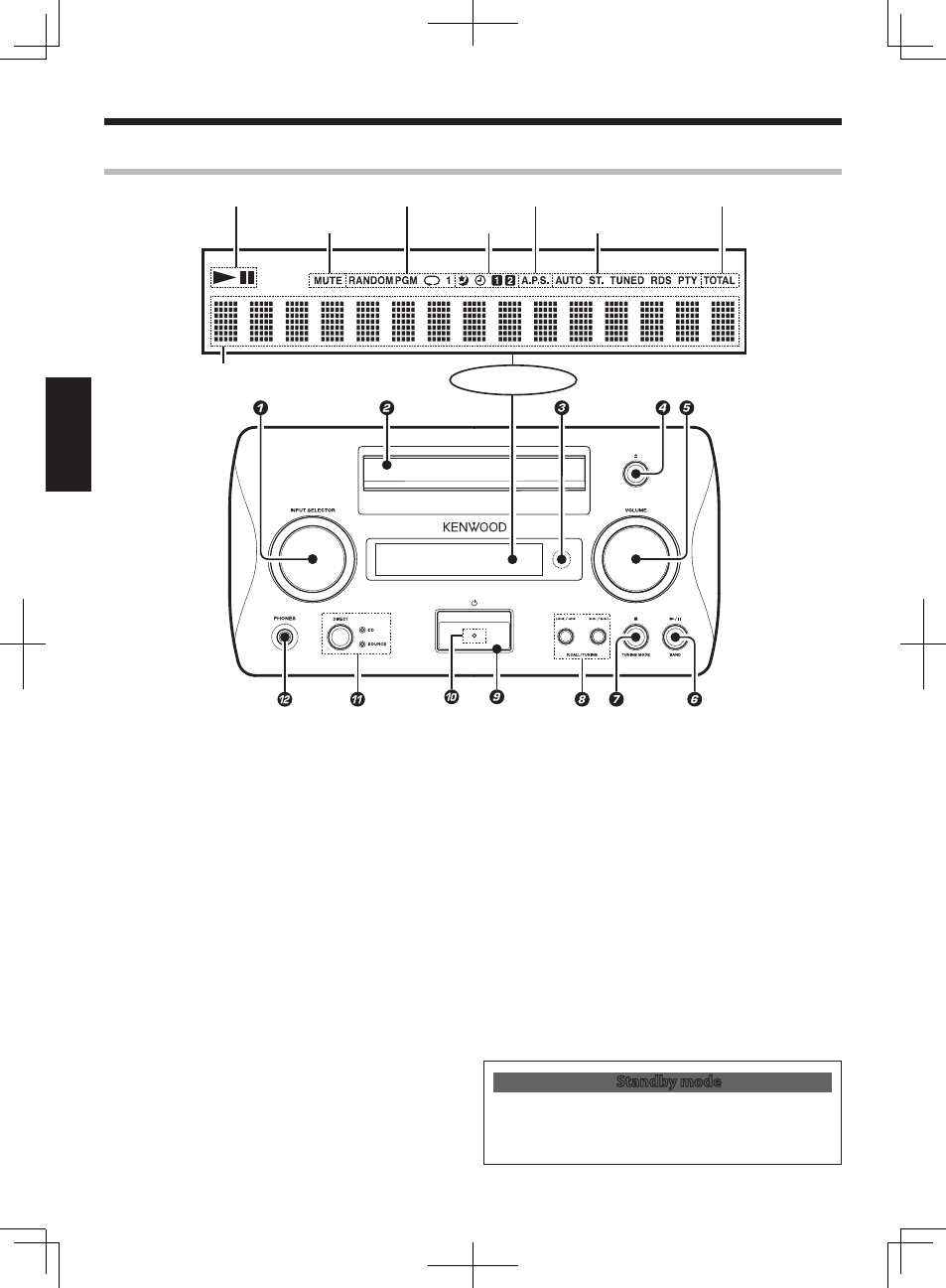

Controls, Connectors and Indicators
Display
MUTE indicator
Timer-related indicators
CD playback mode indicator
Play/pause indicator
1
INPUT SELECTOR knob (See page 14.)
Turn the knob to select an input.
2
CD tray (See page 17.)
3
Remote control sensor (See page 12.)
4
CD tray open/close (
0) key (See page 17.)
Press to open or close the CD tray.
5
VOLUME knob (See page 14.)
Turn the knob to adjust the volume.
6
6/BAND key (See pages 18, 20 and 23.)
{
When the [TUNER] input is selected: Press to switch the
receiving radio band (FM/AM).
{
When the [CD] or [D.AUDIO] input is selected: Press to
switch the play and pause modes.
7
7/TUNING MODE key (See pages 18, 21 and 23.)
{
Wh en the [TUNER] input is selected: Press to switch
between auto tuning (auto/stereo reception) and mono
tuning (manual/monaural reception).
{
When the [CD] or [D.AUDIO] input is selected: Press to
stop playback.
{
In standby mode: Press to display the time of the day or
day of the week.
8
4/1, ¡/¢, P.CALL/TUNING keys
(See pages 18, 19, 21 and 23.)
{
When the [TUNER] input is selected: Press to recall a
preset radio station (Preset Call) or selecting a radio sta-
tion.
Tuner-related indicators
Character information display
{
Wh en the [CD] or [D.AUDIO] input is selected: Press
to skip or search (by fast forward or fast reverse) a track.
(Pressing and holding a key for more than 1 second starts
search in the direction corresponding to the key. Pressing
a key shortly starts skip in the direction corresponding to
the pressed key.)
9
Power key (See page 14.)
Press to switch the power mode of the system between ON
and standby.
0
Standby indicator (See page 14.)
Red lighting: Ordinary standby mode.
Orange lighting: Timer standby mode.
If the indicator is blinking, see "Troubleshooting".
(See page 38.)
!
DIRECT key/CD and SOURCE indicators (See page 16.)
Press the key to switch the CD/SOURCE DIRECT functions ON
and OFF.
@
PHONES jack (See page 15.)
Connect headphones when using them.
Standby mode
When the standby indicator is lit, a small amount of power is
supplied to the system to back up the memory. This status is
referred to as the standby mode. During this mode, the system
can be switched ON from the remote control unit.
Auto Power Save indicator
Elapsed time indicator
Main unit
