Connections
FM indoor antenna
The provided FM antenna is a simplified one for indoor use, in-
tended for temporary use. To receive FM stations stably, it is rec-
ommended to use an outdoor antenna (commercially available).
Remove the FM indoor antenna after connecting the outdoor an-
tenna.
FM outdoor antenna (commercially available)
To receive FM broadcasting more clearly, it is recommended
to use an FM outdoor antenna. Use a 75-Ω coaxial cable, lead it
indoors and connect to the [FM 75 Ω] terminal. Remove the FM
indoor antenna after connecting the outdoor antenna.
Caution for FM outdoor antenna installation
Since antenna installation necessitates skill and experi-
ence, always consult your dealer before installation. The
antenna should be placed at a distance from the power
distribution wires. Otherwise, an electric shock accident
may occur if the antenna falls down.

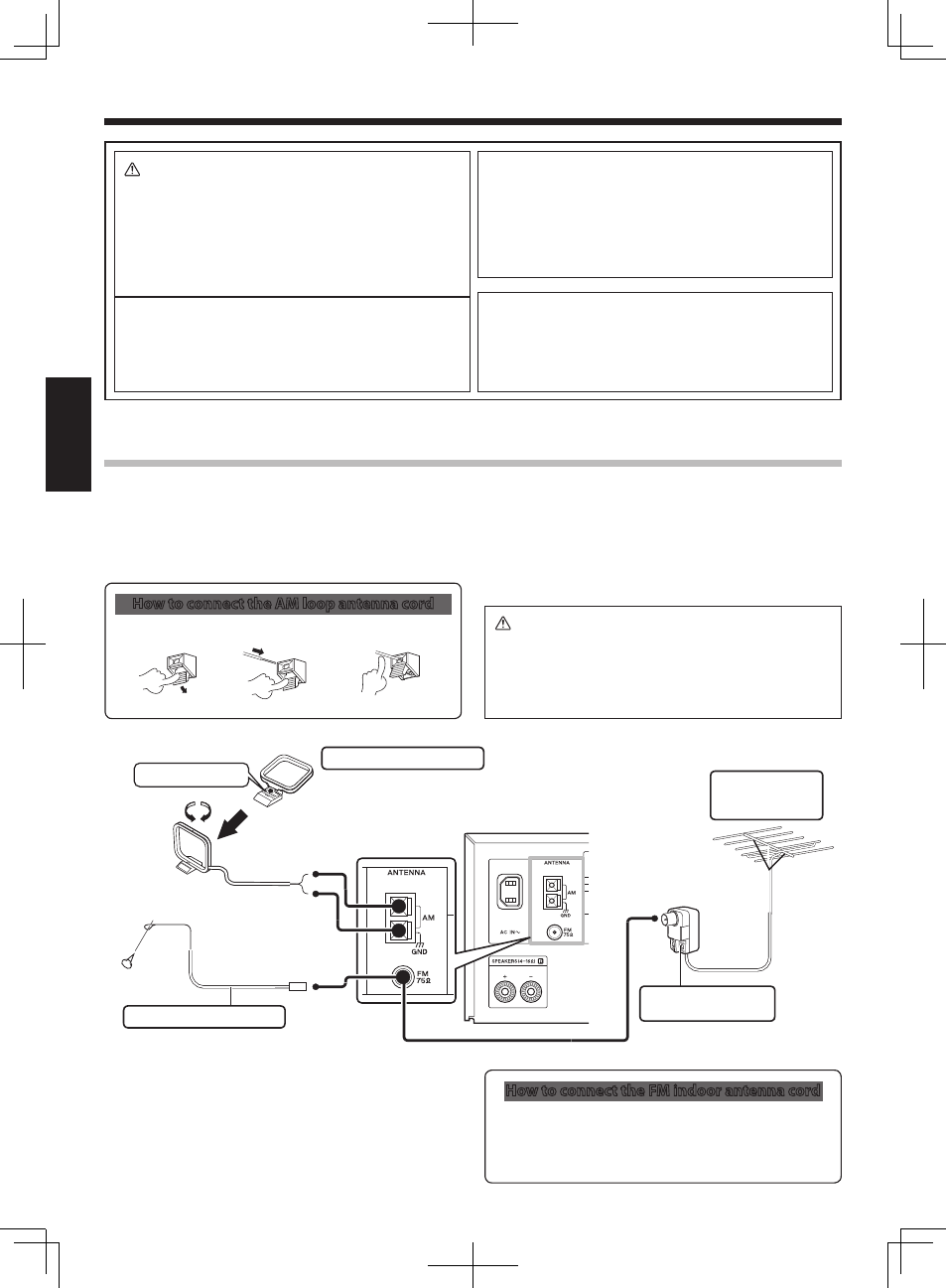

How to connect the AM loop antenna cord
1 Push the lever 2 Insert the cord 3 Return the lever
FM outdoor antenna
(commercially
available)
AM loop antenna
The provided AM antenna is an indoor antenna. Install it as apart as
possible from the main unit, TV set, speaker cords and power cord
and orient it in the direction that offers best reception condition.
Antenna adaptor
(commercially available)
FM indoor antenna (accessory)
Attach to the stand
AM loop antenna (accessory)
How to connect the FM indoor antenna cord
1 Connect the antenna to the antenna terminal
2 Find the antenna location that offers best reception
3 Fix the antenna in the found location
Caution for connection
Do not plug the power cord into the power outlet until all
other connections are completed. Before unplugging a con-
nected cord or cable, be sure to set the power key to OFF and
unplug the power cord from the power outlet in advance.
Malfunction of microcomputer
If the system does not work properly or the display shows
wrong information even when correct connections are made,
reset the microcomputer referring to "Resetting the Micro-
computer". (See page 38.)
CAUTION
Observe the following cautions when installing the system.
Insufficient heat radiation may build up internal heat and
cause a malfunction or fire hazard.
÷ Do not place an object that may hinder heat radiation on the system.
÷ Leave the spaces specified below around the cabinets of the main unit.
Top panel:50cm or more
Side panel:10cm or more
Back panel:10cm or more
Install the system so that the power outlet is easily accessible
from the user, and unplug the power cord from the power
outlet immediately in case of a trouble. Note that the power
supply to the system is not shut down completely by simply
setting the power key to OFF. To shut down the power supply
completely, it is required to unplug the power cord.
Fit into the groove.
Connecting the antennas
AM/FM radio stations cannot be received without the proper antenna connections. Connect the antennas properly according to the fol-
lowing instructions.
