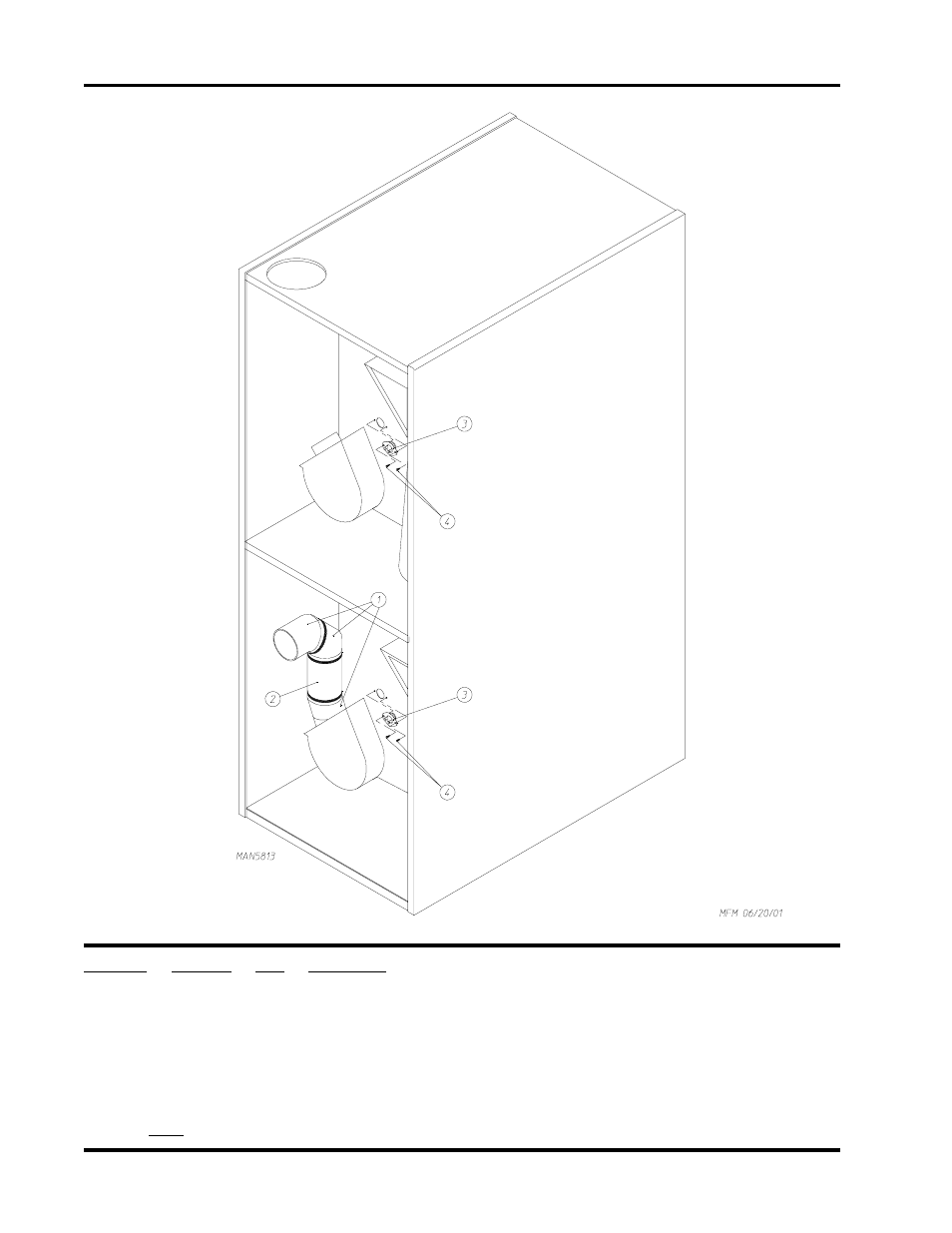

Bottom Exhaust Duct Assembly and Cabinet Hi-Limit
Illus. No.
Part No.
Qty.
Description
1
143536
2
6” Round x 45º Elbow
2
143545
1
6” Round x 6” Long Duct
-
117505*
5
Aluminum Duct Tape (sold by the foot)
3
130107
2
Cabinet Hi-Limit 160°
4
150301
4
#8-18 x 7/16” Phillips Pan Head Screw
*
Tape ALL joints.
