Illus. No. Part No. Qty. Description
1 883455 1 AD-320 White Lint Drawer (basket) Assembly Complete
(includes illus. nos. 1 and 2)
883457 1 AD-320 Ivory Lint Drawer (basket) Assembly Complete
(includes illus. nos. 1 and 2)
883456 1 AD-320 Coral Blue Lint Drawer (basket) Assembly Complete
(includes illus. nos. 1 and 2)
883458 1 AD-320 Black Lint Drawer (basket) Assembly Complete
For Stainless Steel Models ONLY
2 117604 1 Neoprene Sponge Tape (sold by the foot)
3 --------- 1 Temperature Sensor Bracket
(refer to Temperature Sensor Probe Assembly on page 27)
4 --------- 1 Lint Drawer (basket) Switch
(refer to AD-320 Lint Drawer [Basket] Switch Assembly on page 31)
IMPORTANT: For models with optional lock refer to AD-320 Locking Lint Drawer (Basket) Assembly
on page 12.

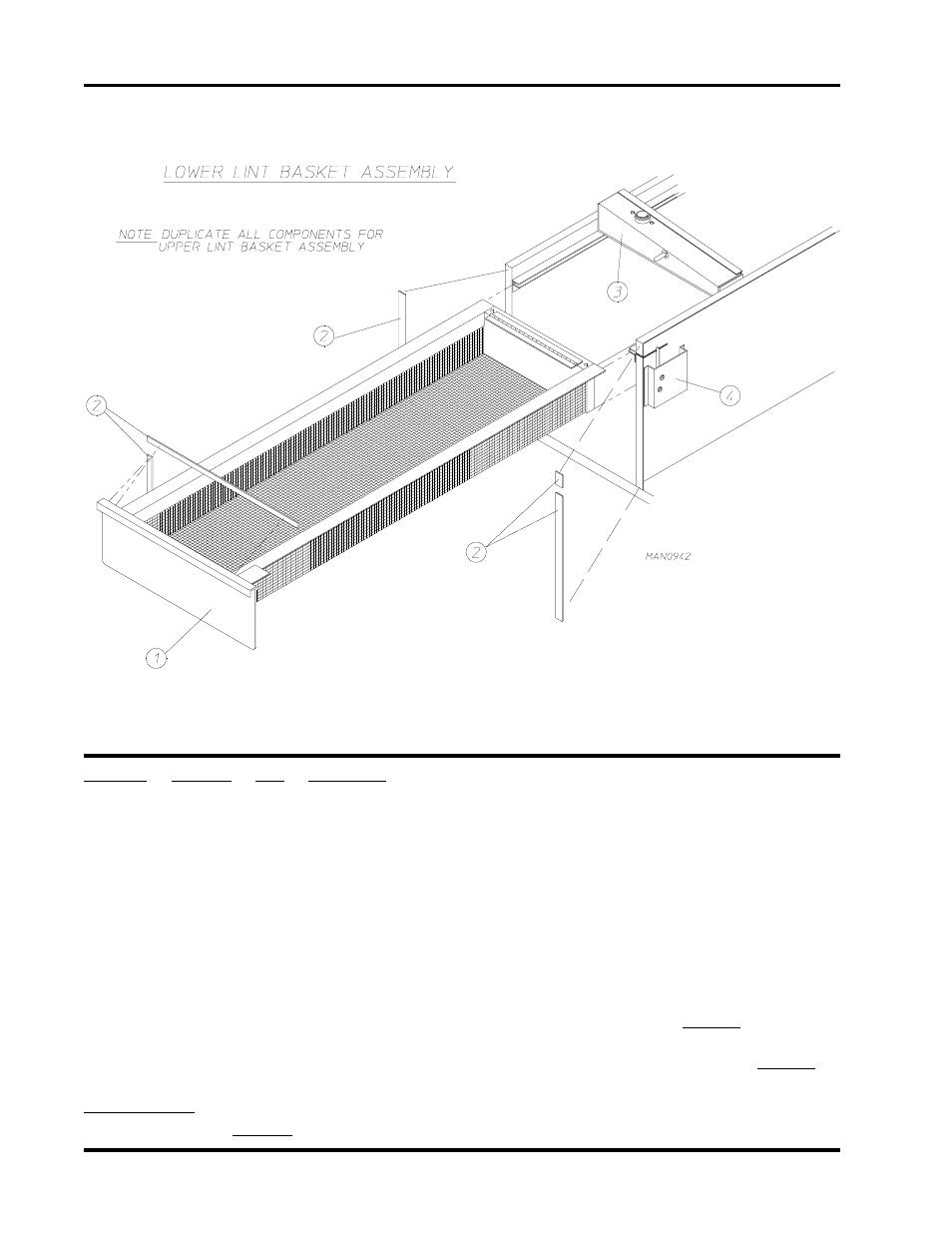

AD-320 Lint Drawer (Basket) Assembly
