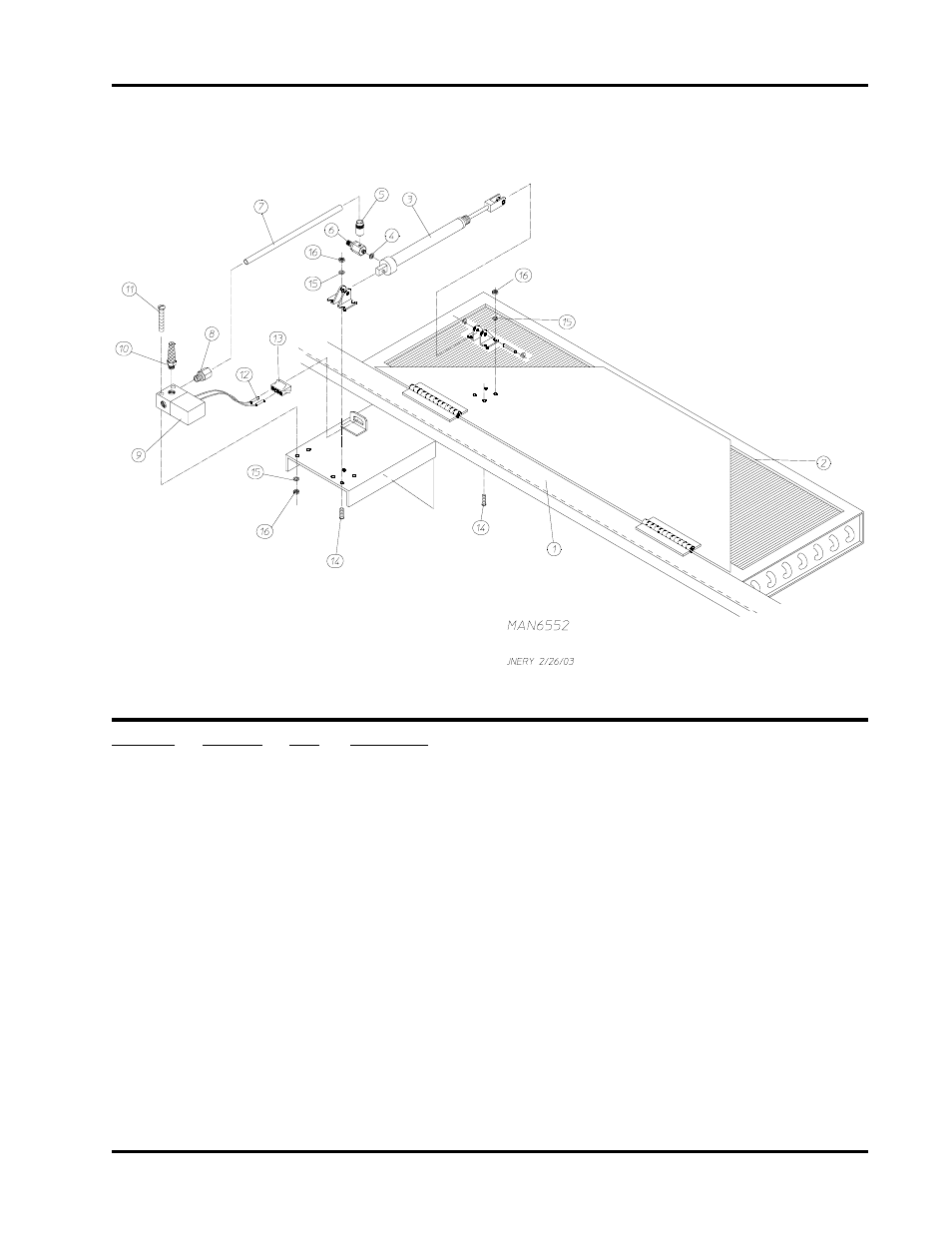

ADS-330/ADS-320 Steam Damper Assembly
Illus. No. Part No. Qty. Description
1 850875 1 ADS-330/ADS-320 Steam Damper Assembly
2 165035 1 ADS-330/ADS-320 Steam Coil Assembly
3 100540 1 Steam Damper Piston (cylinder) Assembly with Pivots and Clevis
(includes illus. nos. 4 through 10)
4 115994 1 Needle Valve Gasket
5 100471 1 1/4” x 10/32” Connector (male)
6 100534 1 Needle Valve
7 143110 1 1/4” Poly-Flo Tubing
8 100472 1 1/4” Poly x 1/8” M.P.T. Connector
9 100498 1 3-Way Micro Valve
10 100520 1 1/8” N.P.T. Silencer (muffler)
11 150002 2 #6-32 x 1” Round Head Machine Screw
12 122701 2 Socket Terminal ONLY
13 122605 1 4-Pin Socket Connector (female)
122801 1 Pin/Socket Extraction Tool...Not Illustrated
14 153560 8 #6-32 x 1/2” Self-Clinching Stud
15 153008 10 #6 Lock Washer
16 152013 10 #6-32 Hex Nut
