40
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

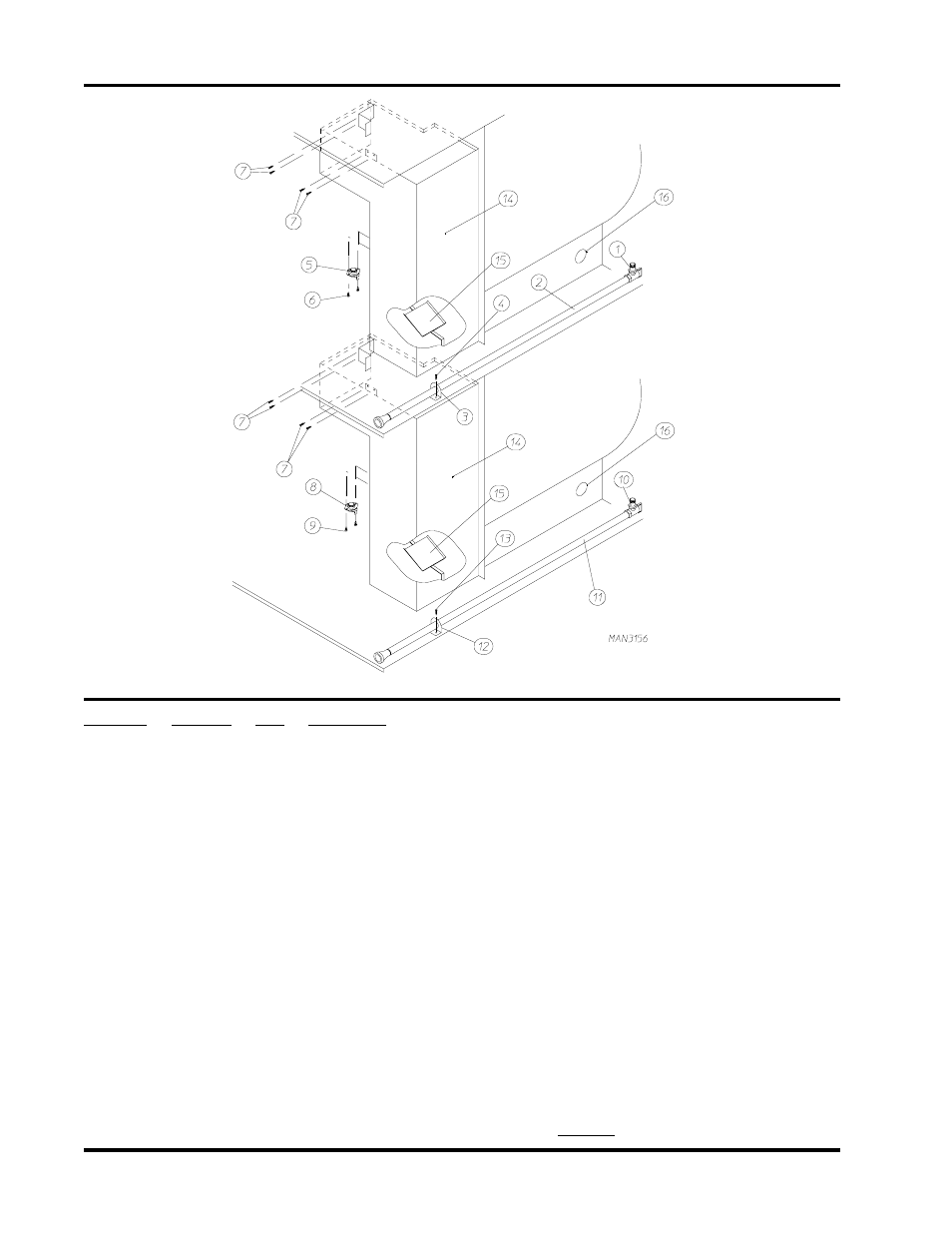

Burner Box/Piping Assemblies
Illus. No. Part No. Qty. Description
1 881367 1 1/2” Union Shut Off with Tail Piece
2 142805 1 1/2” x 34-1/2” Pipe (for ADG-330 Only)
142809 1 1/2” x 29-1/8” Pipe (for ADG-320 Only)
3 318700 1 Pipe Bracket
4 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
5 130403 1 330º Burner Hi-Limit Thermostat
6 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
7 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw
8 130403 1 330º Burner Hi-Limit Thermostat
9 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
10 881367 1 1/2” Union Shut Off with Tail Piece
11 142805 1 1/2” x 34-1/2” Pipe (for ADG-330 Only)
142809 1 1/2” x 29-1/8” Pipe (for ADG-320 Only)
12 318700 1 Pipe Bracket
13 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
14 850854 2 ADG-330/ADG-320 Burner Box without Flame Spreader
15 850912 2 ADG-330/ADG-320 Flame Spreader
16 --------- - Sail Switch
(refer to Sail Switch Assembly on page 42)
