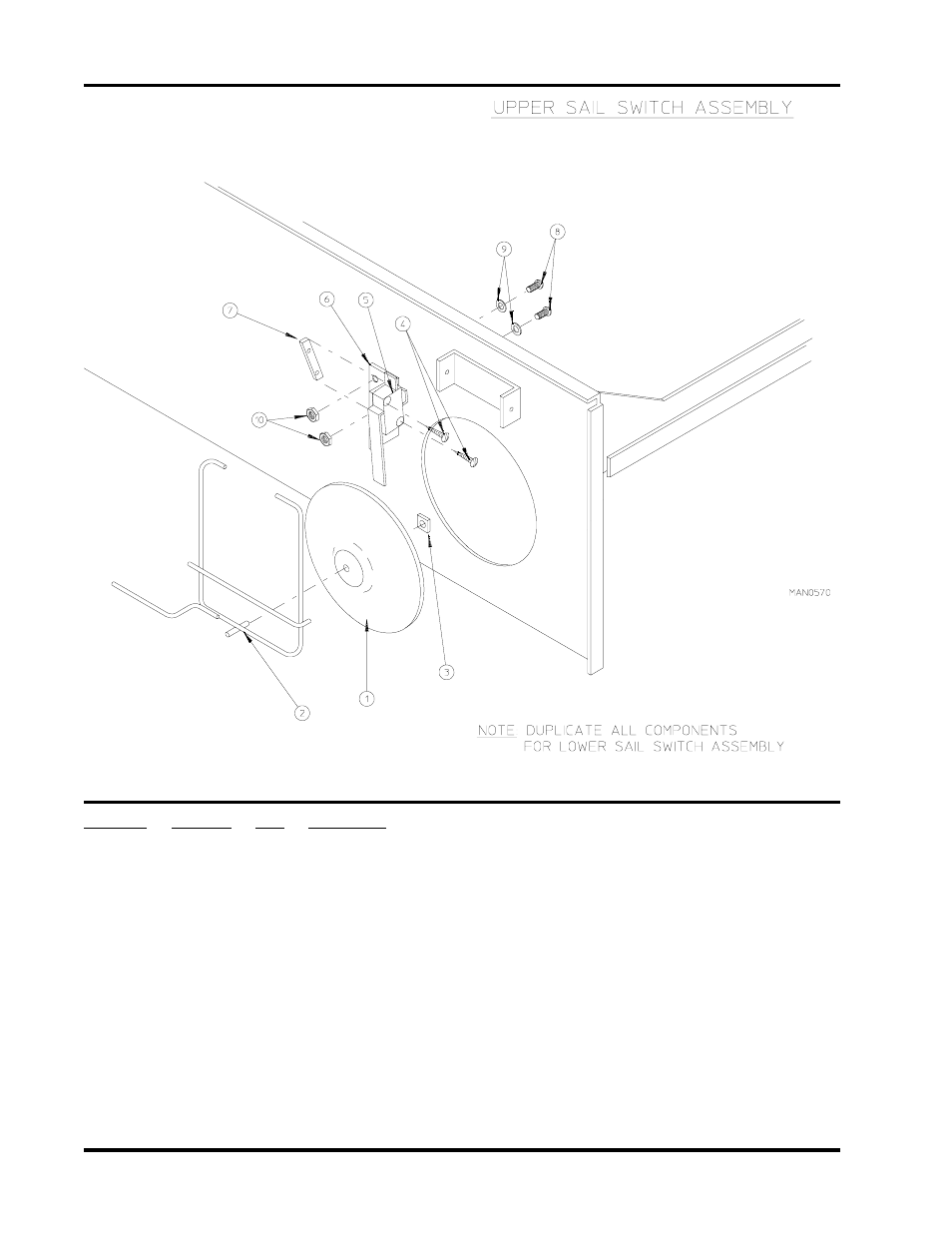

Sail Switch Assembly
Illus. No.
Part No.
Qty.
Description
1
319202
1
Sail Switch Damper
802805
1
AD-330/AD-320 Sail Switch Rod and Damper Assembly
(includes illus. nos. 1 through 3)
2
105550
1
AD-330/AD-320 Sail Switch Rod
3
154002
1
1/8” Push On Fastener
4
150303
2
#4 x 3/4” Pan Head “A” Machine Screw
5
122200
1
Sail Switch ONLY
802807
1
AD-330/AD-320 Sail Switch Bracket Assembly
(includes illus. nos. 4 through 7)
6
319208
1
AD-330/AD-320 Sail Switch Bracket
7
154004
1
Twin Speed Nut
8
150001
2
#6-32 x 1/2” Round Head Machine Screw
9
153010
2
#6 Star Washer
10
152000
2
#6-32 Hex Nut
