Ad-330 lint drawer (basket) assembly – American Dryer Corp. 24 VAC Phase 5 AD-320 User Manual
Page 11
9
Telephone: (508) 678-9000
Fax: (508) 678-9447
Illus. No.
Part No.
Qty.
Description
1
883401
1
AD-330 White Lint Drawer (basket) Assembly Complete
(includes illus. nos. 1 and 2)
883402
1
AD-330 Ivory Lint Drawer (basket) Assembly Complete
(includes illus. nos. 1 and 2)
883403
1
AD-330 Coral Blue Lint Drawer (basket) Assembly Complete
(includes illus. nos. 1 and 2)
883404
1
AD-330 Black Lint Drawer (basket) Assembly Complete
For Stainless Steel Models ONLY
2
117604
3
Neoprene Sponge Tape (sold by the foot)
3
---------
1
Temperature Sensor Bracket
(refer to Temperature Sensor Probe Assembly on page 27)
4
---------
1
Lint Drawer (basket) Switch
(refer to AD-330 Lint Drawer [Basket] Switch Assembly on page 30)
IMPORTANT: For models with optional lock refer to AD-330 Locking Lint Drawer (Basket) Assembly

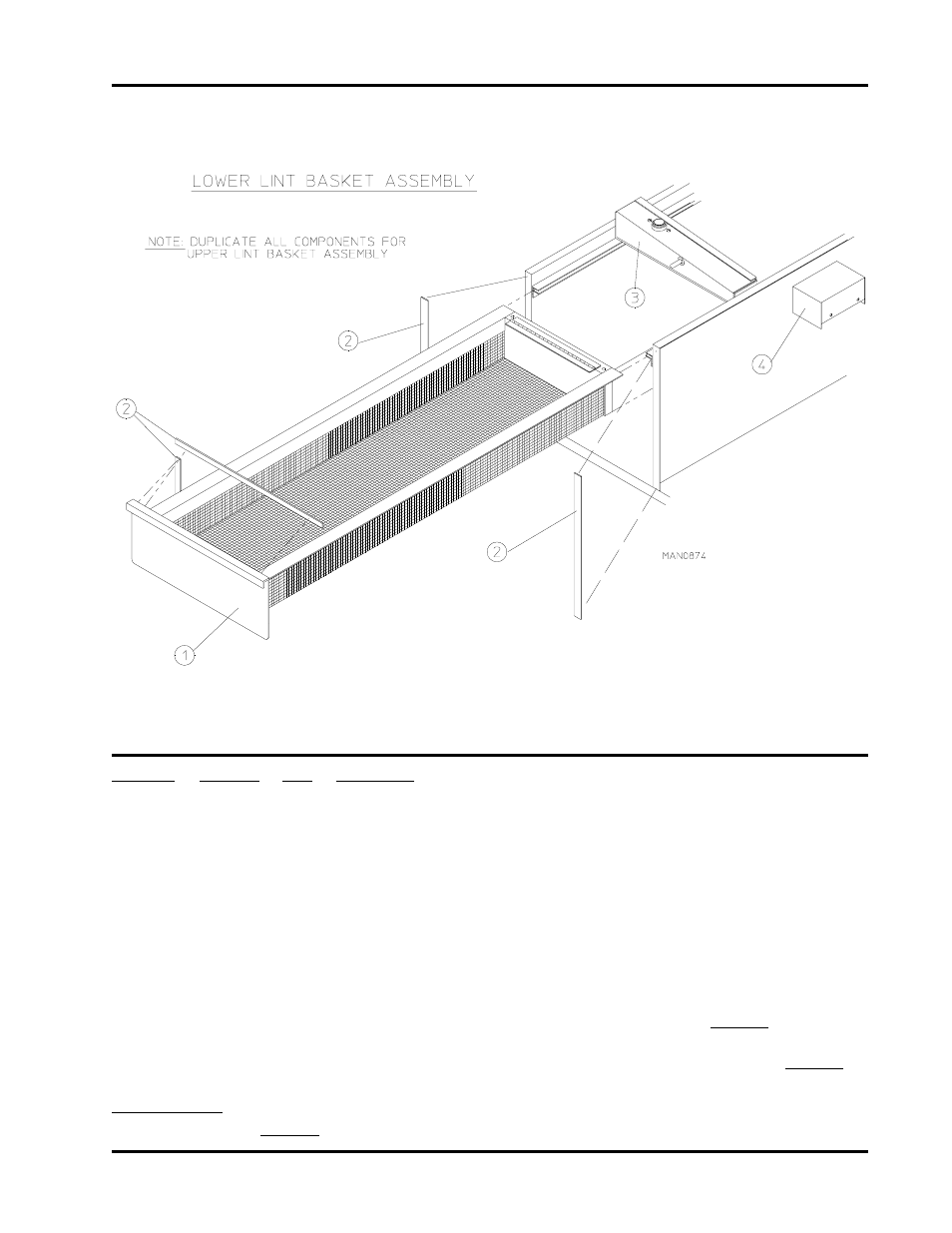

AD-330 Lint Drawer (Basket) Assembly
