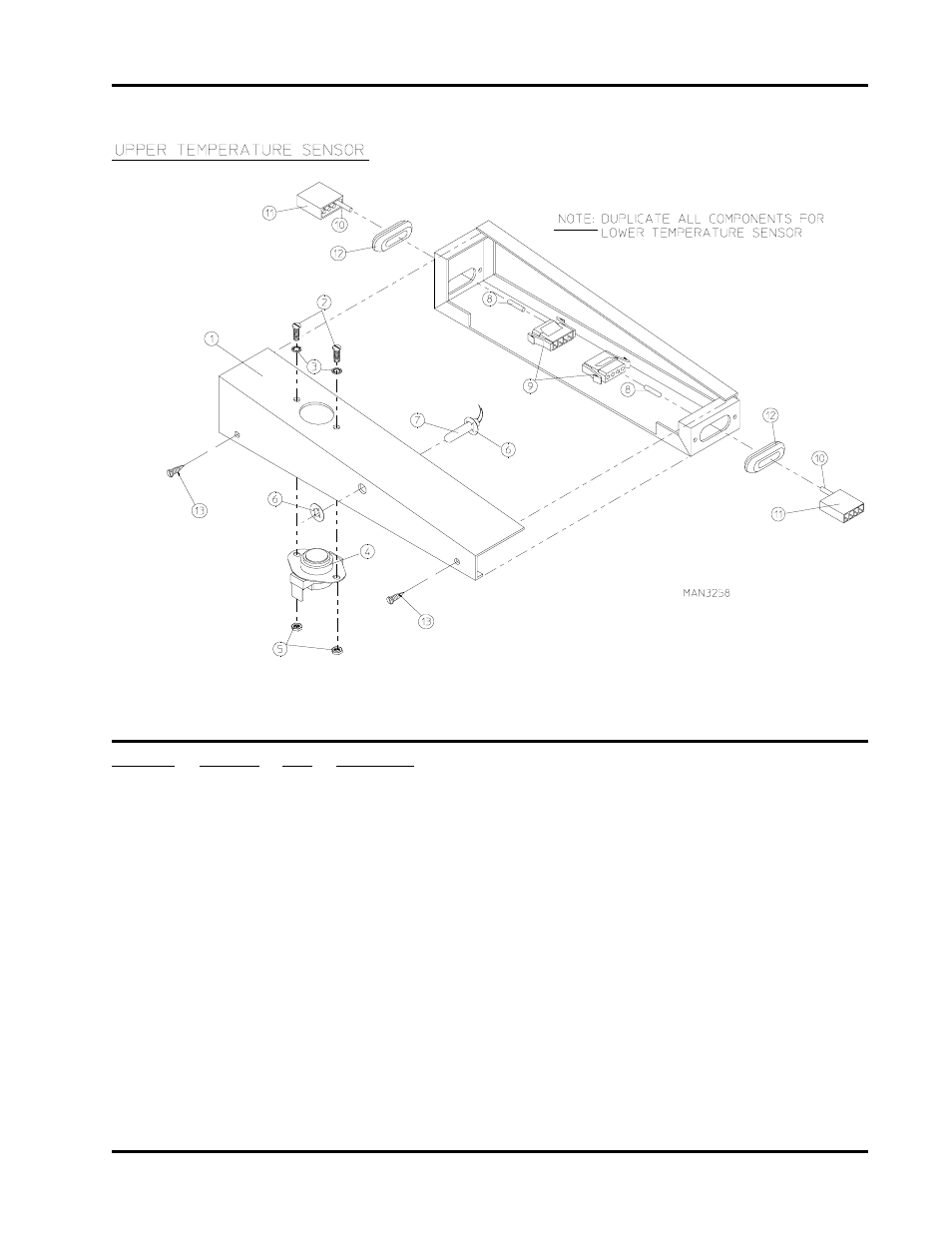

Temperature Sensor Probe Assembly
Illus. No. Part No. Qty. Description
1 801409 1 AD-330/AD-320 Temperature Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 9, 12, and 13)
2 150000 2 #6-32 x 1/4” Round Head Machine Screw
3 153010 2 #6 Star Washer
4 130106 1 170° Large Thermostat
5 152013 2 #6-32 Hex Nut
6 154007 2 1/4” Tinnerman Push On Fastener
7 880111 1 Dual Microprocessor Controller (DMC)
1/4” Temperature Sensor Probe Assembly
(includes illus. nos. 6 through 9)
8 122701 8 Socket Terminal ONLY
9 122605 2 4-Pin Socket Connector ONLY
10 122700 8 Pin Terminal ONLY
11 122604 2 4-Pin Connector ONLY
122801 1 Pin/Socket Extraction Tool...Not Illustrated
12 121405 2 Rubber Grommet
13 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
