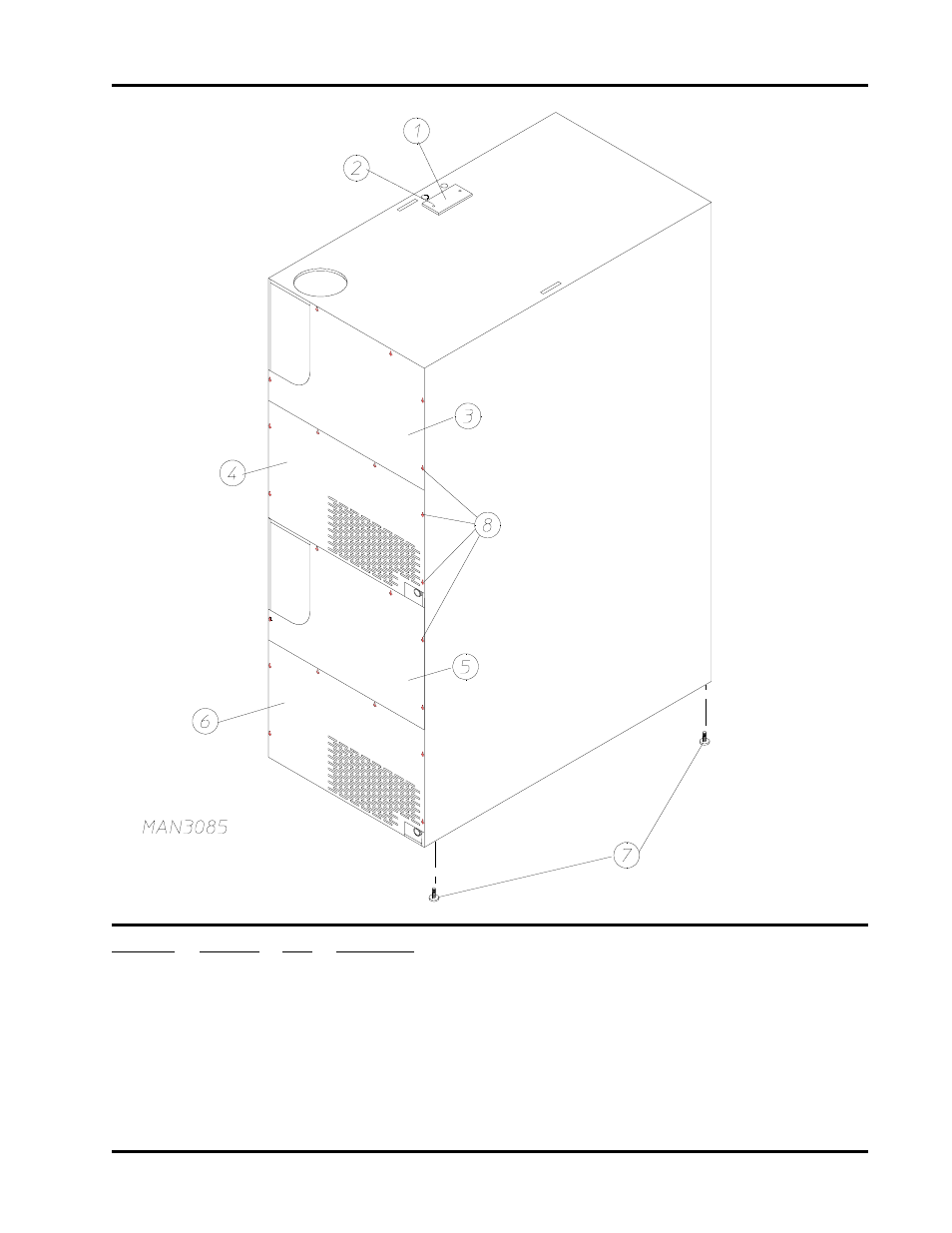

Back Guard Assemblies
Illus. No.
Part No.
Qty.
Description
1
315014
1
Top Electric Box Cover Plate
2
150309
2
#10-16 x 1/2” Hex Head TEK Crimptite Screw
3
314404
1
AD-330/AD-320 Top Upper Guard
4
314405
1
AD-330/AD-320 Top Lower Guard
5
314404
1
AD-330/AD-320 Bottom Upper Guard
6
314405
1
AD-330/AD-320 Bottom Lower Guard
7
103500
4
Adjustable Leveling Leg
8
150309
22
#10-16 x 1/2” Hex Head TEK Crimptite Screw
