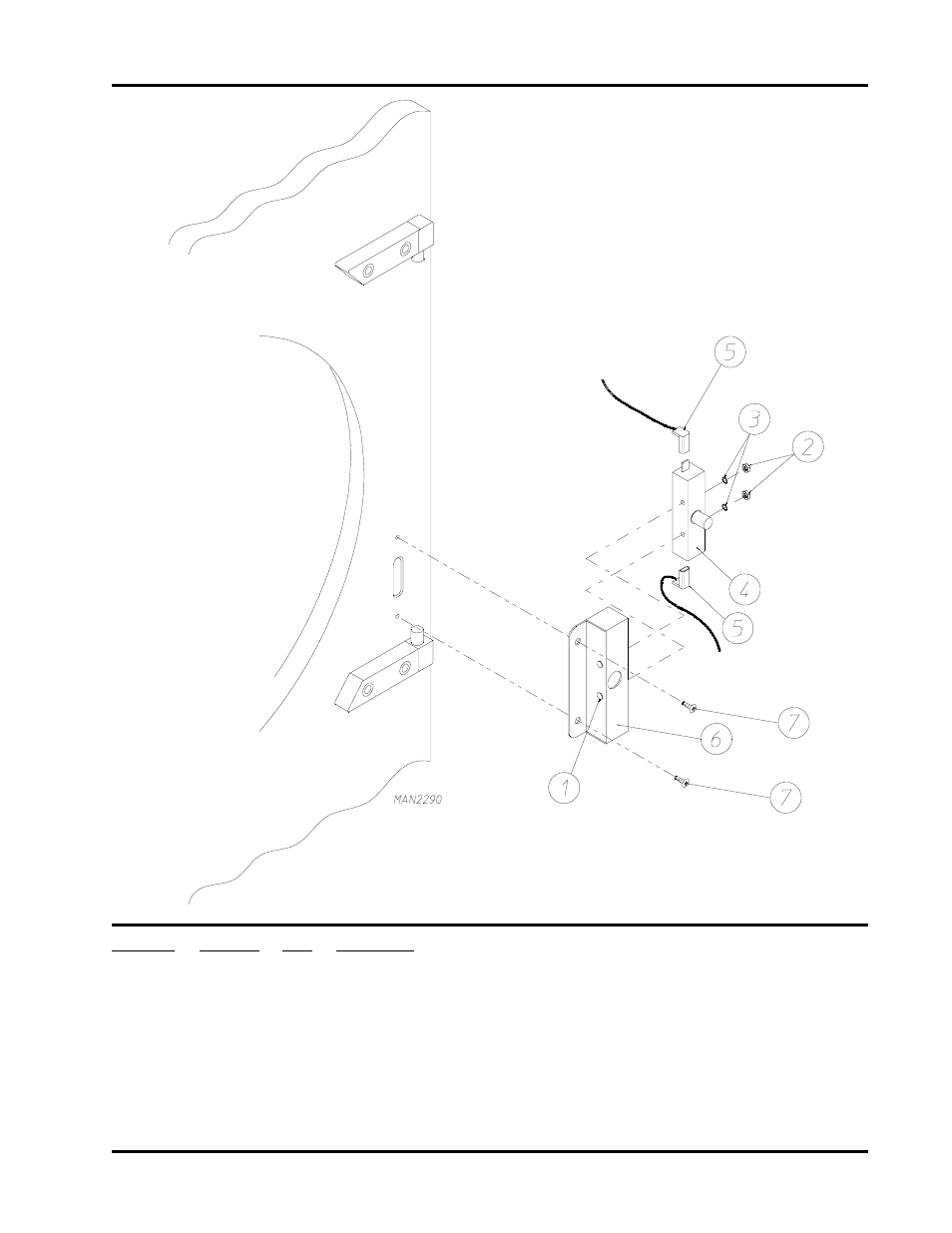

Main Door Switch Assembly For Cold Rolled Steel (CRS) Type Door
Illus. No.
Part No.
Qty.
Description
1
153566
2
#6-32 x 7/8” Clinch Stud
2
152013
2
#6-32 Hex Nut
3
153010
2
#6 Star Washer
4
137005
1
Single-Pole Door Switch
5
122636
2
Flag Terminal
6
881211
1
Main Door Switch Housing
(includes illus. nos. 1 through 3 and 6)
7
150301
2
#8-18 x 7/16” Phillips Pan Head TEK Screw
