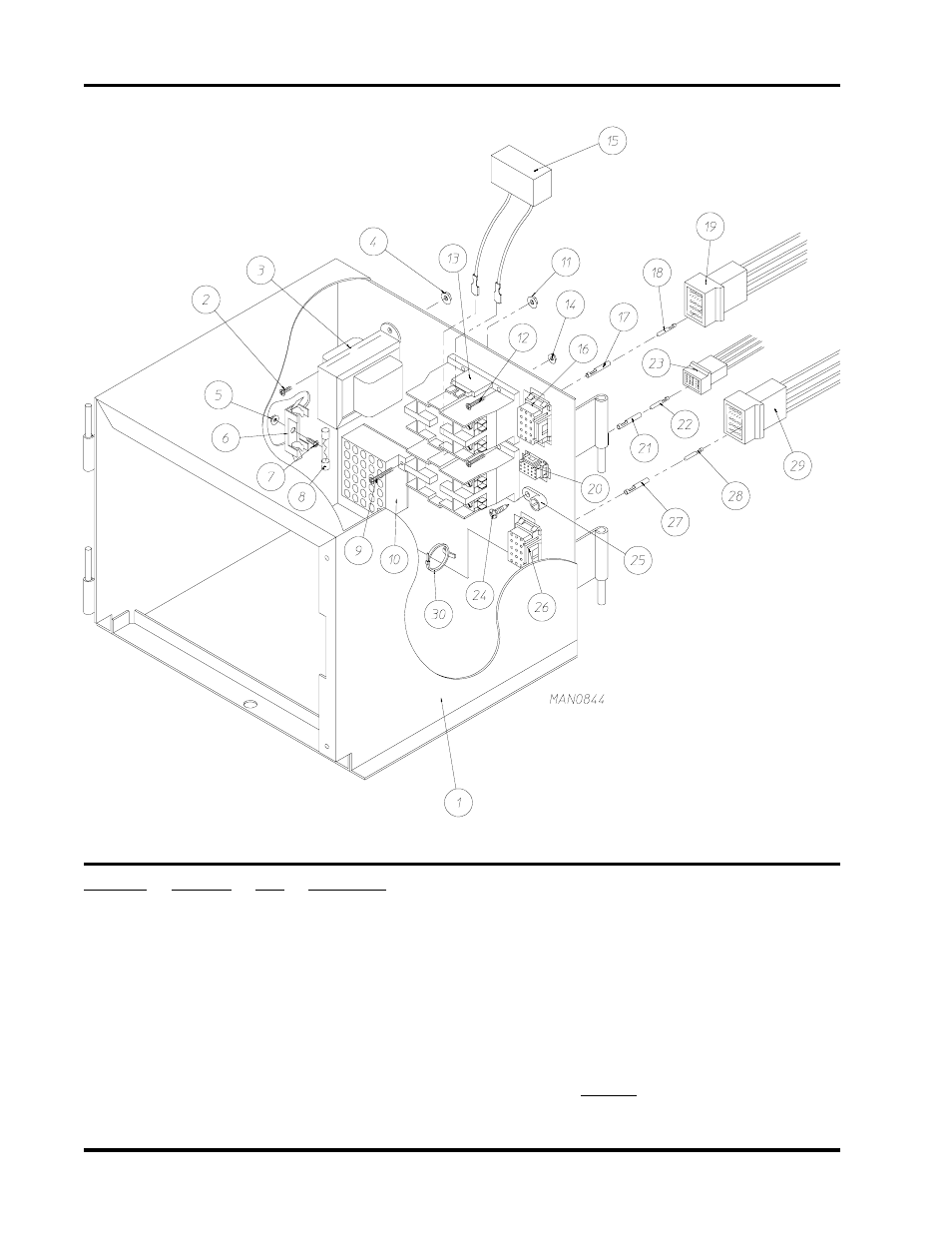

DMC Control Box Assembly
Illus. No.
Part No.
Qty.
Description
1
824439
1
AD-330/AD-320 Electric Box Complete - 120 Volt
(includes illus. nos. 1 through 17, 20, 21, and 24 through 27)
824437
1
AD-330/AD-320 Electric Box Complete - 208 Volt
(includes illus. nos. 1 through 17, 20, 21, and 24 through 27)
824438
1
AD-330/AD-320 Electric Box Complete - 240 Volt
(includes illus. nos. 1 through 17, 20, 21, and 24 through 27)
2
150103
2
#8-32 x 3/4” Phillips Round Head Machine Screw
3
141403
1
Transformer - 24 VAC (gas models Only)
(for electrically heated models refer to page 48)
4
151001
2
#8-32 Pal Nut
5
151000
1
#6-32 Pal Nut
