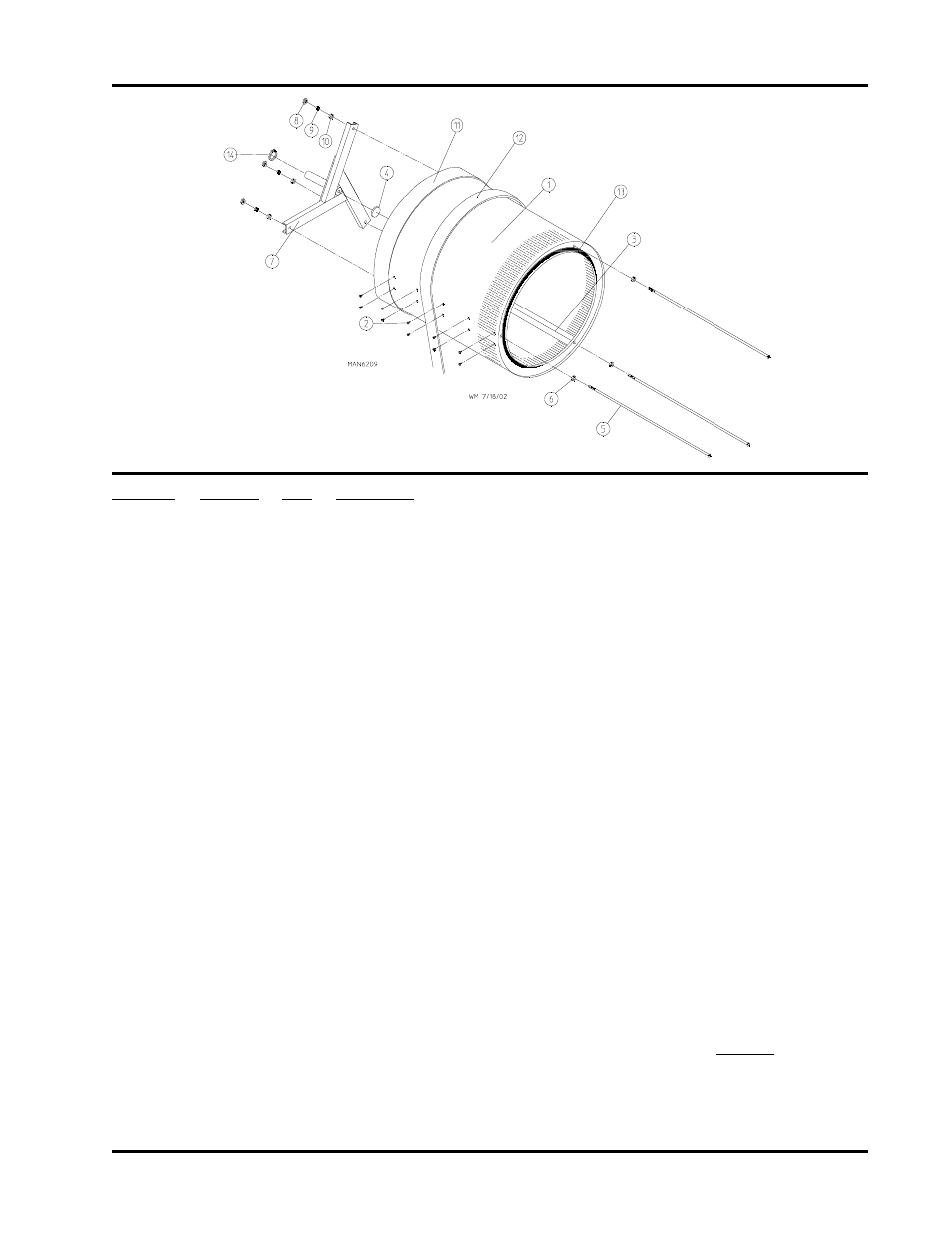

AD-320 Basket (Tumbler)/Support Assemblies
Illus. No. Part No. Qty. Description
1 800835 1 Basket (tumbler) and Support Assembly Complete with Felt Collars
(includes illus. nos. 1 through 11, 13, and 14)
800760 1 Stainless Steel Basket (tumbler) and Support Assembly Complete
with Felt Collars
(includes illus. nos. 1 through 11, 13, and 14)
800726* 1 Basket (tumbler) ONLY without Felt
(includes illus. nos. 1 through 3)
800739* 1 Stainless Steel Basket (tumbler) ONLY without Felt Collars
(includes illus. nos. 1 through 3)
2 150313 30 #10-16 x 1/2” TORX + BTN Head Screw
3 301318 2 Short Basket (tumbler) Rib ONLY
301317 1 Tall Basket (tumbler) Rib ONLY
301432 2 Stainless Steel Short Basket (tumbler) Rib
301431 1 Stainless Steel Tall Basket (tumbler) Rib
4 115986 1 1/4” x 2” Basket (tumbler) Felt Pad
5 882051 3 Tie Rod
(includes illus. nos. 5, 6, and 8 through 10)
6 153004 3 3/8” x 1-1/2” Fender Washer
7 850066 1 Basket (tumbler) Support ONLY
8 152027 3 3/8-18 Hex Lock Nut
9 153005 3 3/8” Lock Washer
10 153004 3 3/8” Flat Washer
11 115999 1 Felt Collar ONLY
401010 1 #847 Adhesive for Felt Collar (5 oz. tube)
12 100173 1 12-Rib 95” (J) Poly Belt
(refer to 12-Rib 95” [J] Poly Belt Arrangement on page 45)
13 115992 1 Inner Ring Felt Collar ONLY
14 100812 1 1-3/8” Retaining Ring
* Felt collars are not included and must be ordered separately.
