AMETEK 952 BlueOx LDT User Manual
Page 22
22
1080 N. Crooks Road • Clawson, MI 48017 • 800.635.0289 • 248.435.0700 • Fax 248.435.8120 • www.AMETEKAPT.com

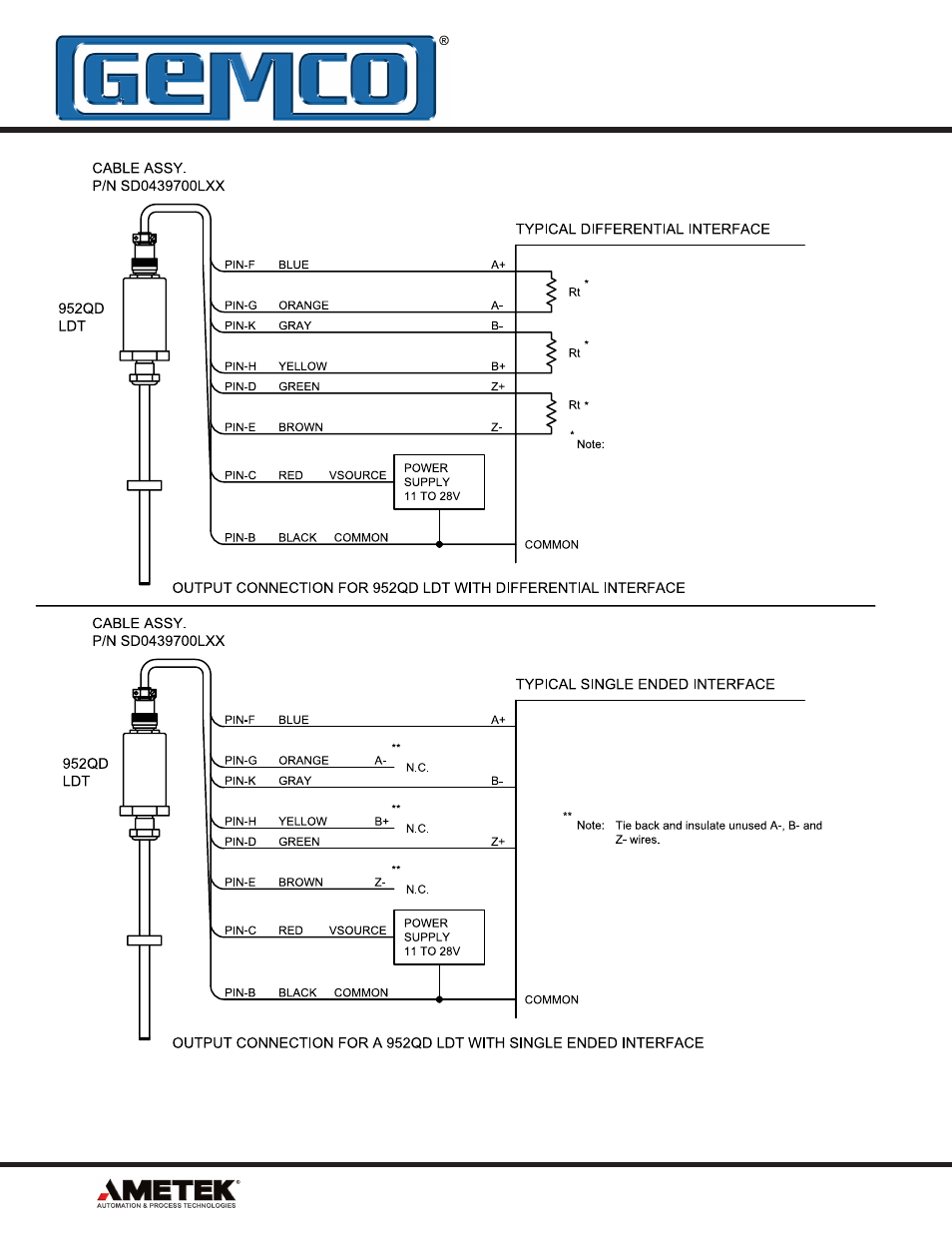

Figure 4-4: Output Signal Connections for 952 QD LDT
Drawing E0237600
Rt is the termination resistor typically used for differ-
ential connections. If these termination resistors
are not internal to the controller, they should be
installed externally at the connector. If these are
not specified or included with the controller, use 1K
Ohm resistors.
