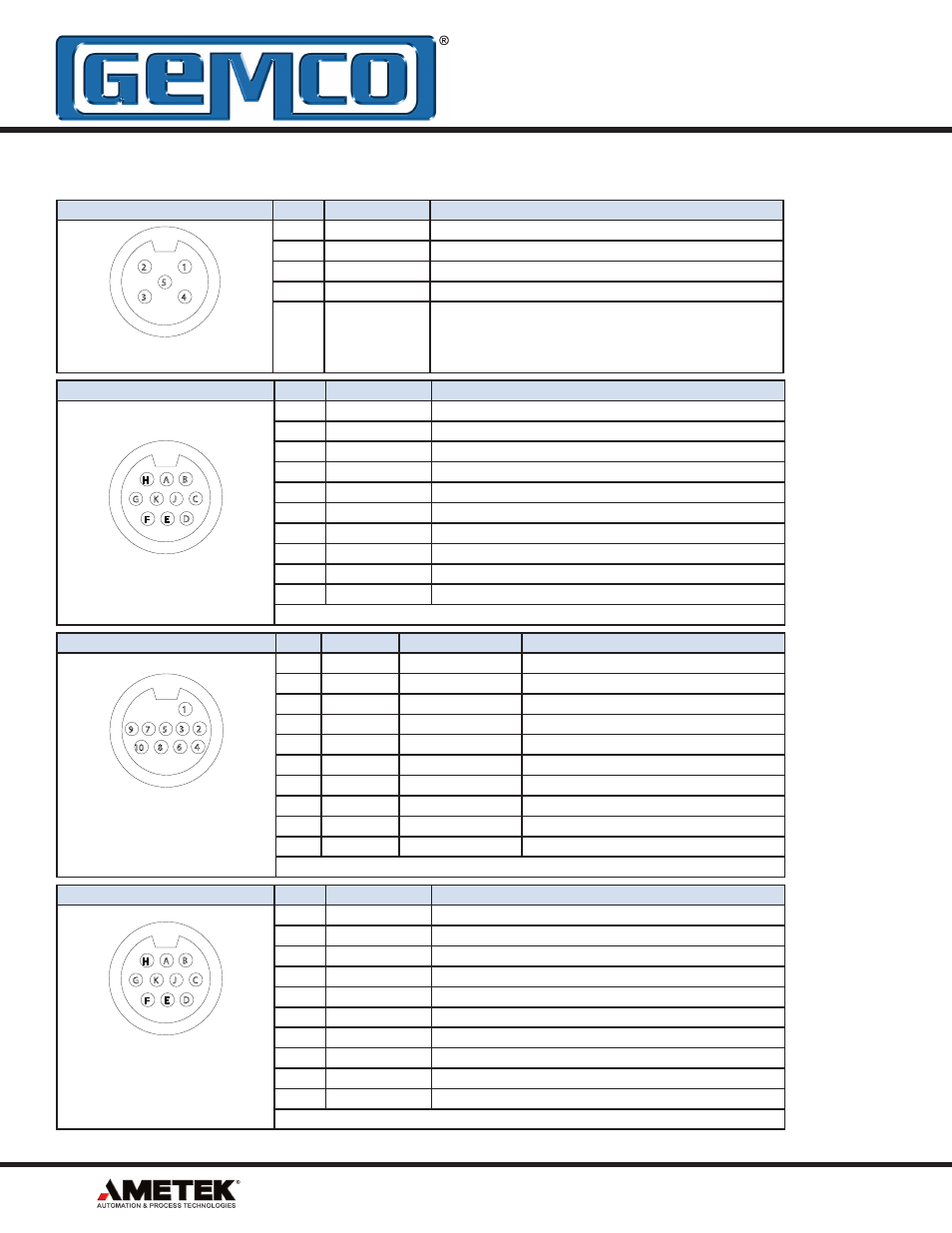

3.4: 952 - Analog Wiring
Connector Option S & C Pin # Wire Color Function
3
2
4
1
5
LDT Connector View
1 Brown Customer Supplied Power (+VDC)
2 White Program Input
3 Blue Power Supply Common
4 Black Position Output
5 Gray Position Common
Connector Option E Pin # Wire Color Function
G K J C
H A B
F E D
LDT Connector View
A White Frame (No Connection)
B Black Power Supply Common
C Red Customer Supplied Power (+VDC)
D Green No Connection
E Brown Position Output
F Blue Program Input
G Orange No Connection
H Yellow 2nd Position Common
J Purple 2nd Power Supply Common
K Gray Position Common
Insulate and tie back any unused wires
Connector Option T & Q Pin # Wire Color Wire Color Striped Function
LDT Connector View
MTS® Connector
Option RB & RC
9 7 5 3
10 8
2
1
6 4
1 White White/Blue Stripe Power Supply Common
2 Brown Blue/White Stripe No Connection
3 Gray White/Orange Stripe Position Common
4 Pink Orange/White Stripe Position Output
5 Red White/Green Stripe Customer Supplied Power (+VDC)
6 Blue Green/White Stripe No Connection
7 Black White/Brown Stripe No Connection (Position output on pins 3 & 4)
8 Purple Brown/White Stripe No Connection (Position output on pins 3 & 4)
9 Yellow White/Gray Stripe No Connection
10 Green Gray/White Stripe Program Input
GEMCO Style 952A LDTs are programmable for zero and span. Position output is on pin 4
Connector Option M Pin # Wire Color Function
LDT Connector View
MTS® Connector
Option RB & RC
G K J C
H A B
F E D
A White Power Supply Common
B
C
Gray Position Common
D Pink Position Output
E Red Customer Supplied Power (+VDC)
F
G Yellow No Connection (Position output on pins 3 & 4)
H Green No Connection (Position output on pins 3 & 4)
J
K
GEMCO style 952A LDTs are programmable for zero and span. Position output is on Pin D
