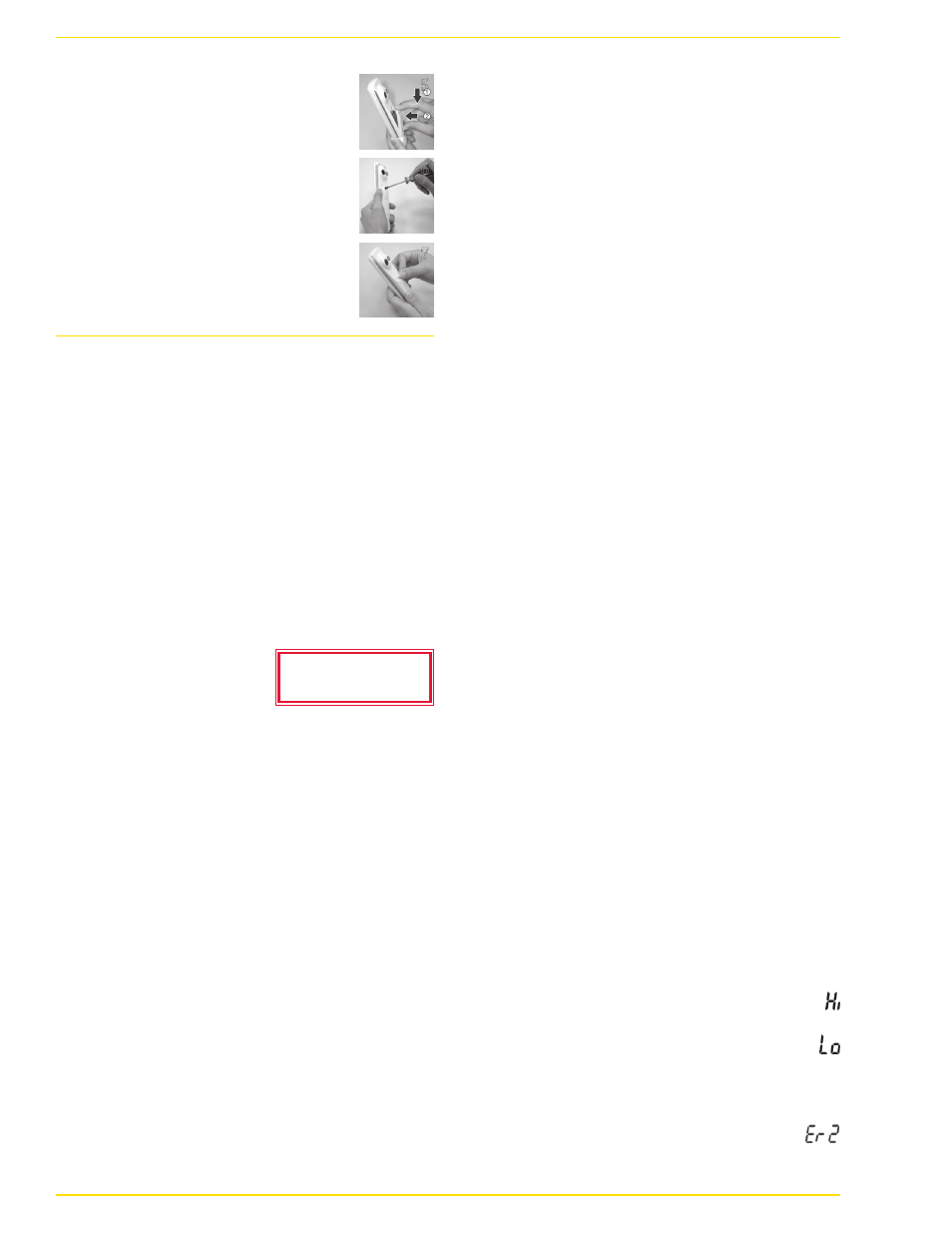

5. Replace the battery cover,
bottom edge first.
Important: The water resistant feature
requires maintaining a tight fit for the
battery cover and the rubber cap.
6. Fasten the screw on the battery
cover by turning it clockwise.
7. Replace the rubber cap over the
screw by pushing it down securely.
Operating Instructions
Mode Selection: MIN Ø MAX Ø LOCK Ø °C/°F Ø EMIS
A. Temperature Scale
To select temperature reading in Fahrenheit or
Celsius:
1. Press the SCAN button to turn the thermometer
on.
2. Press the MODE button four times. The °F or
°C symbol flashes on the display.
3. Press the SCAN button to change the scale.
B. Infrared Thermometer
Infrared is the default mode of the INTP626X.
Note: The INTP626X is intended for food service use — do
not use for safety related applications.
1. Infrared Scanning
a. Distance:Spot = 2.5:1
For example, if the
surface area being
measured is 10" in
diameter, then the
thermometer must be within 25" of the target
for an accurate reading.
b. Aim the infrared lens at the target and press
the SCAN button to display the surface
temperature. The white light automatically
turns on to illuminate the target.
c. Measurement continues as long as the
SCAN button is pressed. The newest reading
updates the display.
d. When the SCAN button is released, HOLD
appears on the display and the last reading
remains visible for 15 seconds before the unit
automatically powers off.
2. Minimum Mode
a. Press the SCAN button to turn the
thermometer on.
b. Press the MODE button once. MIN flashes on
the display.
c. Press and hold the SCAN button to confirm
the Minimum Mode and display the lowest
temperature among multiple targets.
3. Maximum Mode
a. Press the SCAN button to turn the
thermometer on.
b. Press the MODE button twice. MAX flashes
on the display.
c. Press and hold the SCAN button to confirm
the Maximum Mode and display the highest
temperature among multiple targets.
4. Lock Mode
This is particularly useful for continuous
temperature monitoring.
a. Press the SCAN button to turn the
thermometer on.
b. Press the MODE button three times. LOCK
flashes on the display.
c. Press the SCAN button to confirm the
Lock Mode. The thermometer continuously
displays the temperature for up to 60 minutes
or until the SCAN button is pressed again.
5. Emissivity
Everything gives off a certain amount of
radiation. Emissivity is the measure of this
thermal radiation. The infrared thermometer is
supplied with a default emissivity of 0.95, which
standard for most uses. The emissivity of the
thermometer can be changed from 0.05 (5E) to
1 (100E). Only experienced personnel should
attempt to make changes. For information
relating to the emissivity of specific materials,
please contact CDN.
a. Press the SCAN button to turn the
thermometer on.
b. Press the MODE button five times to enter
Emissivity Mode. 95E flashes on the display.
c. Press the SCAN button to adjust the
emissivity value in 0.01 (1E) increments.
d. Press the MODE button again to exit
Emissivity Mode.
Note: Non-contact infrared thermometers are not
recommended for use in measuring the temperature of
shiny or polished metals.
6. Error Messages
The INTP626X incorporates visual diagnostic
messages as follows:
a.
HI or LO is displayed when the temperature
being measured is outside the infrared range
of the instrument.
1.)
HI indicates that the temperature is
higher than +482°F/+250°C.
2.) LO indicates that the temperature is
lower than -67°F/–55°C.
b. Allow a minimum 30 minutes for the
thermometer to stabilize to the working/
room temperature.
1.)
ER2 is displayed when the
Distance:Spot (FOV)= 2.5:1
Emissivity = 0.1~1, Step .01
Wave Length = 8µm-14µm
