PARAMETER MENU
RESTORE FACTORY DEFAULTS
Use the RST and/or arrow keys to display and
press PAR . The meter will display and then returns
to . Press DSP key to return to the Display Mode.
This will overwrite all programmed user settings with the
Factory Default Settings shown in the Parameter Value Chart. For the PAXCK,
the Time and Date stored in the Real-Time Clock, as well as the RTC
Claibration Offset value, are NOT overwritten by this parameter. However, the
Time and Date Display Formats will revert back to the Factory Default Settings.
ª
«
TROUBLESHOOTING
For further assistance, contact technical support at the appropriate company numbers listed.
6.9 MODULE 9 - F
ACTORY
S
ERVICE
O
PERATIONS
( )

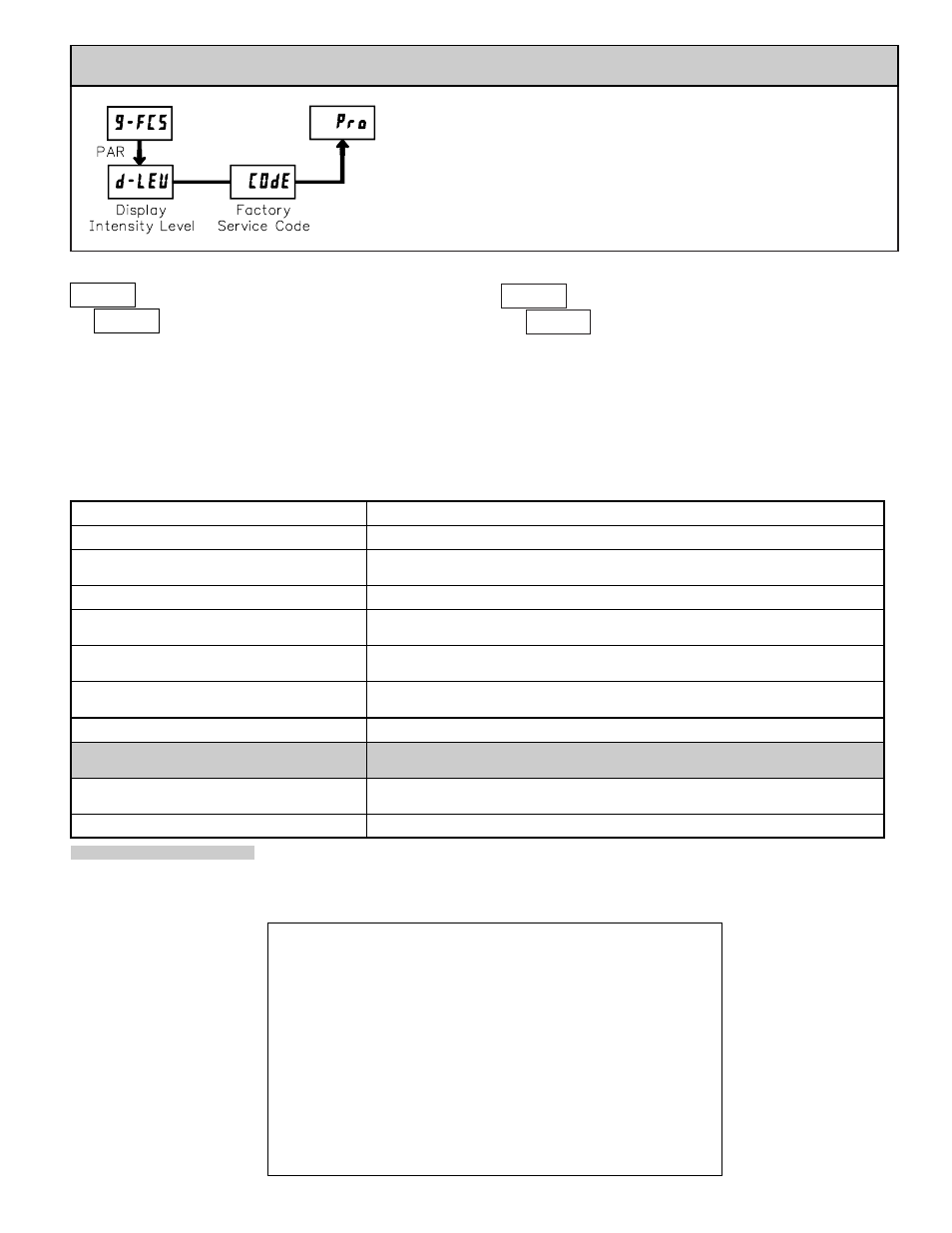

Enter the desired Display Intensity Level (0-15) by
using the arrow keys. The display will actively dim or
brighten as the levels are changed. This parameter also
appears in Quick Programming Mode when enabled.
DISPLAY INTENSITY LEVEL
ª
« E-&7
PROBLEM REMEDIES
NO DISPLAY CHECK: Power level, power connections
PROGRAMMING LOCKED-OUT
CHECK: User input set for program lock-out function is in Active state
ENTER: Security code requested
TIMER NOT RUNNING
CHECK: Input wiring, Timer plug jumper setting, Timer input programming in Module 1,
input signal level, Timer Inhibited by Input B or a user input
CERTAIN DISPLAYS ARE LOCKED-OUT CHECK: Display Lock-out programming in Module 3
MODULES or PARAMETERS NOT ACCESSIBLE
CHECK: Corresponding plug-in card installation, Program Lock-out/ Value Access
parameter programming in Module 3
USER INPUT NOT WORKING PROPERLY
CHECK: User input wiring, user input plug jumper setting, user input signal level,
user input programming in Module 2
OUTPUTS NOT WORKING PROPERLY CHECK: Setpoint plug-in card installation, wiring, Setpoint programming in Module 6
REAL-TIME CLOCK NOT WORKING PROPERLY
CHECK: RTC plug-in card installation, RTC programming in Module 8, check for
proper battery installation, replace battery. DO NOT ADJUST TRIM CAP ON RTC CARD!
SERIAL COMMUNICATIONS NOT WORKING
CHECK: Serial plug-in card installation, Serial wiring, Serial settings in Module 7,
host settings
ERROR CODE ( ) PRESS: Reset key (If unable to clear, contact factory.)
Shaded areas are model dependent.
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship
for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except those
expressly contained herein. The Customer acknowledges the disclaimers and limitations contained
herein and relies on no other warranties or affirmations.
