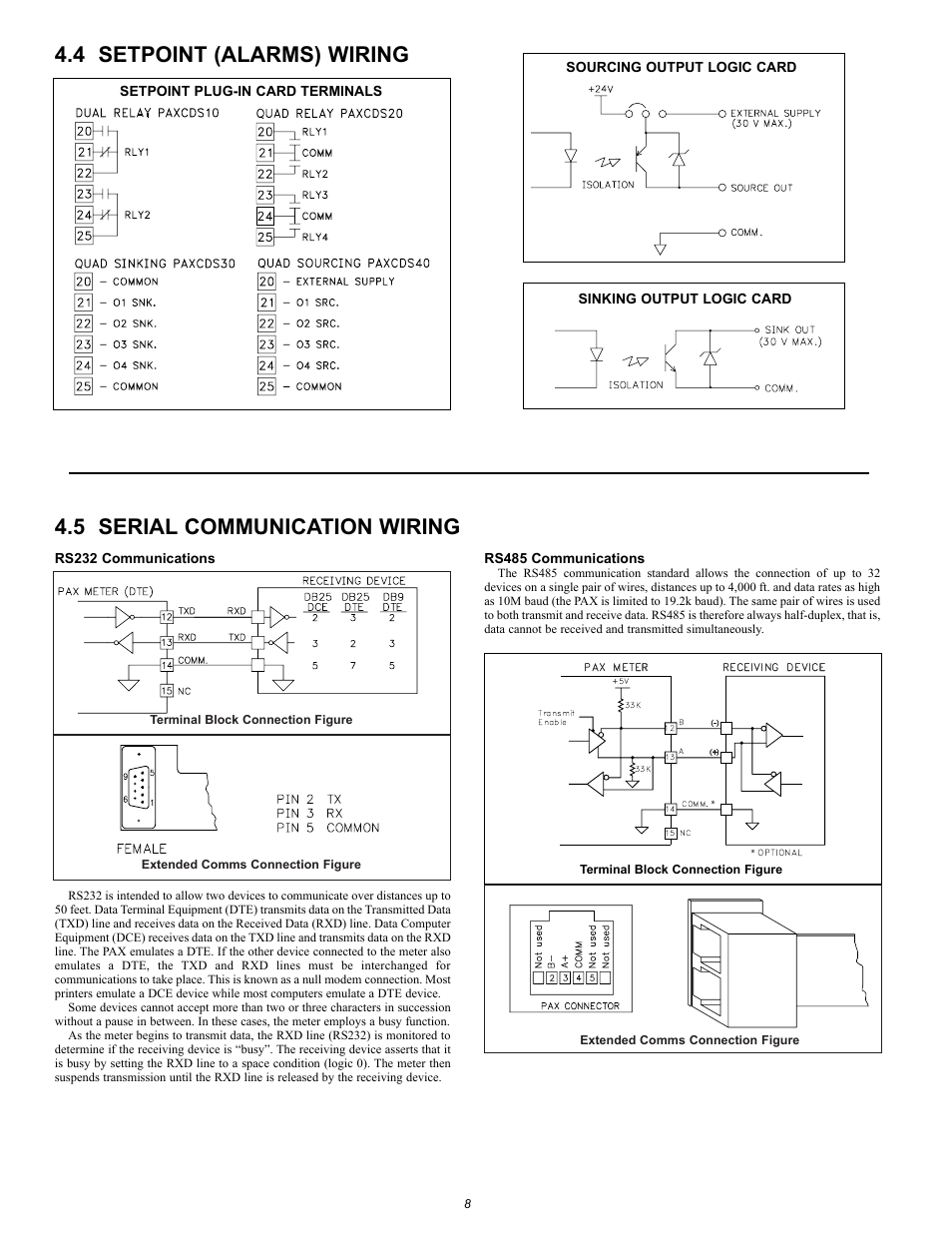

4 setpoint (alarms) wiring, 5 serial communication wiring, Rs232 communications – Red Lion PAXCK User Manual
Page 8: Rs485 communications
