5

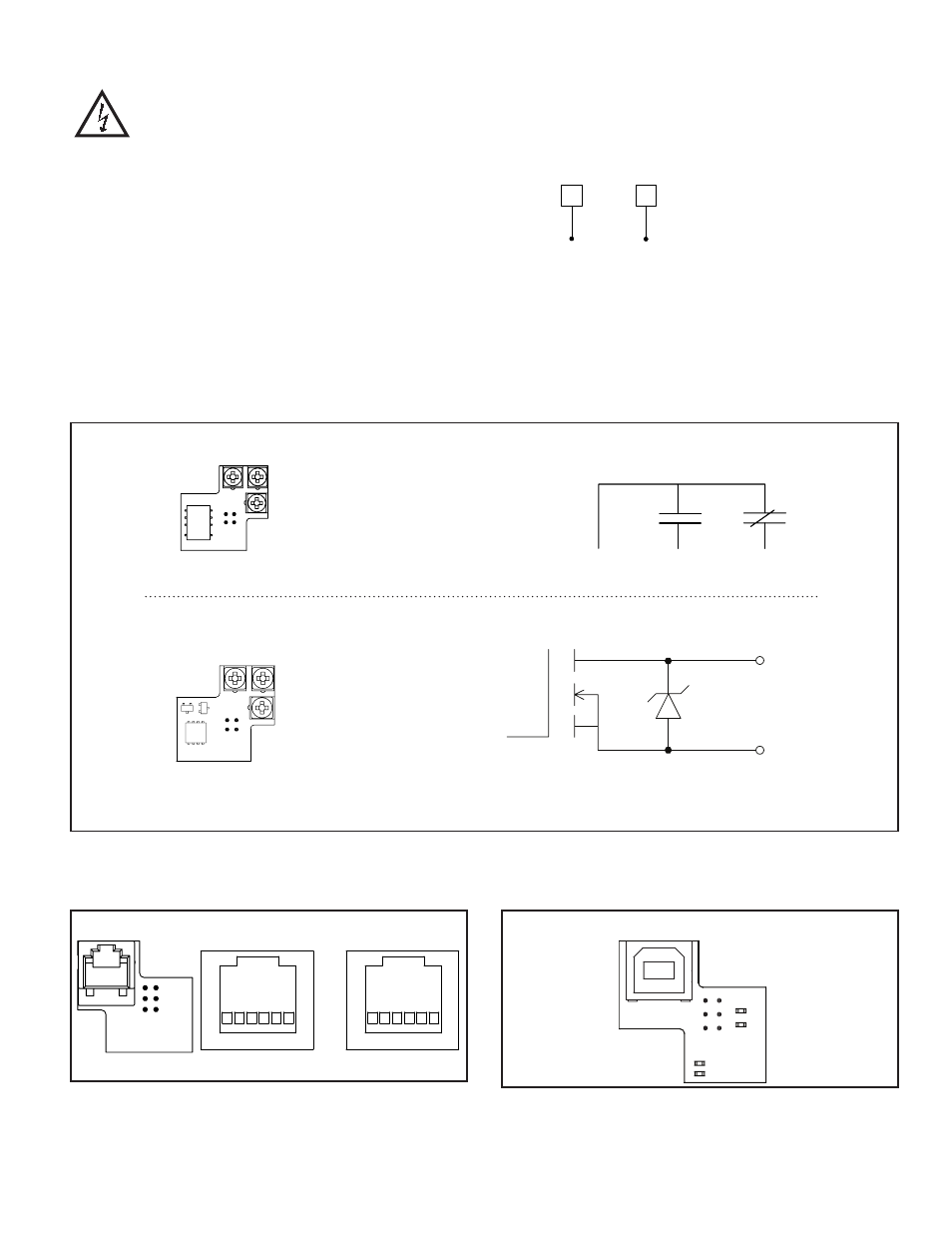

4.3 INPUT WIRING
CAUTION: Power input common is NOT isolated from user and input
commons. In order to preserve the safety of the meter application, the
power input common must be suitably isolated from hazardous live earth
referenced voltage; or input common must be at protective earth ground
potential. If not, hazardous voltage may be present at the signal or user
inputs and input common terminals. Appropriate considerations must then be given
to the potential of the user and input commons with respect to earth ground; and the
common of the plug-in cards with respect to input common.
Before connecting signal wires, the Input Range Jumper should be verified for proper
position.
4.4 SETPOINT (OUTPUT) WIRING
COM
N.C.
N.O.
SINGLE SETPOINT RELAY PLUG-IN CARD
Voltage Signal
(self powered)
- +
COMM INP+
COM N.O. N.C.
ELECTRICAL CONNECTIONS
DUAL SETPOINT N-FET OPEN DRAIN PLUG-IN CARD
COM
OSNK 1(2)
(30 V MAX.)
ELECTRICAL CONNECTIONS
OSNK1
OSNK2
COM
JUMPER
POSITION
MAX INPUT
VOLTAGE
200 mV ⁄ 2 VDC 75 VDC
20V ⁄ 200 VDC 250 VDC
Output Common is not isolated from DC Power Common. Load must be
wired between OSNK terminal and V+ of the load supply.
4.5 SERIAL COMMUNICATION WIRING
N/
C
RS485
2
COMM A+ B- N/
C
5 3 4
N/
C
RS232
5
N/
C
TX N/
C
4 3
COMM COMM
2
RX
6 1 6 1
4.6 USB PROGRAMMING
USB PROGRAMING PLUG-IN CARD SERIAL COMMUNICATIONS PLUG-IN CARD
RJ11 CONNECTOR PIN OUTS
