1

FOUR SELECTABLE D.C. RANGES

0 to 200 mV, 2 V, 20 V, 200 V

MINIMUM AND MAXIMUM DISPLAY CAPTURE

LCD, REFLECTIVE OR RED/GREEN LED BACKLIGHTING

0.48" (12.2 mm) HIGH DIGITS

OPTIONAL SETPOINT OUTPUT CARDS

OPTIONAL SERIAL COMMUNICATIONS CARDS (RS232 or RS485)

OPTIONAL USB PROGRAMMING CARD

OPERATES FROM 9 TO 28 VDC POWER SOURCE

FRONT PANEL OR CRIMSON PROGRAMMABLE

DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT

NEMA 4X/IP65 SEALED FRONT BEZEL

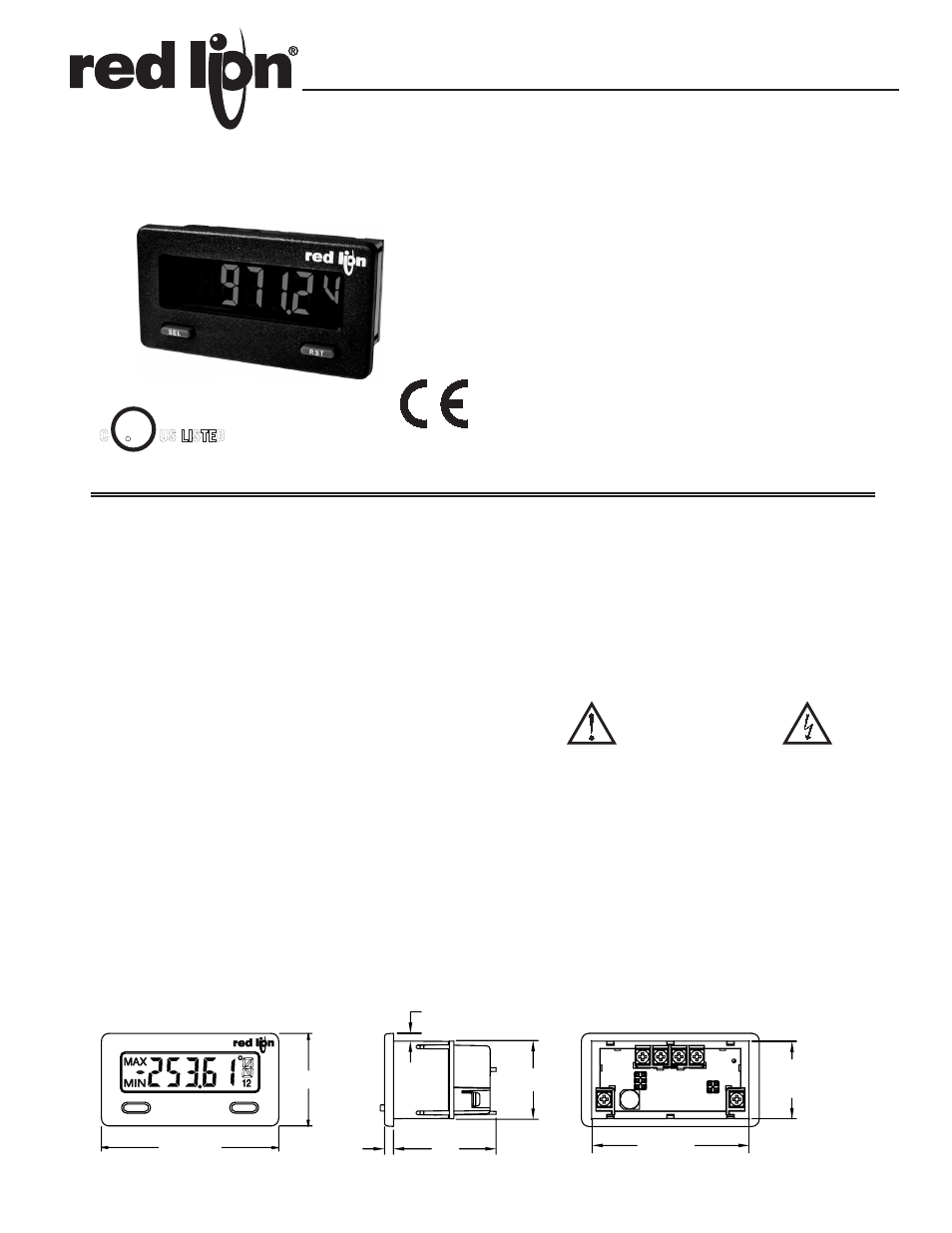

MODEL CUB5V - MINIATURE ELECTRONIC 5-DIGIT DC VOLTMETER

GENERAL DESCRIPTION

The CUB5 provides the user the ultimate in flexibility, from its complete user

programming to the optional setpoint control and communication capability.

The CUB5V accepts a DC Voltage input signal and provides a display in the

desired unit of measure. The meter also features minimum and maximum

display capture, display offset, units indicator, and programmable user input.

The display can be toggled either manually or automatically between the

selected displays.

The CUB5 display has 0.48" (12.2 mm) high digits. The LCD is available in

two versions, reflective and red/green backlight. The backlight version is user

selectable for the desired color and also has variable display intensity.

The capability of the CUB5 can be easily expanded with the addition of

option cards. Setpoint capability is field installable with the addition of the

setpoint output cards. Serial communications capability for RS232 or RS485 is

added with a serial option card.

The CUB5 can be powered from an optional Red Lion Micro-Line/Sensor

Power Supply (MLPS), which attaches directly to the back of a CUB5. The

MLPS is powered from 85 to 250 VAC and provides up to 400 mA to drive the

unit and sensors.

VOLTAGE

The CUB5V is the DC Volt meter. It features 4 voltage input ranges, that are

selected by the user via a programming jumper and software input range

selection. The ranges consist of following: 0 to 200 mV, 2 V, 20 V, 200 V. Users

should select the appropriate voltage range that covers their maximum input.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in this

literature or on equipment must be observed to ensure personal safety and to

prevent damage to either the instrument or equipment connected to it. If

equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

Do not use this meter to directly command motors, valves, or other actuators

not equipped with safeguards. To do so can be potentially harmful to persons or

equipment in the event of a fault to the meter.

Bulletin No. CUB5V-G
Drawing No. LP0645
Released 02/13

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

CAUTION: Risk of Danger.

Read complete instructions prior to

installationand operation of the unit.

CAUTION: Risk of electric shock.

DIMENSIONS In inches (mm)

.13 (3.3)

(43.4)

1.71

2.95 (74.9)

SEL

.15 (3.8)

1.54 (39.1)

RST

(68 )

+.025

-.000

+8

-0

1.29 (32.8)

2.68

-.000

1.30

(33 )

-0

+6

+.024

Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.

C

US LISTED

UL

R

51EB

IND. CONT. EQ.
