LIMITED WARRANTY

The Company warrants the products it manufactures against defects in materials and workmanship for a period limited to two
years from the date of shipment, provided the products have been stored, handled, installed, and used under proper conditions.
The Company’s liability under this limited warranty shall extend only to the repair or replacement of a defective product, at The
Company’s option. The Company disclaims all liability for any affirmation, promise or representation with respect to the
products.

The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against damages, claims, and
expenses arising out of subsequent sales of RLC products or products containing components manufactured by RLC and based
upon personal injuries, deaths, property damage, lost profits, and other matters which Buyer, its employees, or sub-contractors
are or may be to any extent liable, including without limitation penalties imposed by the Consumer Product Safety Act (P.L.
92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty Act (P.L. 93-637), as now in effect or
as amended hereafter.

No warranties expressed or implied are created with respect to The Company’s products except those expressly contained herein.
The Customer acknowledges the disclaimers and limitations contained herein and relies on no other warranties or affirmations.

O

PTIONAL

F

EATURES

AND

A

CCESSORIES

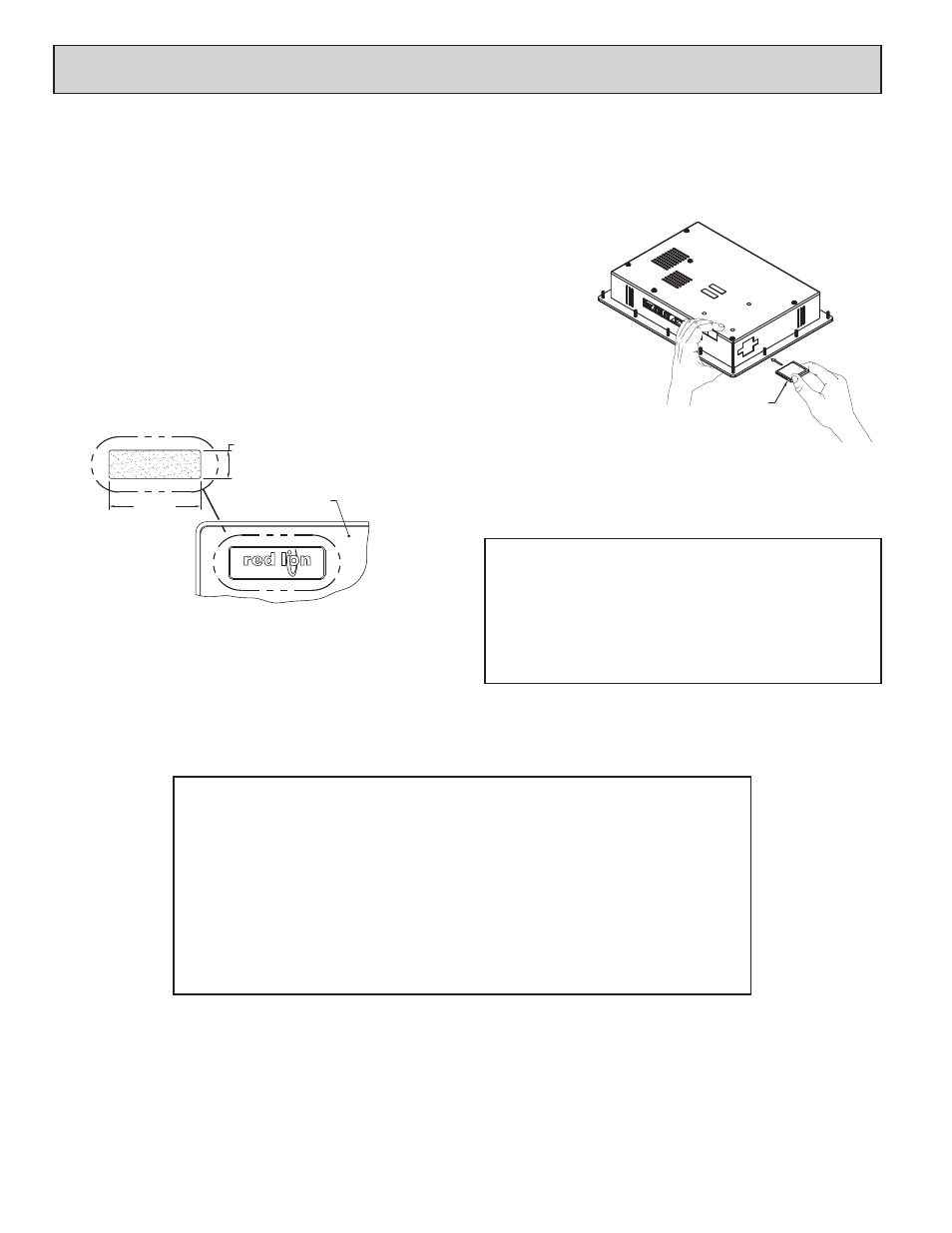

COMPACTFLASH SOCKET

CompactFlash socket is a Type II socket that can accept either Type I or II

cards. Use cards with a minimum of 4 Mbytes and a maximum of 2 Gbytes with
the G310’s CompactFlash socket. Cards are available at most computer and
office supply retailers.

CompactFlash can be used for configuration transfers, larger configurations,

data logging, and trending.

Information stored on a CompactFlash card by a G310 can be read by a card

reader attached to a PC. This information is stored in IBM (Windows

®

) PC

compatible FAT16 file format.

CompactFlash-
Insert Face Up

CompactFlash

(Top Side)

INDOOR VERSUS OUTDOOR

Red Lion offers two versions of its G310 unit. The G310C000 uses an overlay

with a textured finish and keys that are embossed. This overlay is not rated for
outdoor use. The G310S000 uses an overlay with a glossy finish that uses UV
rated material for outdoor use. The keys on this overlay are not embossed. The
display is significantly brighter than the G310C000.

OPTIONAL COMMUNICATION CARD

Red Lion offers optional communication cards for fieldbus communications.

These communication cards will allow your G310 to communicate with many
of the popular fieldbus protocols.

Red Lion is also offering a communications card for additional RS232 and

RS422/485 communications. Visit Red Lion’s website for information and
availability of these cards.

CUSTOM LOGO

Each G3 operator interface has an embossed area containing the Red Lion

logo. Red Lion can provide custom logos to apply to this area. Contact your
distributor for additional information and pricing.

Note: Do not remove or insert
the CompactFlash card while
power is applied. Refer to
“Front Panel LEDs.”

.51 (13)

1.65 (42)

FRONT OVERLAY

Red Lion Controls
Headquarters
20 Willow Springs Circle
York PA 17406
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839

Red Lion Controls

China

Unit 101, XinAn Plaza

Building 13, No.99 Tianzhou Road

ShangHai, P.R. China 200223

Tel +86 21 6113-3688

Fax +86 21 6113-3683

Red Lion Controls

Europe

Printerweg 10

NL - 3821 AD Amersfoort

Tel +31 (0) 334 723 225

Fax +31 (0) 334 893 793

Red Lion Controls

India

54, Vishvas Tenement

GST Road, New Ranip,

Ahmedabad-382480 Gujarat, India

Tel +91 987 954 0503

Fax +91 79 275 31 350

NOTE

For reliable operation of this and other Red Lion products, one of the

following brands of CompactFlash card must be used...

SimpleTech SMART

®

Modular

SanDisk

®

Silicon Systems

Not all of the above manufacturers offer CompactFlash cards recognized

to UL standards, which may be required for your application.
