Wiring, Wiring connections, Gmp1 input connections – Red Lion GMPID Single and Dual PID Modules User Manual

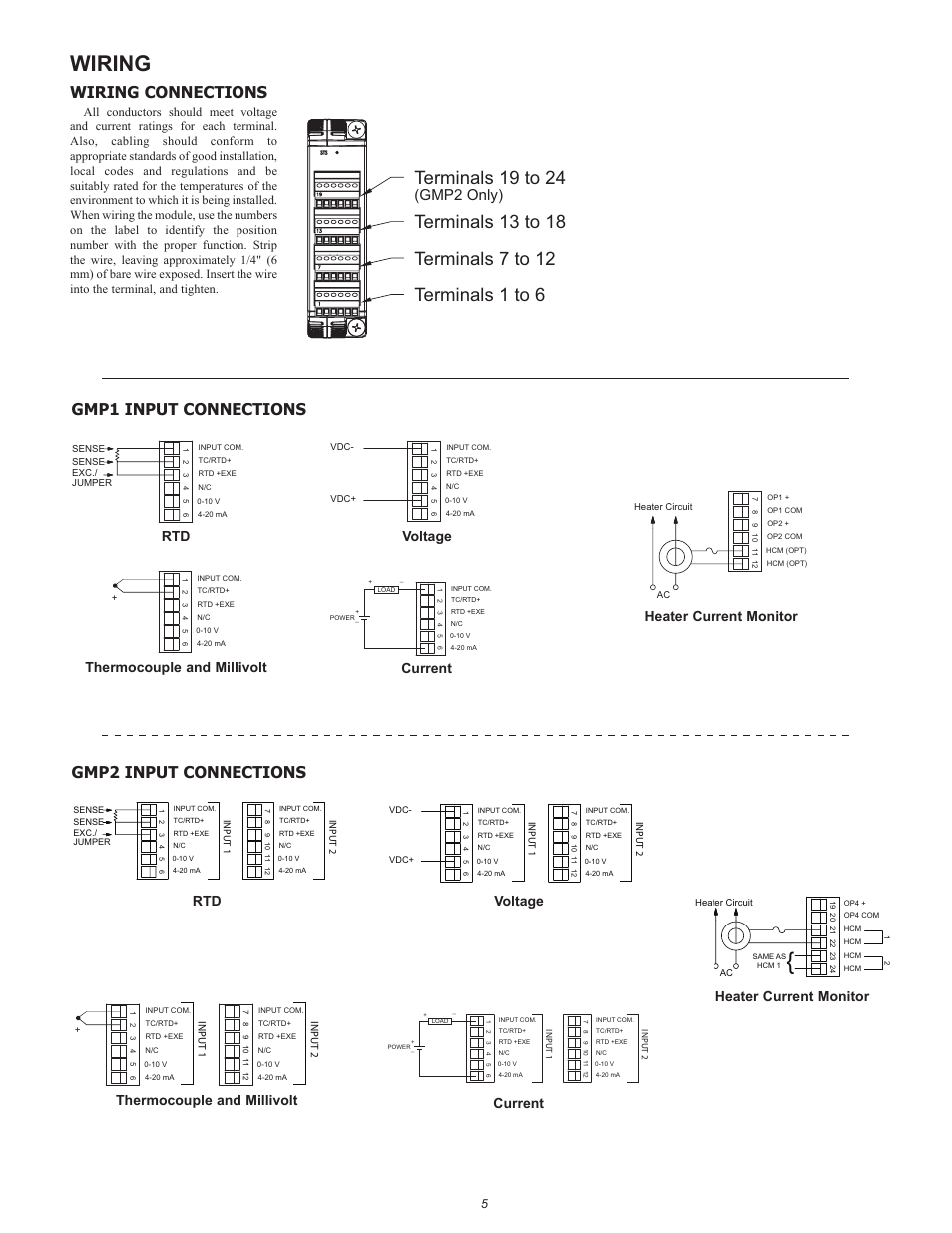

Page 5: Gmp2 input connections, Gmp2 only), Rtd heater current monitor voltage, Current thermocouple and millivolt
