Limitations for output signals – Vaisala WMT700 User Manual

Page 40

Text mode
Original mode

TECHNICAL REFERENCE___________________________________________________________

38 __________________________________________________________________ M211097EN-C

0212-040

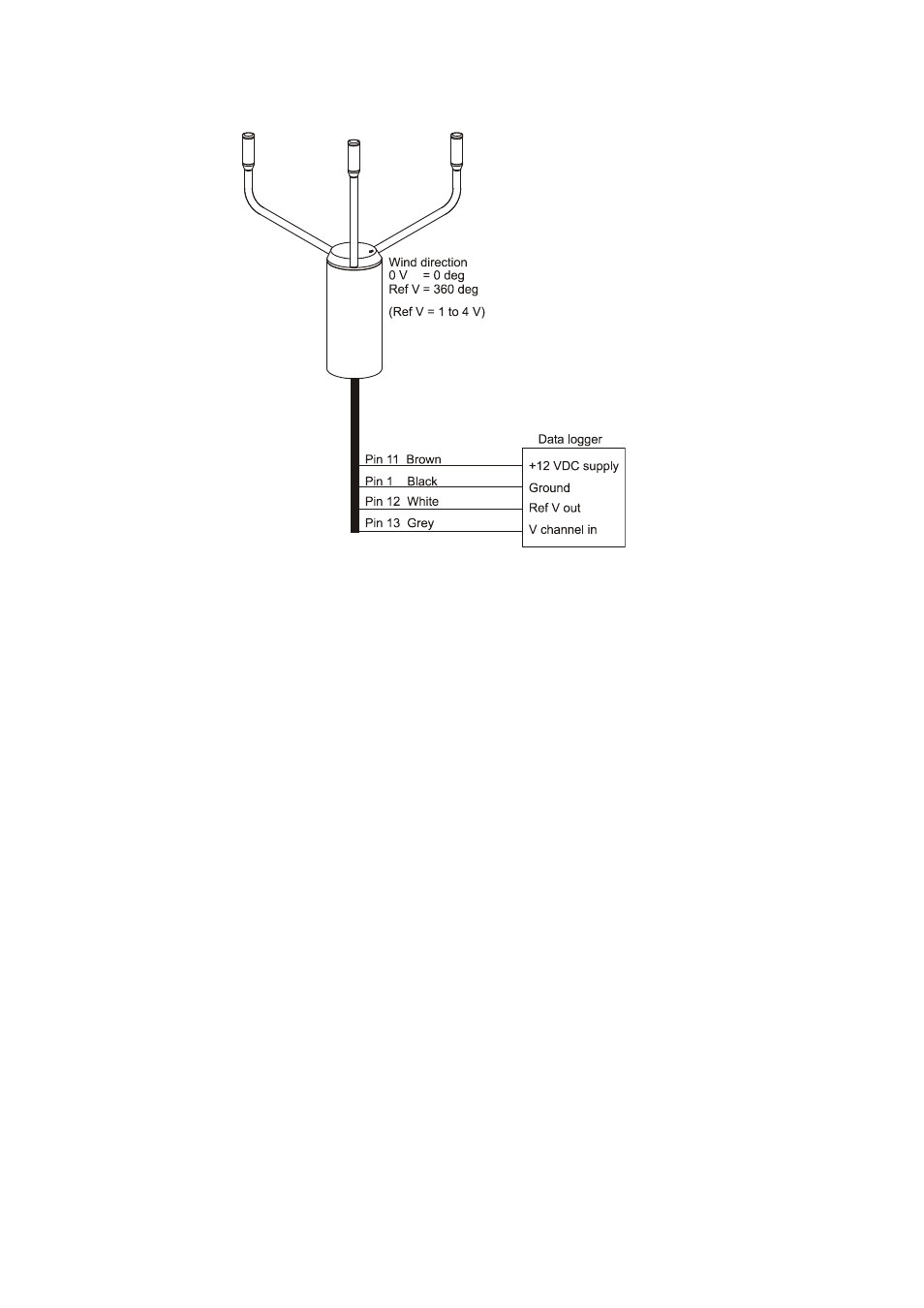

Figure 12

Wind Direction Voltage Output with WS425 Cable and
Adapter Cable

Limitations for Output Signals

You can specify the minimum and maximum values for analog output
with the configuration parameters. The output is fixed to the specified
values, and the unit depends on the selected analog output mode.

Example

To limit the output 1 in voltage mode to a range of 0.1 … 5 V, set the
analog output minimum value to 0.1 and the analog output maximum
value to 5. Enter the following commands:

S aout1minv,0.1

S aout1maxv,5

For information on the parameters, refer to Vaisala WINDCAP

Ultrasonic Wind Sensor Series WMT700 User's Guide.
