Chapter 3 _________________________________________________________ Retrofit Installation
VAISALA _______________________________________________________________________ 19
1104-083

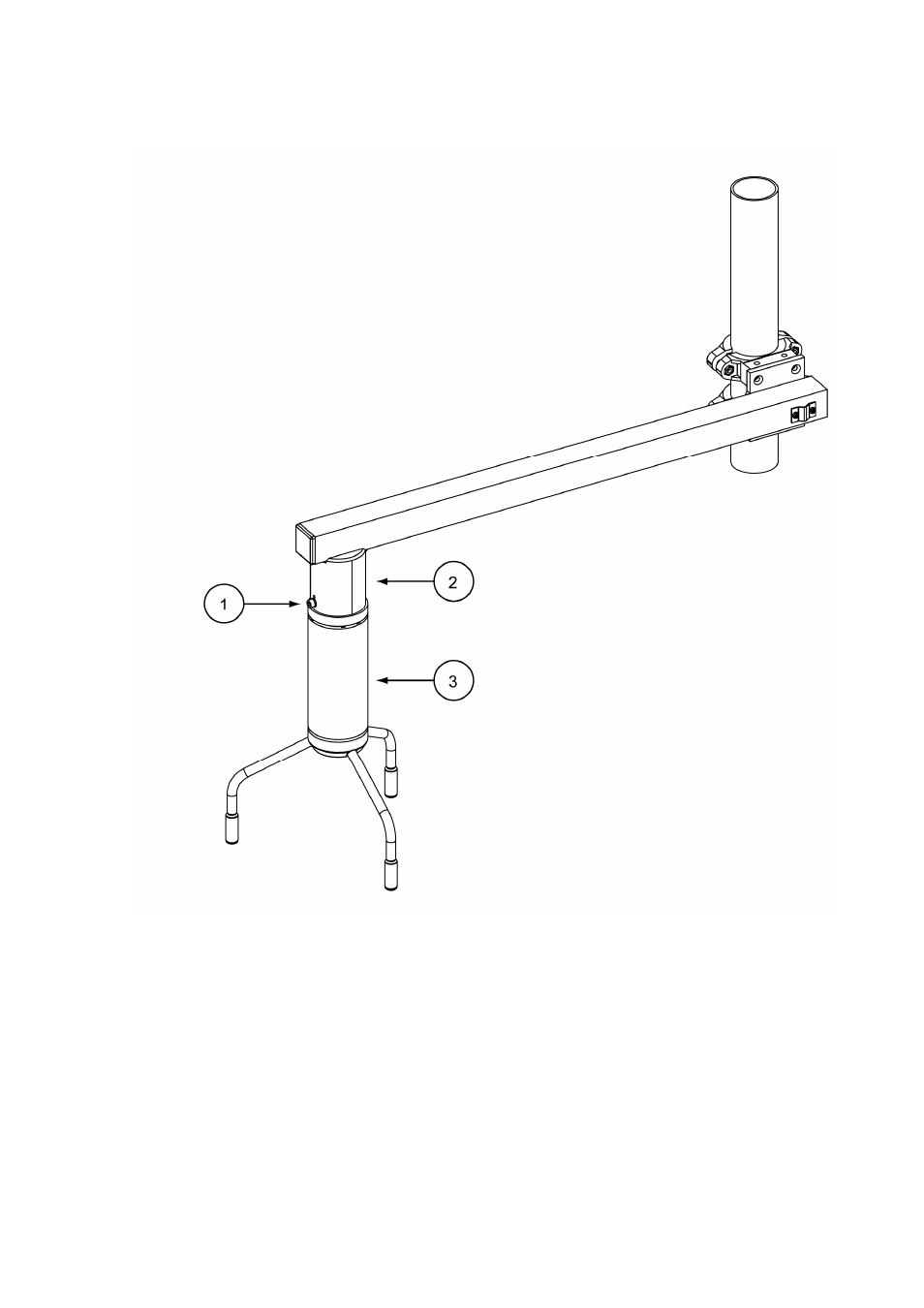

Figure 5
WMT700 Retrofit Installation to Cross Arm with
Array Facing Down
The following numbers refer to Figure 5 above:
1 =
Mounting adapter for FIX30/60
2 =
WS425 cross arm
3 =
WMT700 wind sensor
