Chapter 2 __________________________________________________________ Product Overview

VAISALA _______________________________________________________________________ 15

Front Panels

Figure 1

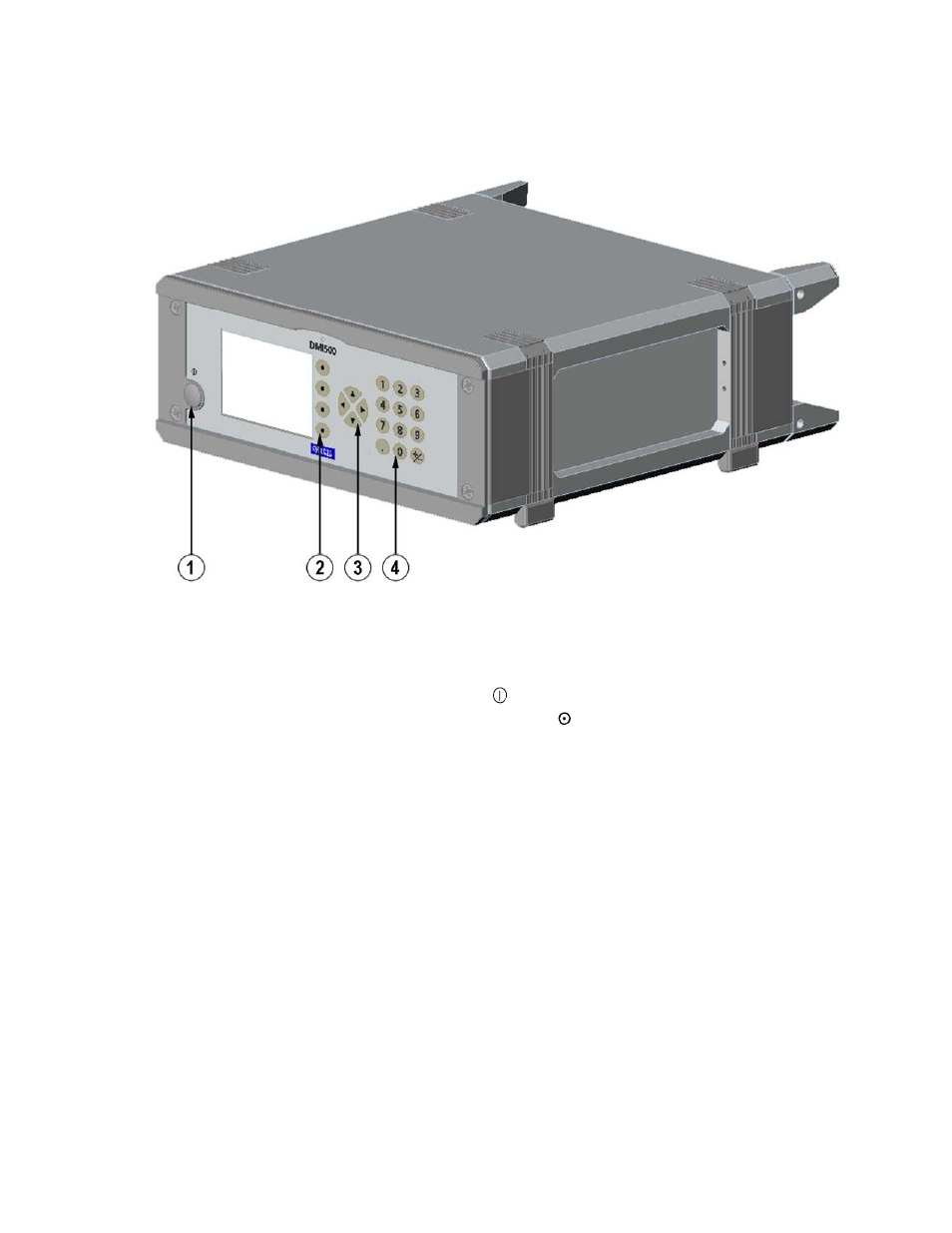

DMI500 User Interface Unit Front Panel

The following numbers refer to Figure 1 above:

Mains switch . Press to turn the device on/off.

Configurable softkeys . Press down to activate the menu
function shown beside the button.

Arrow keypad ►. Press any of the arrow buttons to open
path for the menus. In the menus, you can navigate with
arrow buttons. Up and down arrows for moving in the menu,
right-pointing arrow for selecting menu item, left-pointing
arrow for returning to previous menu.

Numeric keypad. Numerical input can be given with the
number keypad.
