Figure 25, Location of locking tab, Figure 26 – Vaisala HMDW80 User Manual
Page 40: Removing the radiation shield
User's Guide _______________________________________________________________________
38 ___________________________________________________________________ M211510EN-C
5.

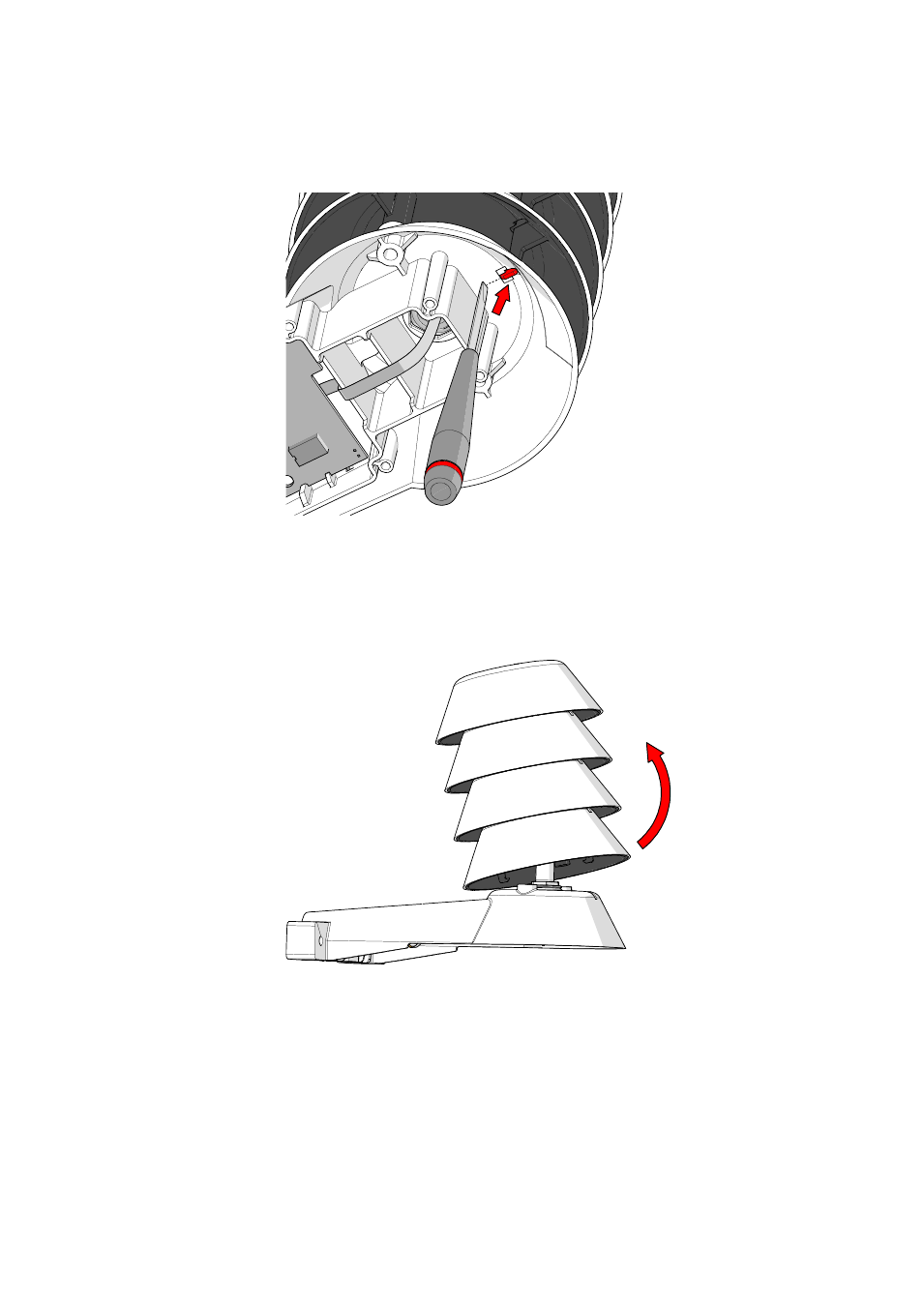

Use a flat head screwdriver to push on the visible plastic tab below
the radiation shield.
1305-022
Figure 25
Location of Locking Tab
6.
Tilt the radiation shield away from the opened tab. This opens the
second tab on the other side, allowing you to remove the radiation
shield.
1305-023
Figure 26
Removing the Radiation Shield
