Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 29

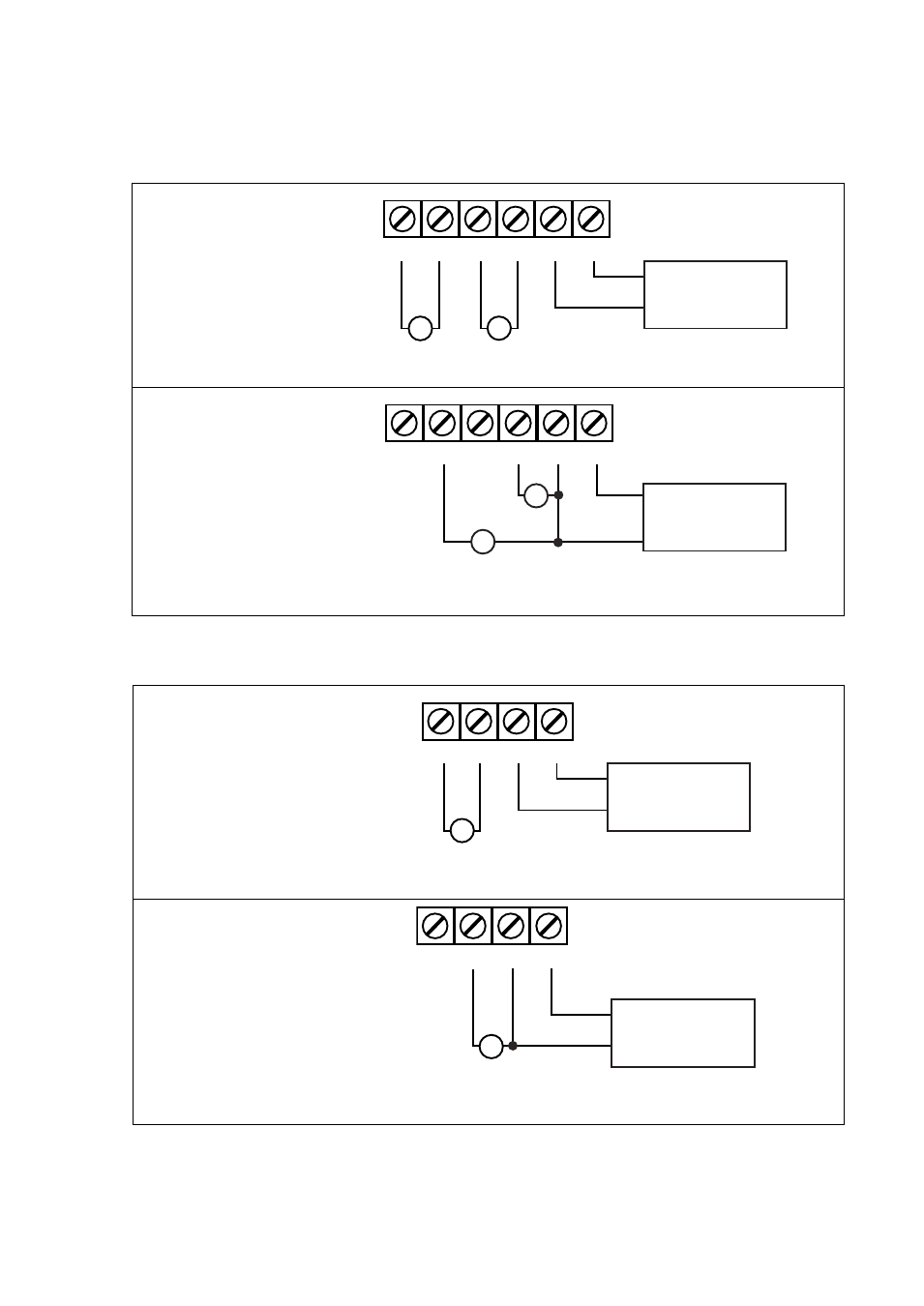

HMW83
Two 0 ... 10 V outputs,
temperature output
scaling -5 ... +55 °C
(+23 ... +131 °F).
This is the
recommended wiring
for long cables.
3-wire connection with -
VS as common ground.
Not recommended if
cable resistance is more
than 2.5 Ω.
TMW83
One 0 ... 10 V output,
scaling -5 ... +55 °C
(+23 ... +131 °F).
This is the
recommended wiring
for long cables.
3-wire connection with
-VS as common ground.
Not recommended if
cable resistance is more
than 2.5 Ω.
-T -VS +T +VS -RH +RH
+
-
18
...
35 VDC
or 24 VAC
RL = min. 10 kΩ
V V
-T -VS +T +VS -RH +RH
+
-
18
...
35 VDC
or 24 VAC
V
V
RL = min. 10 kΩ
-T -VS +T +VS
+
-
18
...
35 VDC
or 24 VAC
RL = min. 10 kΩ
V
-T -VS +T +VS
RL = min. 10 kΩ
V
+
-
18
...
35 VDC
or 24 VAC
