Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 27

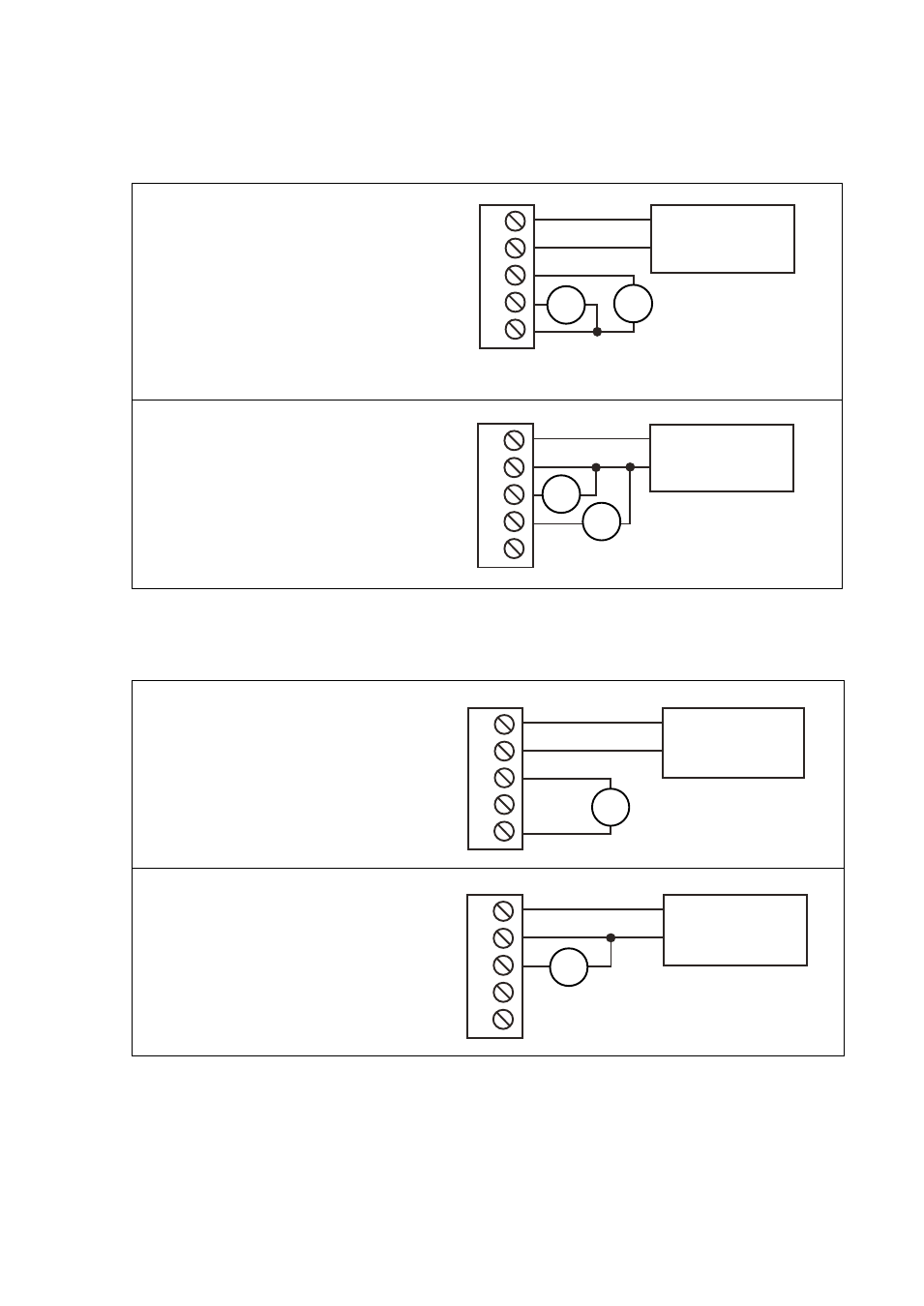

HMD83(D), HMW89(D), and HMS83
Two 0 ... 10 V outputs,
temperature output
scaling -40 ... +60 °C
(-40 ... +140 °F).
Terminals 2 and 5 are
internally connected on
the transmitter, so you
can also use a cable with
four wires.
TMD83
One 0 ... 10 V output,
scaling -40 ... +60 °C
(-40 ... +140 °F).
Terminals 2 and 5 are
internally connected on
the transmitter, so you
can also use a cable with
three wires.
V V
+
-
18
...
35 VDC
or 24 VAC
VDC-/AC
T+
HUM+
VDC+/AC
2
3
4
1
5 T-/HUM-
RL = min. 10 kΩ
V
V
+
-
18
...
35 VDC
or 24 VAC
VDC-/AC
T+
HUM+
VDC+/AC
2
3
4
1
5 T-/HUM-
RL = min. 10 kΩ
+
-
V
VDC-/AC
T+
HUM+
VDC+/AC
2
3
4
1
18
...
35 VDC
or 24 VAC
5 T-/HUM- RL = min. 10 kΩ
+
-
V
VDC-/AC
T+
HUM+
VDC+/AC
2
3
4
1
18
...
35 VDC
or 24 VAC
5 T-/HUM- RL = min. 10 kΩ
