Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 31

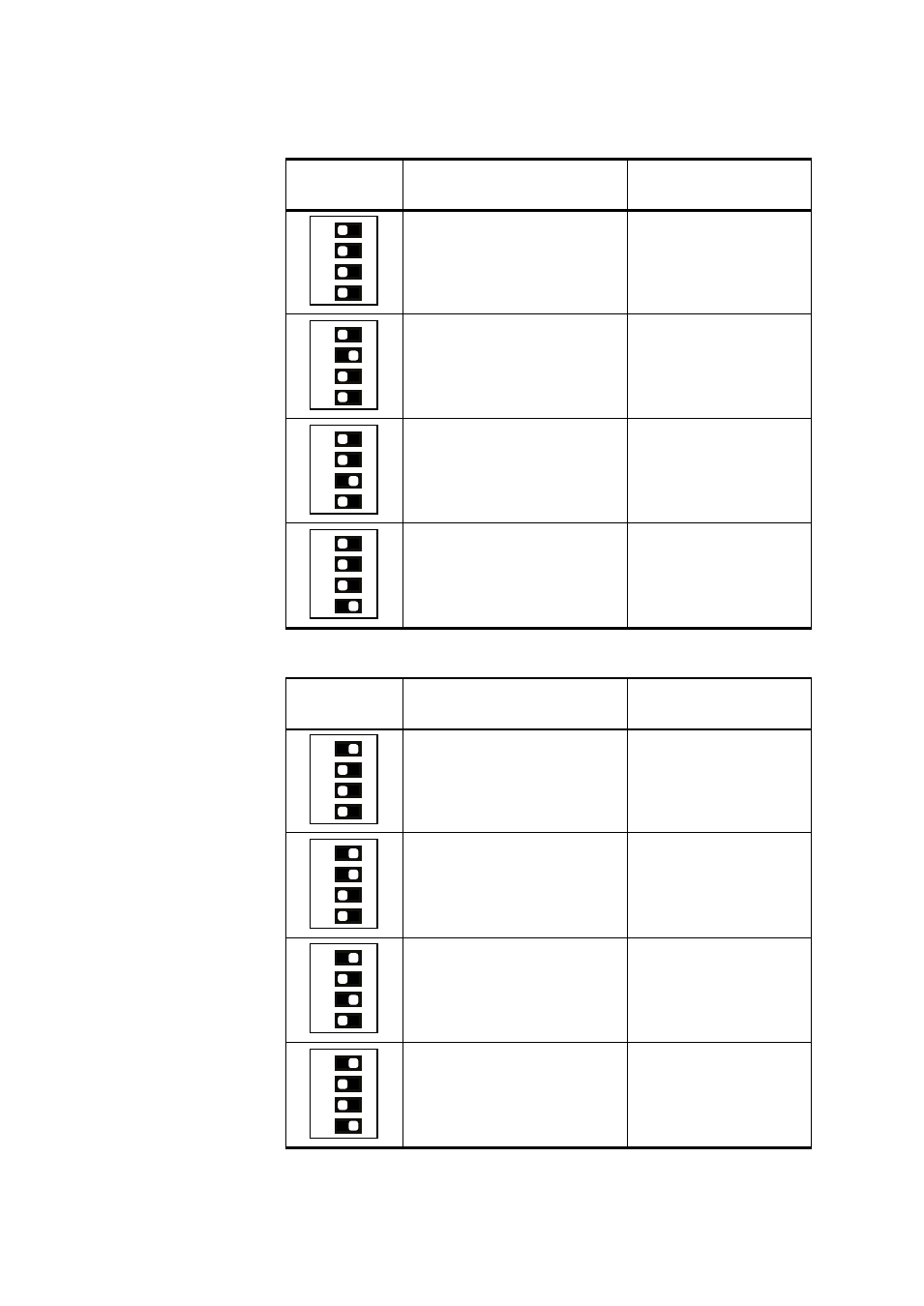

Table 5 DIP Switch Positions for Metric Output
DIP Position Analog Output
Parameter and Scaling
Parameters and Units
on Display
Relative humidity (RH)
0 ... 100 %
Temperature (T)
-40 ... +60 °C
RH (%)
T (°C)
Dewpoint (Td)
-40 ... +60 °C
Temperature (T)
-40 ... +60 °C
Td (°C)
T (°C)
Enthalpy (h)
-40 ... +460 kJ/kg
Temperature (T)
-40 ... +60 °C
h (kJ/kg)
T (°C)
Wet bulb temperature (Tw)
-40 ... +60 °C
Temperature (T)
-40 ... +60 °C
Tw (°C)
T (°C)
Table 6 DIP Switch Positions for Non-Metric Output
DIP Position Analog Output
Parameter and Scaling
Parameters and Units
on Display
Relative humidity (RH)
0 ... 100 %
Temperature (T)
-40 ... +140 °F
RH (%)
T (°F)
Dewpoint (Td)
-40 ... +140 °F
Temperature (T)
-40 ... +140 °F
Td (°F)
T (°F)
Enthalpy (h)
-10 ... +190 BTU/lb
Temperature (T)
-40 ... +140 °F
h (BTU/lb)
T (°F)
Wet bulb temperature (Tw)
-40 ... +140 °F
Temperature (T)
-40 ... +140 °F
Tw (°F)
T (°F)
