Transmitter Parts – Outdoor Models
1304-048

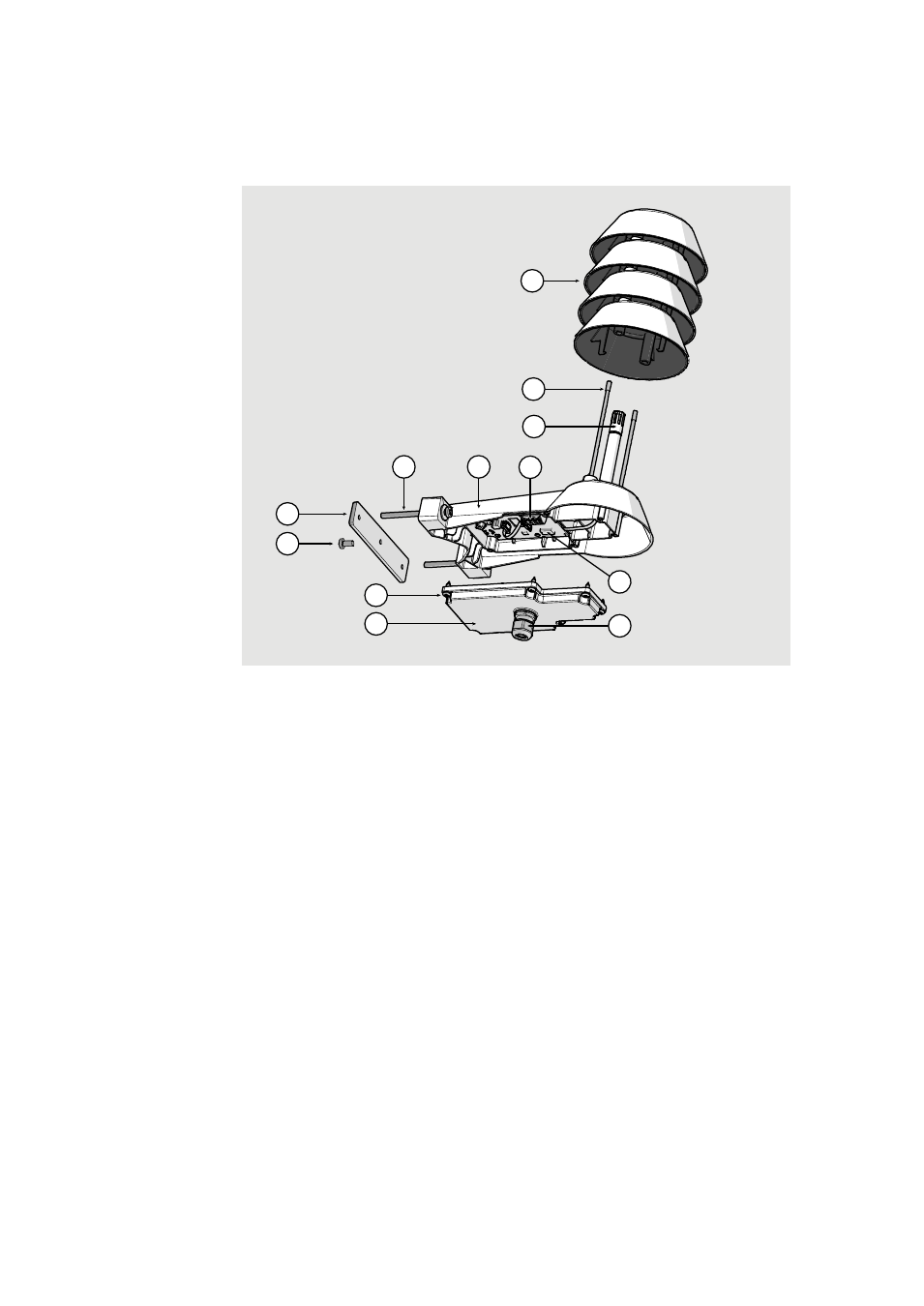

Figure 4 Parts of Outdoor Models (HMS82/83)
1 = Radiation shield. Do not remove for installation, only when
changing sensor or filter.
2 = Long screws that keep the radiation shield in place (2 pcs),
3 mm hex socket.
3 = INTERCAP ® humidity sensor and temperature sensor under
PTFE membrane filter.
4 = Screw terminal. Detachable for easy installation.
5 = Transmitter body.
6 = Screws for pole mounting (2 pcs), medium size crosshead type
(Pozidriv).
7 = Clamp for pole mounting. The holes are threaded for the included
pole mounting screws and set screw.
8 = Set screw, medium size crosshead type (Pozidriv).
Install after pole mounting to stop the transmitter from turning.
9 = Medium size crosshead screws (6 pcs) that hold the transmitter
cover in place.
10 = Transmitter cover.
11 = Cable gland. Suitable for 4 ... 8 mm diameter cable.
12 = Configuration DIP switches. See section DIP Switches on page 30.
1
2
3
7
8
6 5
11
4
12
9
10
