DAVIS Protected Junction Box User Manual
Page 5

Mounting the Protected Junction Box
Page 5

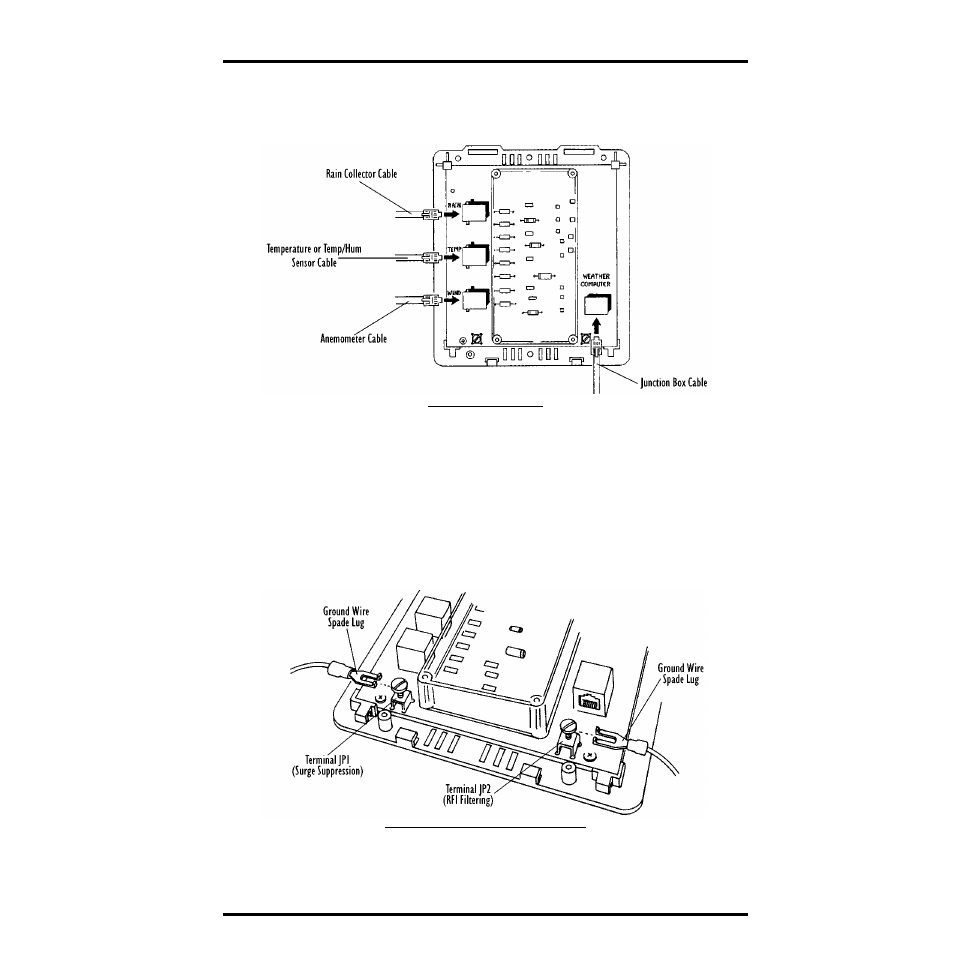

7. Insert the junction box cable into the connector marked WEATHER COMPUTER.
The length of cable between the station console and the Protected Junction
Box may be a maximum of 200' (60 m).
C
ONNECTING
THE
C
ABLES
8. If you want to use the Protected Junction Box’s surge suppression capabilities, loosen
the screw in terminal JP1 (the lower left of the circuit board).
See “Surge Protection” on page 7 for more information.
9. Place the spade lug at the end of the ground wire under the screw head.
10. Secure the ground wire by re-tightening the screw in terminal JP1.
11. If you want to use the Protected Junction Box’s RFI protection, repeat steps 8-10 using
the other ground wire and terminal JP2 (the lower right of the circuit board).
See “RFI Filtering” on page 8 for more information.
G
ROUNDING
THE
P
ROTECTED
J
UNCTION
B
OX
