Mounting the Protected Junction Box
Page 3
M
OUNTING
THE
P
ROTECTED
J
UNCTION
B
OX
You may mount the Protected Junction Box against a wall or other vertical sur-
face or you may simply set it down on a horizontal surface.

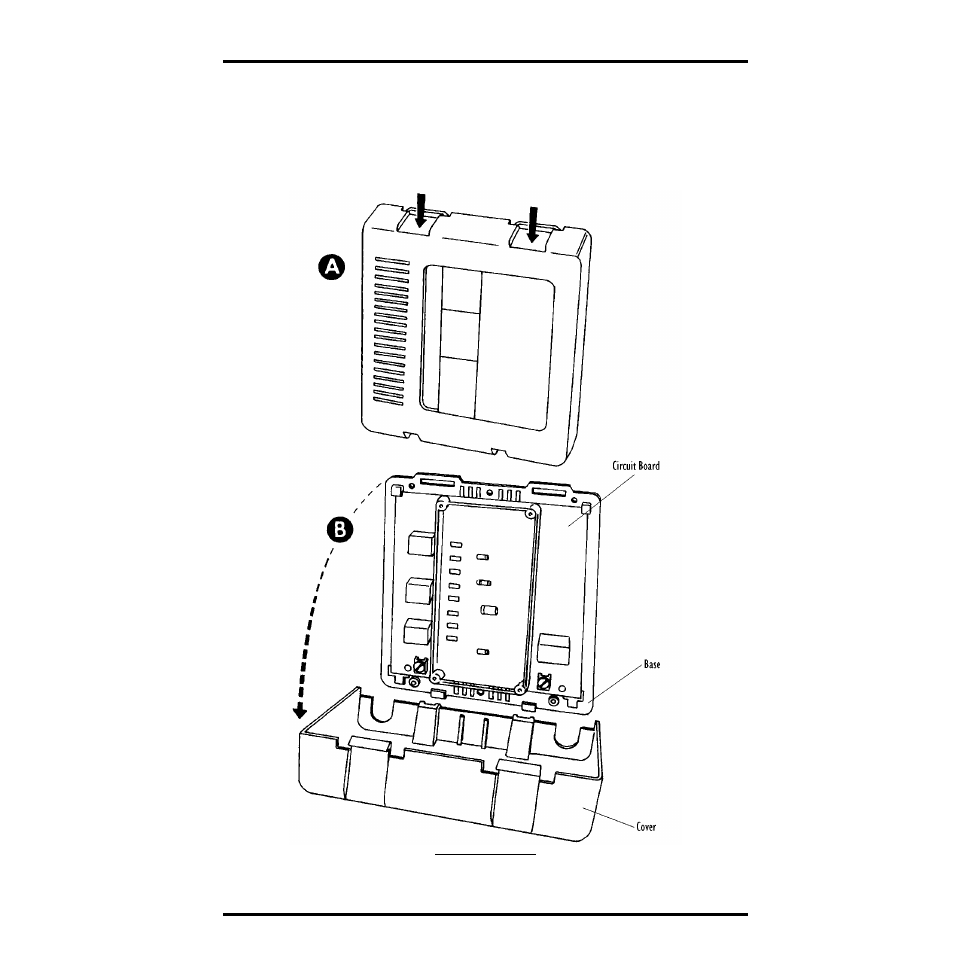

1. Remove the cover from the Protected Junction Box by pushing down on the tabs at the
top until you can remove the tabs from the slots.
R
EMOVING
THE
C
OVER
